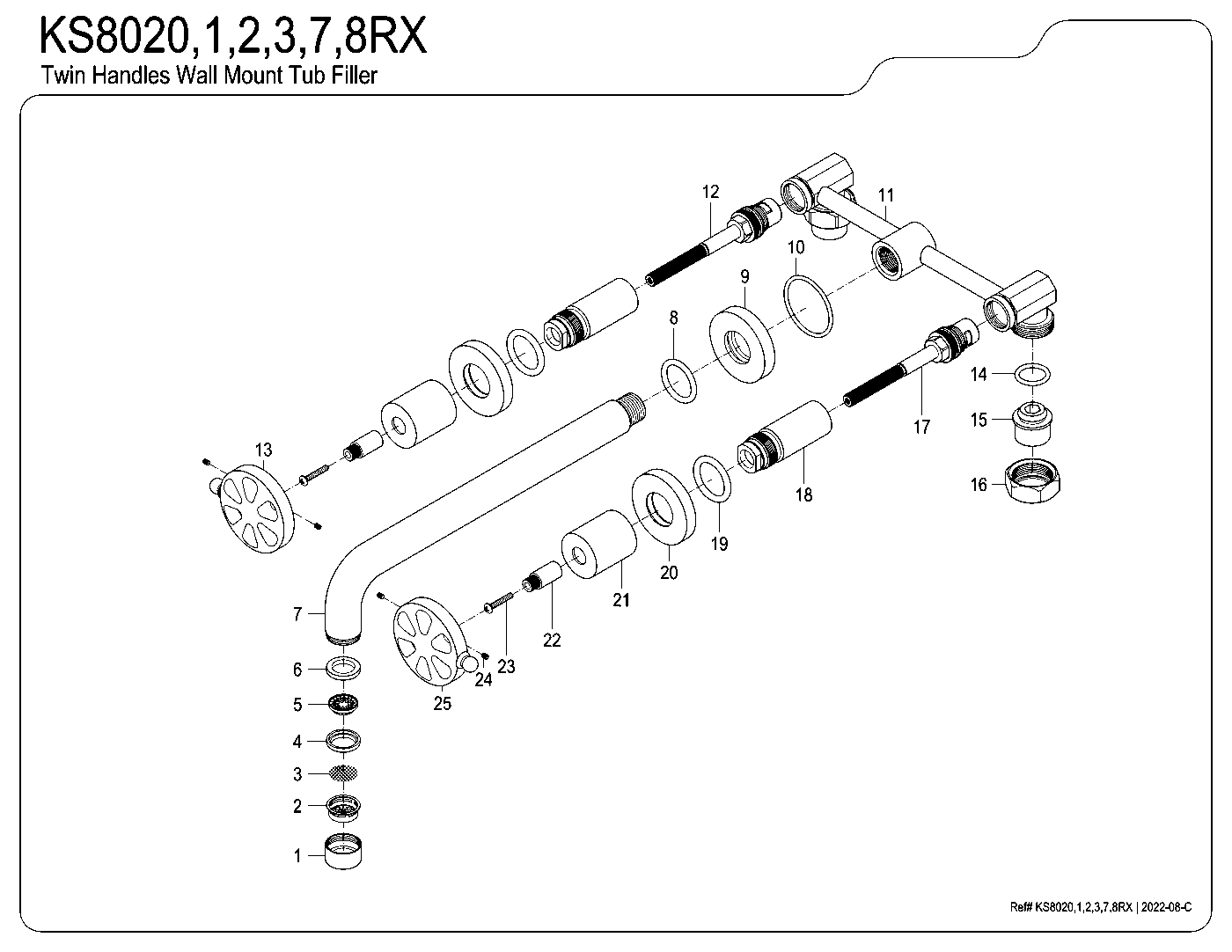

Belknap KS8020RX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramBelknap KS8020RX parts questions
Which Kingston Brass models does this Belknap parts diagram cover?
KS8020RX, KS8021RX, KS8022RX, KS8023RX, KS8027RX, KS8028RX. They are the same two-handle 3-hole wall mount roman tub faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS8020RX come in?
Matte Black (KS8020RX), Polished Chrome (KS8021RX), Polished Brass (KS8022RX), Antique Brass (KS8023RX), Brushed Brass (KS8027RX), Brushed Nickel (KS8028RX).
What replacement handles fit the KS8020RX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS802xRX diagram?
Kingston numbers the parts on this diagram (24 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Belknap KS802xRX in every finish
Belknap KS8020RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Matte Black$461.47Matte Black
Belknap KS8021RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Chrome$376.97Polished Chrome
Belknap KS8022RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Brass$461.47Polished Brass
Belknap KS8023RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Antique Brass$461.47Antique Brass
Belknap KS8027RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Brass$461.47Brushed Brass
Belknap KS8028RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Nickel$412.72Brushed Nickel
