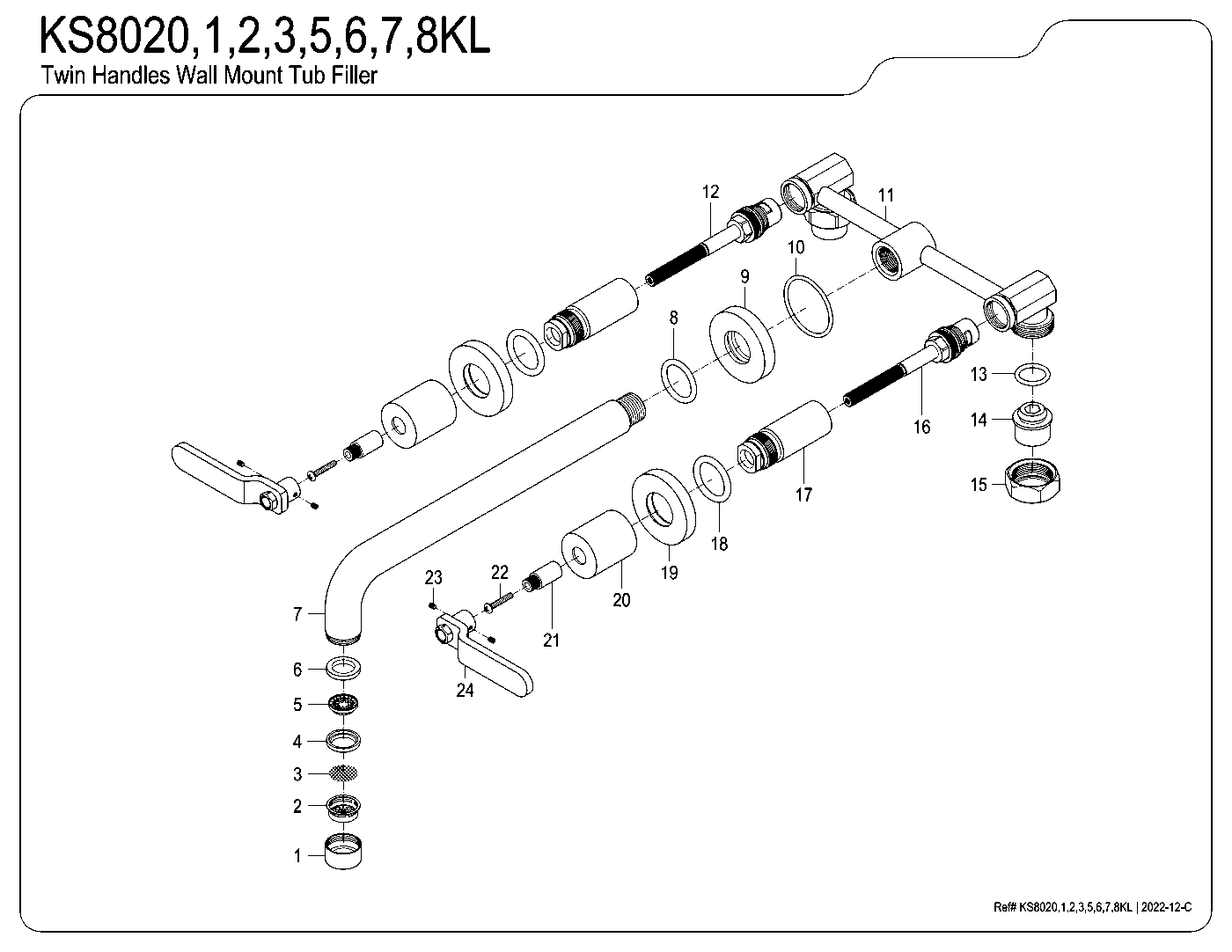

Whitaker KS8020KL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramWhitaker KS8020KL parts questions
Which Kingston Brass models does this Whitaker parts diagram cover?
KS8020KL, KS8021KL, KS8022KL, KS8023KL, KS8025KL, KS8026KL, KS8027KL, KS8028KL. They are the same two-handle 3-hole wall mount roman tub faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS8020KL come in?
Matte Black (KS8020KL), Polished Chrome (KS8021KL), Polished Brass (KS8022KL), Antique Brass (KS8023KL), Oil Rubbed Bronze (KS8025KL), Polished Nickel (KS8026KL), Brushed Brass (KS8027KL), Brushed Nickel (KS8028KL).
What replacement handles fit the KS8020KL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS802xKL diagram?
Kingston numbers the parts on this diagram (24 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Whitaker KS802xKL in every finish
Whitaker KS8020KL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Matte Black$448.47Matte Black
Whitaker KS8021KL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Chrome$360.72Polished Chrome
Whitaker KS8022KL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Brass$448.47Polished Brass
Whitaker KS8023KL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Antique Brass$448.47Antique Brass
Whitaker KS8025KL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Oil Rubbed Bronze$399.72Oil Rubbed Bronze
Whitaker KS8026KL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Nickel$415.97Polished Nickel
Whitaker KS8027KL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Brass$448.47Brushed Brass
Whitaker KS8028KL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Nickel$399.72Brushed Nickel
