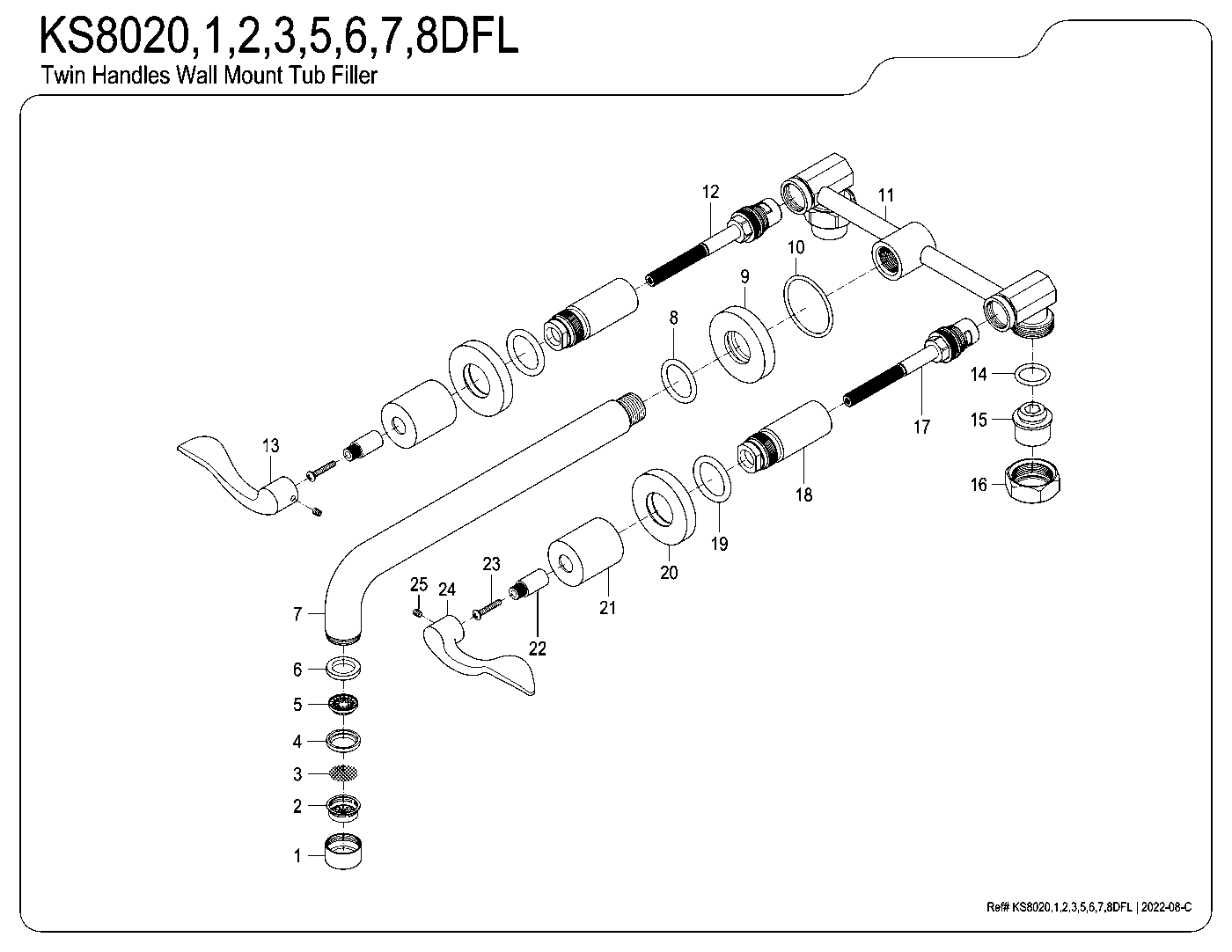

NuWave KS8020DFL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramNuWave KS8020DFL parts questions
Which Kingston Brass models does this NuWave parts diagram cover?
KS8020DFL, KS8021DFL, KS8022DFL, KS8023DFL, KS8025DFL, KS8026DFL, KS8027DFL, KS8028DFL. They are the same two-handle 3-hole wall mount roman tub faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS8020DFL come in?
Matte Black (KS8020DFL), Polished Chrome (KS8021DFL), Polished Brass (KS8022DFL), Antique Brass (KS8023DFL), Oil Rubbed Bronze (KS8025DFL), Polished Nickel (KS8026DFL), Brushed Brass (KS8027DFL), Brushed Nickel (KS8028DFL).
What replacement handles fit the KS8020DFL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS802xDFL diagram?
Kingston numbers the parts on this diagram (24 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
NuWave KS802xDFL in every finish
NuWave KS8020DFL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Matte Black$412.72Matte Black
NuWave KS8021DFL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Chrome$331.47Polished Chrome
NuWave KS8022DFL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Brass$412.72Polished Brass
NuWave KS8023DFL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Antique Brass$412.72Antique Brass
NuWave KS8025DFL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Oil Rubbed Bronze$376.97Oil Rubbed Bronze
NuWave KS8026DFL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Nickel$412.72Polished Nickel
NuWave KS8027DFL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Brass$412.72Brushed Brass
NuWave KS8028DFL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Nickel$376.97Brushed Nickel
