Kingston Brass Kingston Brass KS7801TPLBS parts
Templeton Single-Handle Widespread Kitchen Faucet with Brass Sprayer. One parts diagram covers all 3 finishes of this model.
Model numbers: KS7801TPLBSKS7805TPLBSKS7808TPLBS

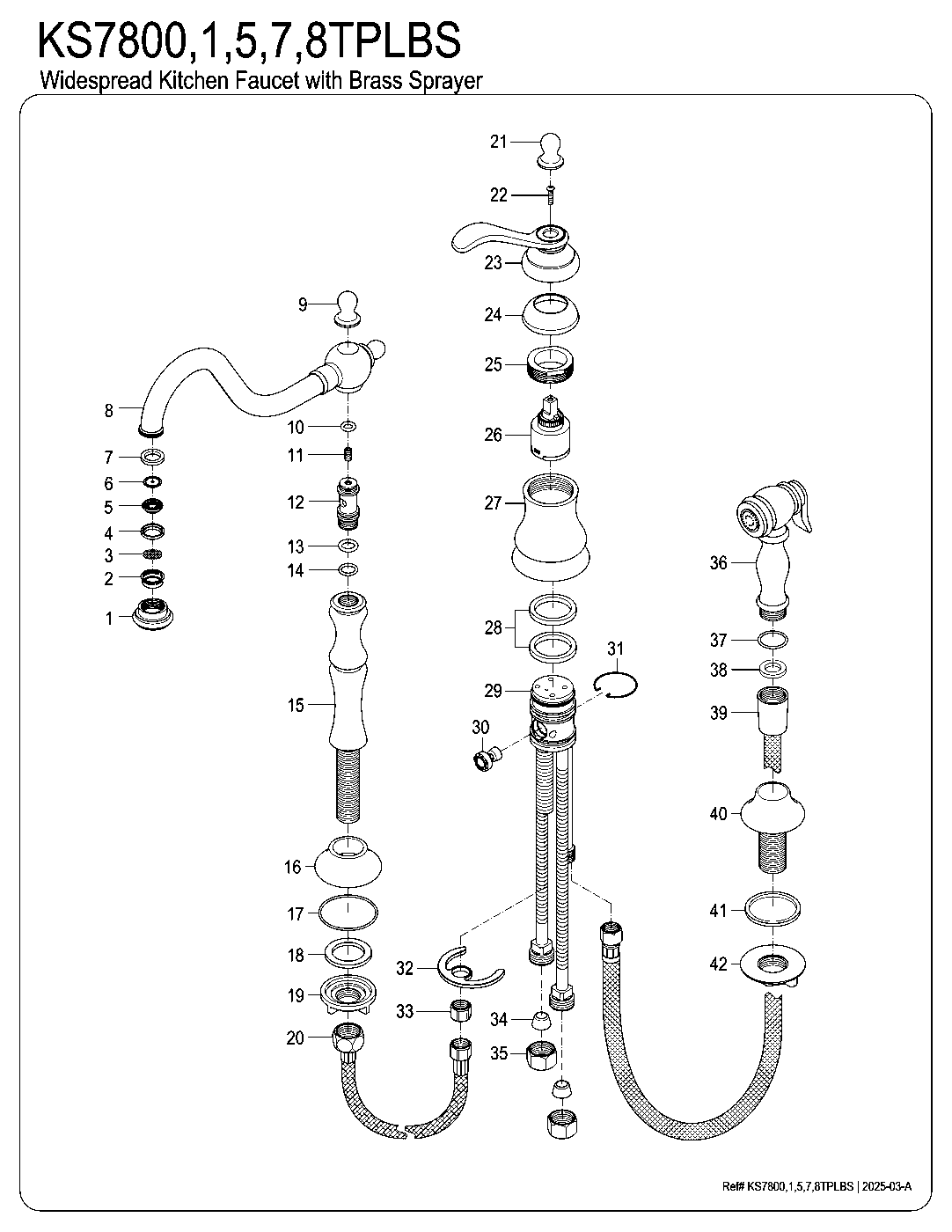

Kingston Brass KS7801TPLBS exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS7801TPLBS parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS7801TPLBS, KS7805TPLBS, KS7808TPLBS. They are the same templeton single-handle widespread kitchen faucet with brass sprayer in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS7801TPLBS come in?
Polished Chrome (KS7801TPLBS), Oil Rubbed Bronze (KS7805TPLBS), Brushed Nickel (KS7808TPLBS).
What replacement handles fit the KS7801TPLBS?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS780xTPLBS diagram?
Kingston numbers the parts on this diagram (40 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS780xTPLBS in every finish
Kingston Brass KS7801TPLBS Templeton Single-Handle Widespread Kitchen Faucet with Brass Sprayer, Polished Chrome$412.72Polished Chrome
Kingston Brass KS7805TPLBS Templeton Single-Handle Widespread Kitchen Faucet with Brass Sprayer, Oil Rubbed Bronze$461.47Oil Rubbed Bronze
Kingston Brass KS7808TPLBS Templeton Single-Handle Widespread Kitchen Faucet with Brass Sprayer, Brushed Nickel$461.47Brushed Nickel
