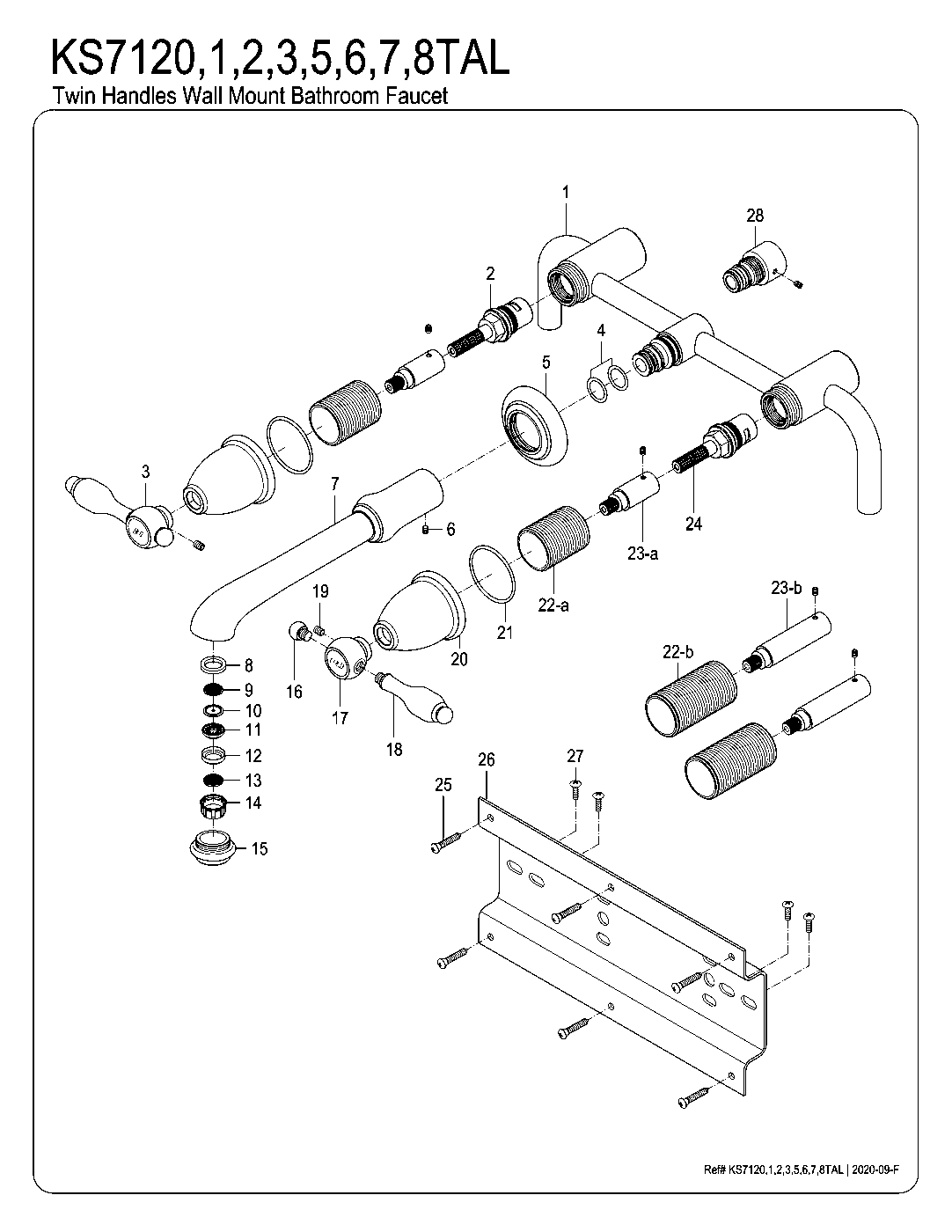

Tudor KS7120TAL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramTudor KS7120TAL parts questions
Which Kingston Brass models does this Tudor parts diagram cover?
KS7120TAL, KS7121TAL, KS7122TAL, KS7123TAL, KS7125TAL, KS7126TAL, KS7127TAL, KS7128TAL. They are the same two-handle 3-hole wall mount bathroom faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS7120TAL come in?
Matte Black (KS7120TAL), Polished Chrome (KS7121TAL), Polished Brass (KS7122TAL), Antique Brass (KS7123TAL), Oil Rubbed Bronze (KS7125TAL), Polished Nickel (KS7126TAL), Brushed Brass (KS7127TAL), Brushed Nickel (KS7128TAL).
What replacement handles fit the KS7120TAL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS712xTAL diagram?
Kingston numbers the parts on this diagram (21 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Tudor KS712xTAL in every finish
Tudor KS7120TAL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Matte Black$406.22Matte Black
Tudor KS7121TAL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Chrome$324.97Polished Chrome
Tudor KS7122TAL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Brass$383.47Polished Brass
Tudor KS7123TAL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Antique Brass$406.22Antique Brass
Tudor KS7125TAL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Oil Rubbed Bronze$376.97Oil Rubbed Bronze
Tudor KS7126TAL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Nickel$406.22Polished Nickel
Tudor KS7127TAL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Brushed Brass$406.22Brushed Brass
Tudor KS7128TAL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Brushed Nickel$376.97Brushed Nickel
