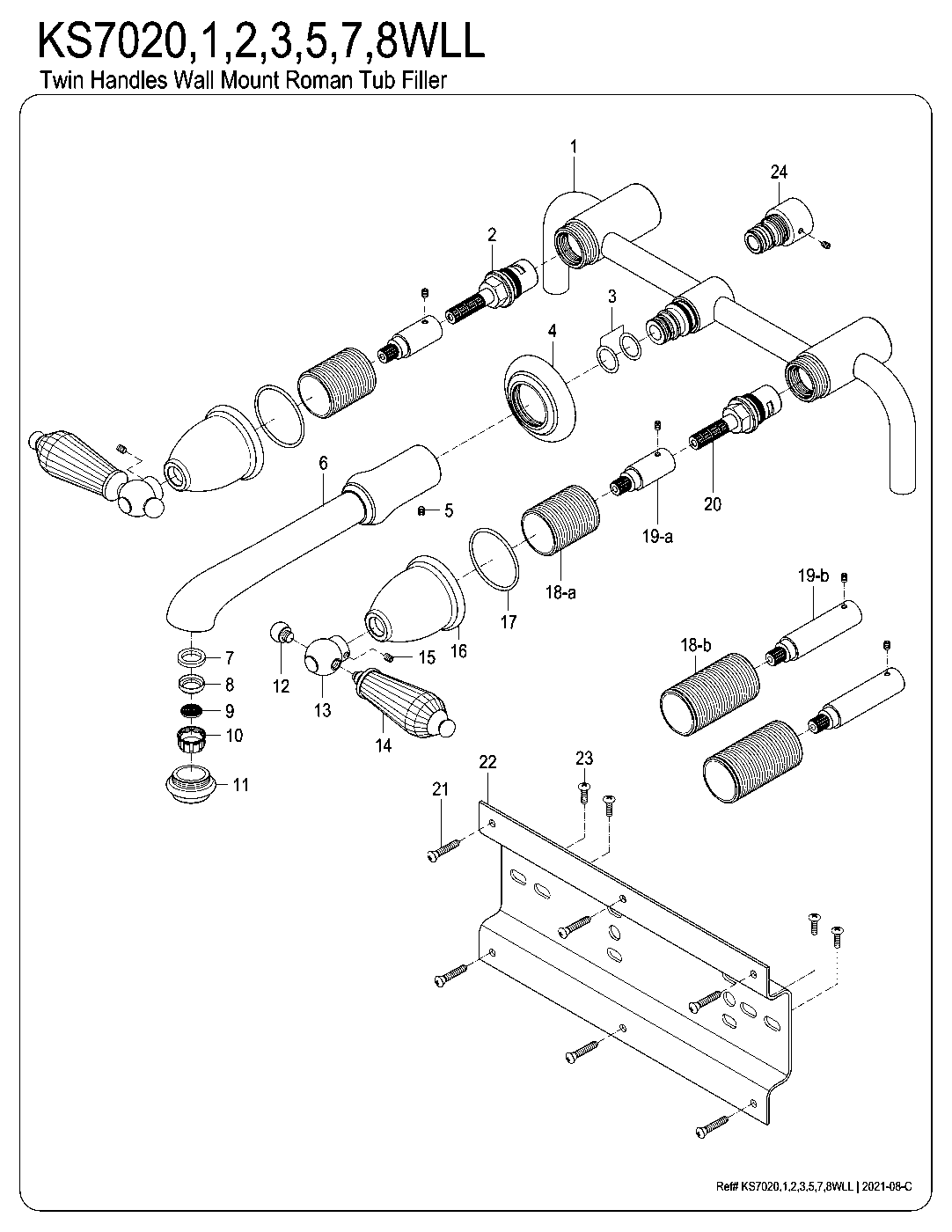

Wilshire KS7020WLL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramWilshire KS7020WLL parts questions
Which Kingston Brass models does this Wilshire parts diagram cover?
KS7020WLL, KS7021WLL, KS7022WLL, KS7023WLL, KS7025WLL, KS7027WLL, KS7028WLL. They are the same two-handle 3-hole wall mount roman tub faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS7020WLL come in?
Matte Black (KS7020WLL), Polished Chrome (KS7021WLL), Polished Brass (KS7022WLL), Antique Brass (KS7023WLL), Oil Rubbed Bronze (KS7025WLL), Brushed Brass (KS7027WLL), Brushed Nickel (KS7028WLL).
What replacement handles fit the KS7020WLL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS702xWLL diagram?
Kingston numbers the parts on this diagram (18 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Wilshire KS702xWLL in every finish
Wilshire KS7020WLL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Matte Black$493.97Matte Black
Wilshire KS7021WLL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Chrome$334.72Polished Chrome
Wilshire KS7022WLL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Brass$380.22Polished Brass
Wilshire KS7023WLL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Antique Brass$493.97Antique Brass
Wilshire KS7025WLL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Oil Rubbed Bronze$376.97Oil Rubbed Bronze
Wilshire KS7027WLL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Brass$493.97Brushed Brass
Wilshire KS7028WLL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Nickel$376.97Brushed Nickel
