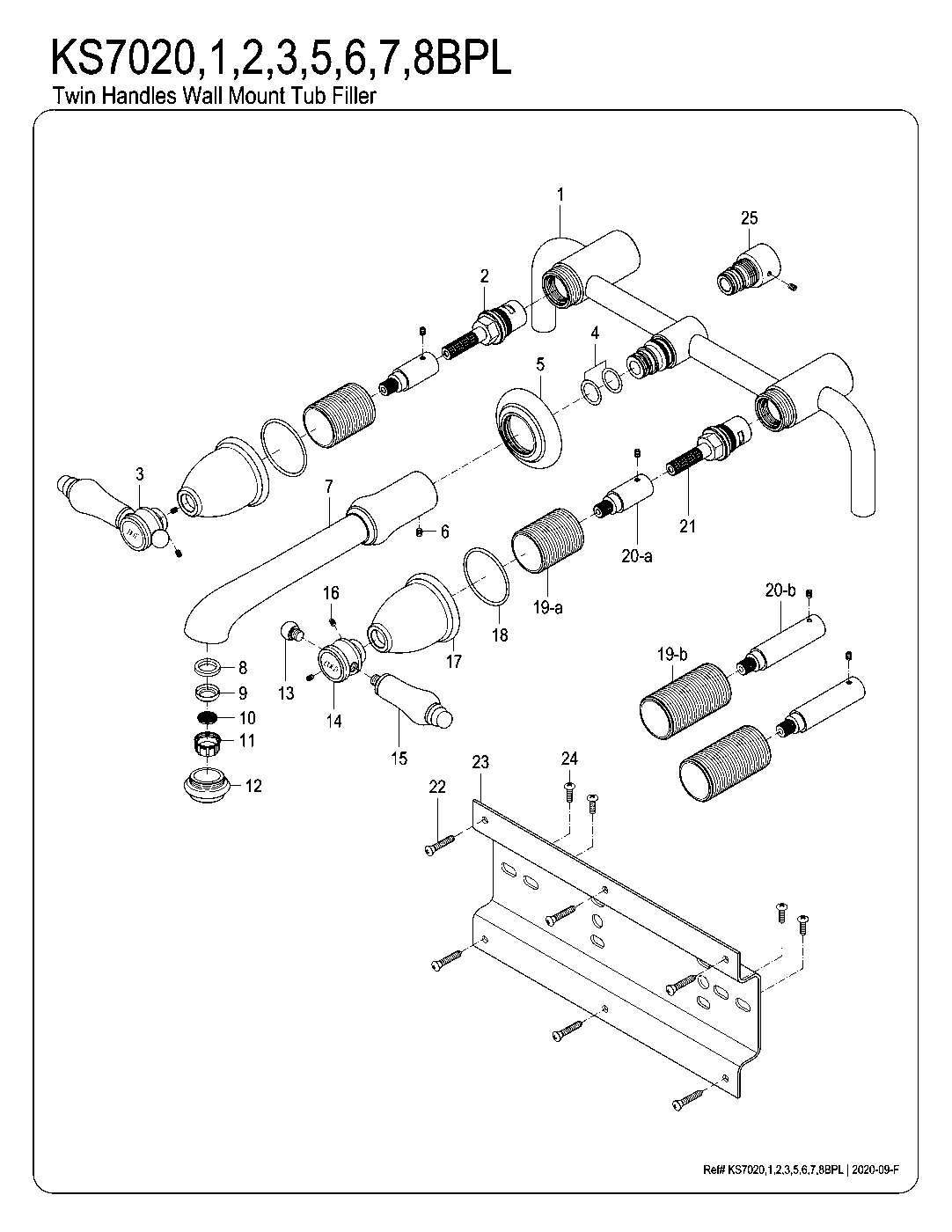

Bel-Air KS7020BPL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramBel-Air KS7020BPL parts questions
Which Kingston Brass models does this Bel-Air parts diagram cover?
KS7020BPL, KS7021BPL, KS7022BPL, KS7023BPL, KS7025BPL, KS7026BPL, KS7027BPL, KS7028BPL. They are the same two-handle 3-hole wall mount roman tub faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS7020BPL come in?
Matte Black (KS7020BPL), Polished Chrome (KS7021BPL), Polished Brass (KS7022BPL), Antique Brass (KS7023BPL), Oil Rubbed Bronze (KS7025BPL), Polished Nickel (KS7026BPL), Brushed Brass (KS7027BPL), Brushed Nickel (KS7028BPL).
What replacement handles fit the KS7020BPL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS702xBPL diagram?
Kingston numbers the parts on this diagram (21 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Bel-Air KS702xBPL in every finish
Bel-Air KS7020BPL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Matte Black$406.22Matte Black
Bel-Air KS7021BPL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Chrome$324.97Polished Chrome
Bel-Air KS7022BPL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Brass$383.47Polished Brass
Bel-Air KS7023BPL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Antique Brass$383.47Antique Brass
Bel-Air KS7025BPL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Oil Rubbed Bronze$376.97Oil Rubbed Bronze
Bel-Air KS7026BPL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Nickel$406.22Polished Nickel
Bel-Air KS7027BPL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Brass$406.22Brushed Brass
Bel-Air KS7028BPL Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Nickel$376.97Brushed Nickel
