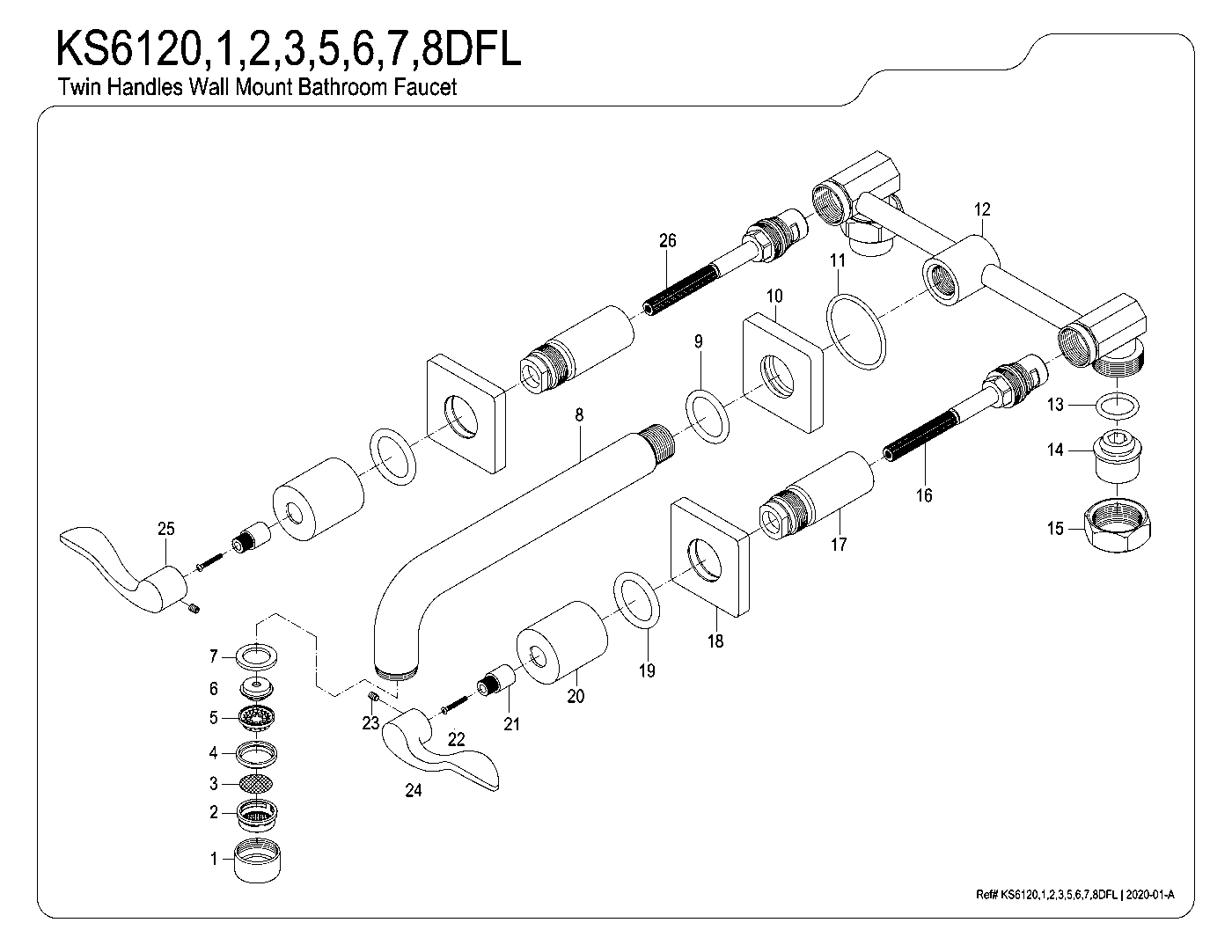

NuWave KS6120DFL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramNuWave KS6120DFL parts questions
Which Kingston Brass models does this NuWave parts diagram cover?
KS6120DFL, KS6121DFL, KS6122DFL, KS6123DFL, KS6125DFL, KS6126DFL, KS6127DFL, KS6128DFL. They are the same two-handle 3-hole wall mount bathroom faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS6120DFL come in?
Matte Black (KS6120DFL), Polished Chrome (KS6121DFL), Polished Brass (KS6122DFL), Antique Brass (KS6123DFL), Oil Rubbed Bronze (KS6125DFL), Polished Nickel (KS6126DFL), Brushed Brass (KS6127DFL), Brushed Nickel (KS6128DFL).
What replacement handles fit the KS6120DFL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS612xDFL diagram?
Kingston numbers the parts on this diagram (25 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
NuWave KS612xDFL in every finish
NuWave KS6120DFL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Matte Black$389.97Matte Black
NuWave KS6121DFL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Chrome$305.47Polished Chrome
NuWave KS6122DFL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Brass$389.97Polished Brass
NuWave KS6123DFL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Antique Brass$389.97Antique Brass
NuWave KS6125DFL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Oil Rubbed Bronze$347.72Oil Rubbed Bronze
NuWave KS6126DFL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Nickel$389.97Polished Nickel
NuWave KS6127DFL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Brushed Brass$389.97Brushed Brass
NuWave KS6128DFL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Brushed Nickel$347.72Brushed Nickel
