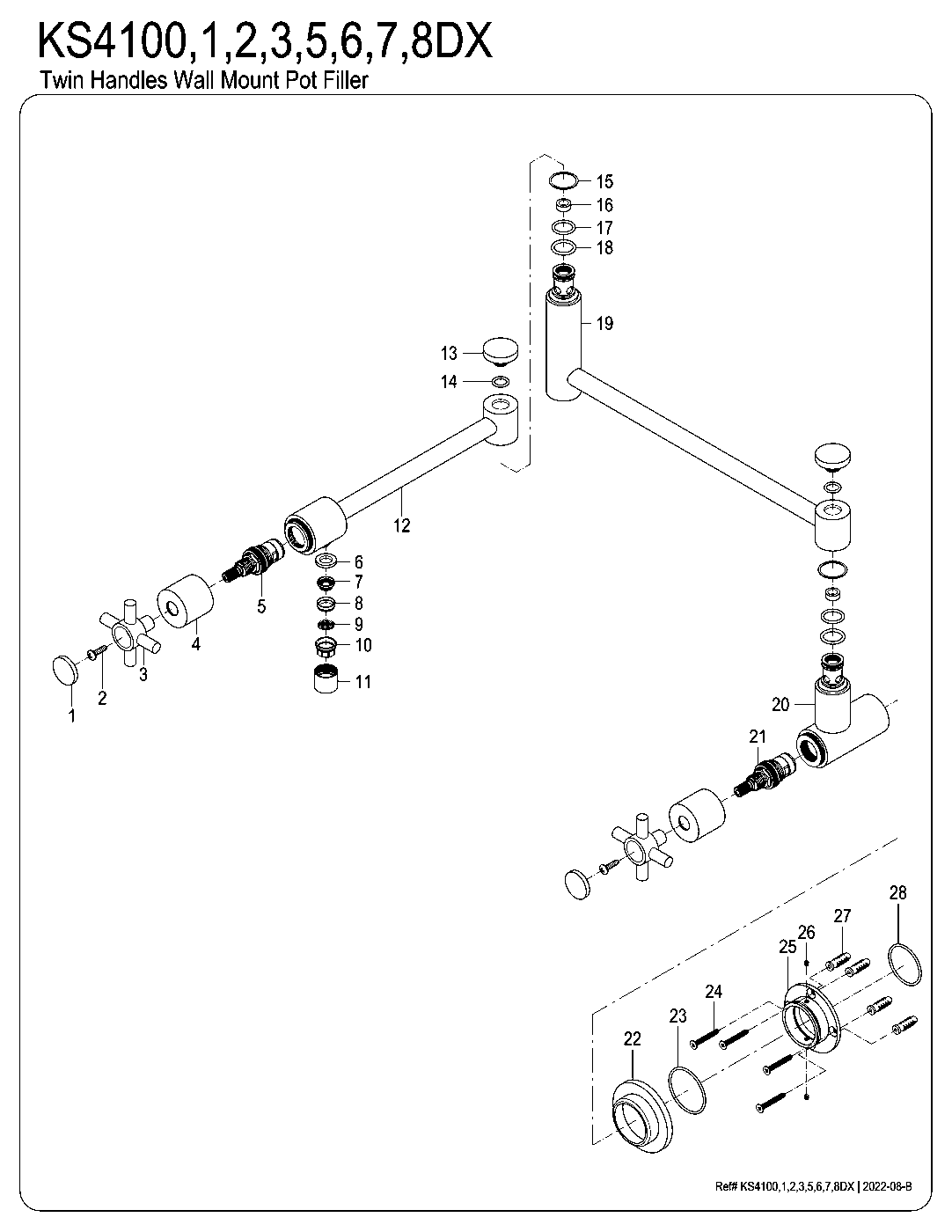

Concord KS4100DX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramConcord KS4100DX parts questions
Which Kingston Brass models does this Concord parts diagram cover?
KS4100DX, KS4101DX, KS4102DX, KS4103DX, KS4105DX, KS4106DX, KS4107DX, KS4108DX. They are the same pot filler in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS4100DX come in?
Matte Black (KS4100DX), Polished Chrome (KS4101DX), Polished Brass (KS4102DX), Antique Brass (KS4103DX), Oil Rubbed Bronze (KS4105DX), Polished Nickel (KS4106DX), Brushed Brass (KS4107DX), Brushed Nickel (KS4108DX).
What replacement handles fit the KS4100DX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS410xDX diagram?
Kingston numbers the parts on this diagram (27 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Concord KS410xDX in every finish
Concord KS4100DX Pot Filler, Matte Black$487.47Matte Black
Concord KS4101DX Pot Filler, Polished Chrome$402.97Polished Chrome
Concord KS4102DX Pot Filler, Polished Brass$487.47Polished Brass
Concord KS4103DX Pot Filler, Antique Brass$487.47Antique Brass
Concord KS4105DX Pot Filler, Oil Rubbed Bronze$451.72Oil Rubbed Bronze
Concord KS4106DX Pot Filler, Polished Nickel$487.47Polished Nickel
Concord KS4107DX Pot Filler, Brushed Brass$487.47Brushed Brass
Concord KS4108DX Pot Filler, Brushed Nickel$451.72Brushed Nickel
