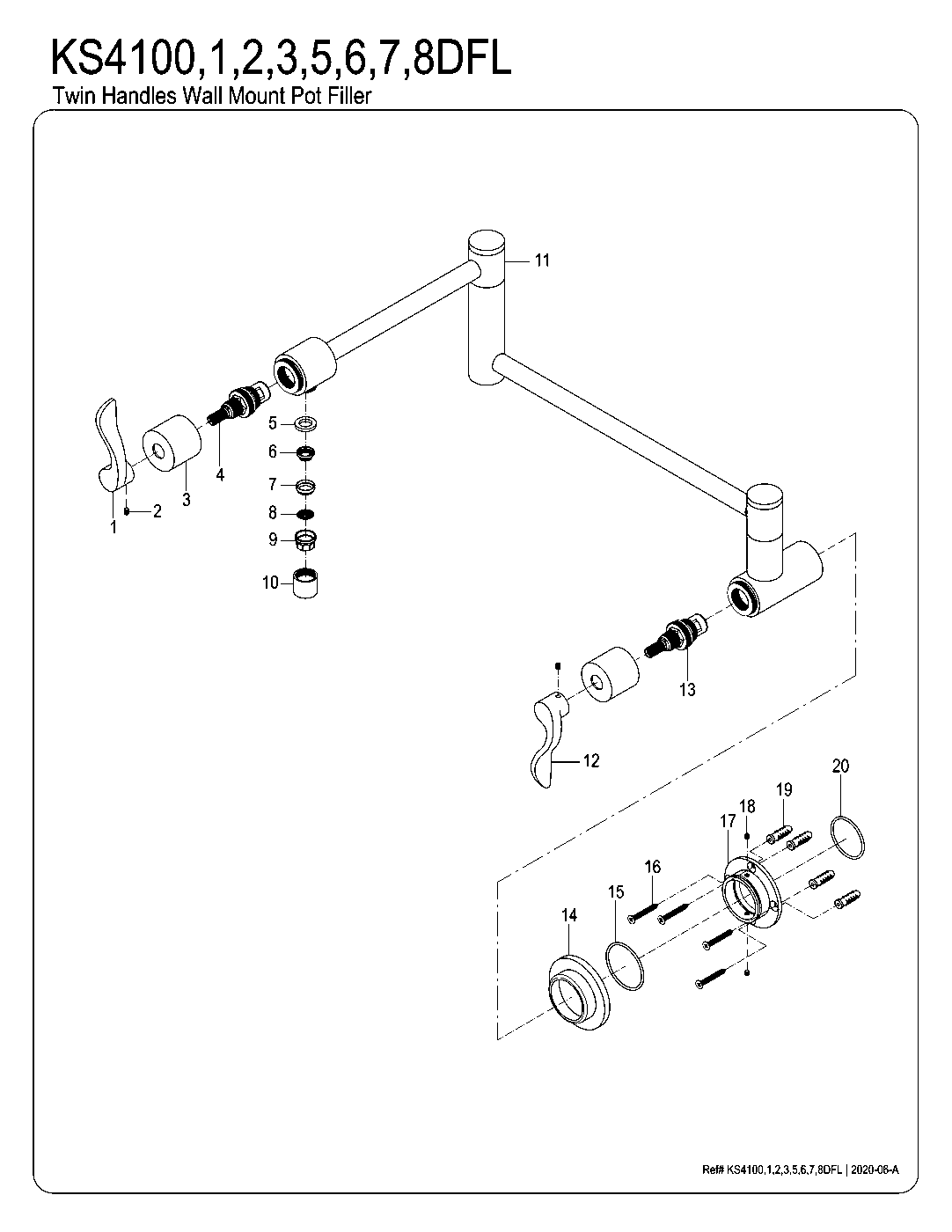

NuWave KS4100DFL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramNuWave KS4100DFL parts questions
Which Kingston Brass models does this NuWave parts diagram cover?
KS4100DFL, KS4101DFL, KS4102DFL, KS4103DFL, KS4105DFL, KS4107DFL, KS4108DFL. They are the same pot filler in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS4100DFL come in?
Matte Black (KS4100DFL), Polished Chrome (KS4101DFL), Polished Brass (KS4102DFL), Antique Brass (KS4103DFL), Oil Rubbed Bronze (KS4105DFL), Brushed Brass (KS4107DFL), Brushed Nickel (KS4108DFL).
What replacement handles fit the KS4100DFL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS410xDFL diagram?
Kingston numbers the parts on this diagram (17 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
NuWave KS410xDFL in every finish
NuWave KS4100DFL Pot Filler, Matte Black$477.72Matte Black
NuWave KS4101DFL Pot Filler, Polished Chrome$389.97Polished Chrome
NuWave KS4102DFL Pot Filler, Polished Brass$477.72Polished Brass
NuWave KS4103DFL Pot Filler, Antique Brass$477.72Antique Brass
NuWave KS4105DFL Pot Filler, Oil Rubbed Bronze$432.22Oil Rubbed Bronze
NuWave KS4107DFL Pot Filler, Brushed Brass$477.72Brushed Brass
NuWave KS4108DFL Pot Filler, Brushed Nickel$432.22Brushed Nickel
