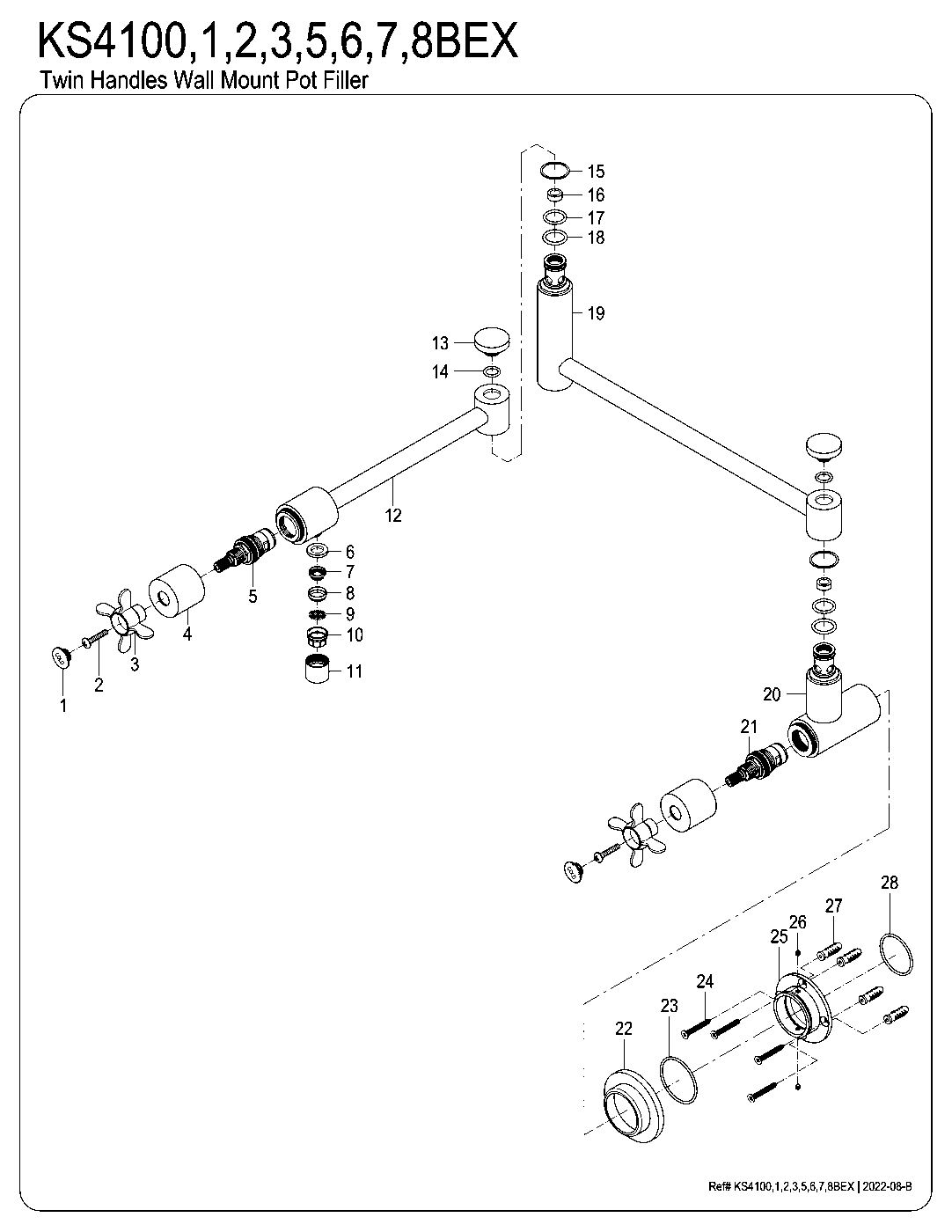

Essex KS4100BEX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramEssex KS4100BEX parts questions
Which Kingston Brass models does this Essex parts diagram cover?
KS4100BEX, KS4102BEX, KS4103BEX, KS4106BEX, KS4107BEX, KS4108BEX. They are the same pot filler in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS4100BEX come in?
Matte Black (KS4100BEX), Polished Brass (KS4102BEX), Antique Brass (KS4103BEX), Polished Nickel (KS4106BEX), Brushed Brass (KS4107BEX), Brushed Nickel (KS4108BEX).
What replacement handles fit the KS4100BEX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS410xBEX diagram?
Kingston numbers the parts on this diagram (27 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Essex KS410xBEX in every finish
Essex KS4100BEX Pot Filler, Matte Black$500.47Matte Black
Essex KS4102BEX Pot Filler, Polished Brass$500.47Polished Brass
Essex KS4103BEX Pot Filler, Antique Brass$500.47Antique Brass
Essex KS4106BEX Pot Filler, Polished Nickel$500.47Polished Nickel
Essex KS4107BEX Pot Filler, Brushed Brass$500.47Brushed Brass
Essex KS4108BEX Pot Filler, Brushed Nickel$461.47Brushed Nickel
