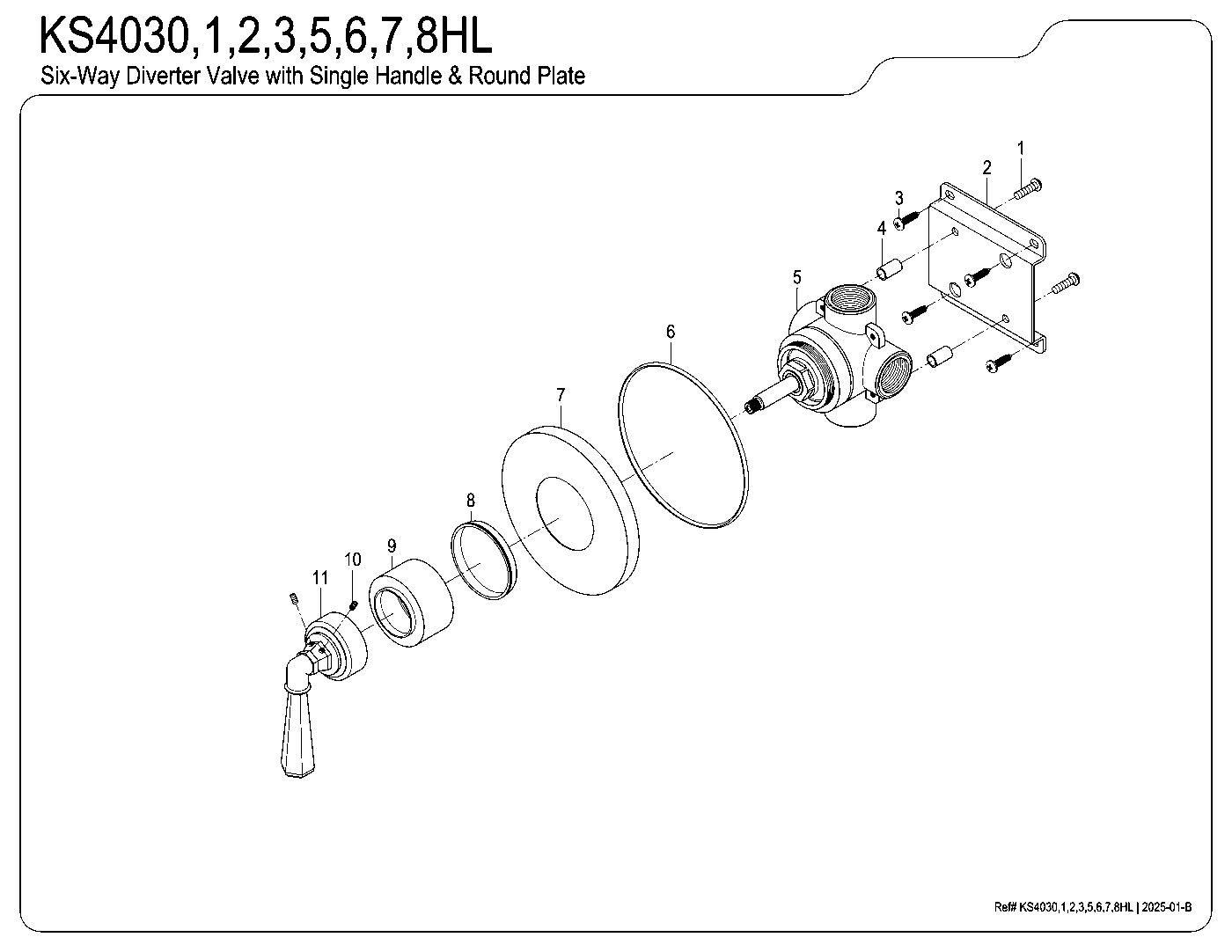

Metropolitan KS4030HL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramMetropolitan KS4030HL parts questions
Which Kingston Brass models does this Metropolitan parts diagram cover?
KS4030HL, KS4031HL, KS4032HL, KS4033HL, KS4035HL, KS4036HL, KS4037HL, KS4038HL. They are the same single-handle wall mount six-way diverter valve with trim kit in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS4030HL come in?
Matte Black (KS4030HL), Polished Chrome (KS4031HL), Polished Brass (KS4032HL), Antique Brass (KS4033HL), Oil Rubbed Bronze (KS4035HL), Polished Nickel (KS4036HL), Brushed Brass (KS4037HL), Brushed Nickel (KS4038HL).
What replacement handles fit the KS4030HL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS403xHL diagram?
Kingston numbers the parts on this diagram (10 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Metropolitan KS403xHL in every finish
Metropolitan KS4030HL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Matte Black$370.47Matte Black
Metropolitan KS4031HL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Chrome$292.47Polished Chrome
Metropolitan KS4032HL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Brass$370.47Polished Brass
Metropolitan KS4033HL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Antique Brass$370.47Antique Brass
Metropolitan KS4035HL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Oil Rubbed Bronze$324.97Oil Rubbed Bronze
Metropolitan KS4036HL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Nickel$370.47Polished Nickel
Metropolitan KS4037HL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Brushed Brass$370.47Brushed Brass
Metropolitan KS4038HL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Brushed Nickel$324.97Brushed Nickel
