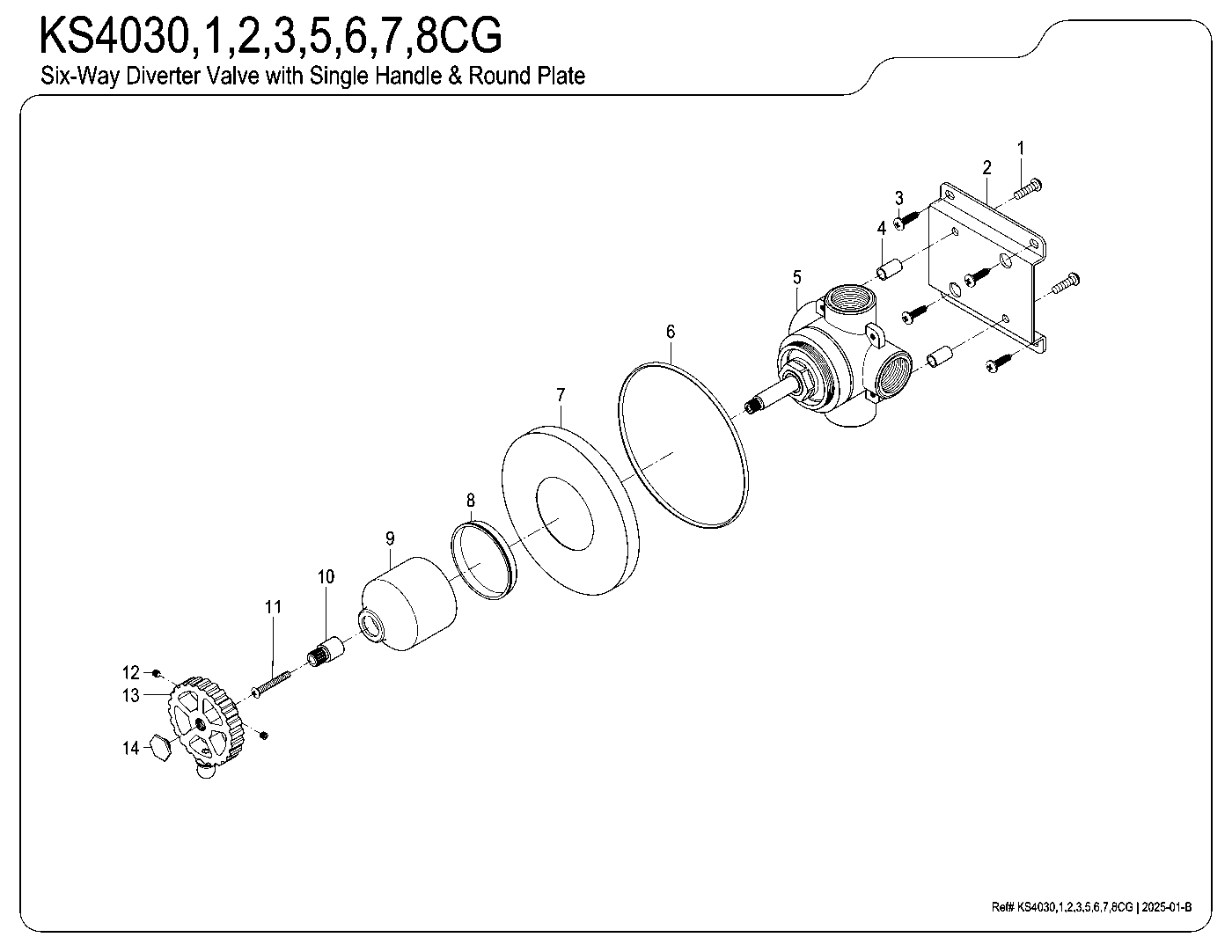

Fuller KS4030CG exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramFuller KS4030CG parts questions
Which Kingston Brass models does this Fuller parts diagram cover?
KS4030CG, KS4031CG, KS4032CG, KS4033CG, KS4035CG, KS4036CG, KS4037CG, KS4038CG. They are the same single-handle wall mount six-way diverter valve with trim kit in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS4030CG come in?
Matte Black (KS4030CG), Polished Chrome (KS4031CG), Polished Brass (KS4032CG), Antique Brass (KS4033CG), Oil Rubbed Bronze (KS4035CG), Polished Nickel (KS4036CG), Brushed Brass (KS4037CG), Brushed Nickel (KS4038CG).
What replacement handles fit the KS4030CG?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS403xCG diagram?
Kingston numbers the parts on this diagram (12 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Fuller KS403xCG in every finish
Fuller KS4030CG Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Matte Black$399.72Matte Black
Fuller KS4031CG Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Chrome$321.72Polished Chrome
Fuller KS4032CG Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Brass$399.72Polished Brass
Fuller KS4033CG Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Antique Brass$399.72Antique Brass
Fuller KS4035CG Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Oil Rubbed Bronze$357.47Oil Rubbed Bronze
Fuller KS4036CG Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Nickel$399.72Polished Nickel
Fuller KS4037CG Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Brushed Brass$399.72Brushed Brass
Fuller KS4038CG Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Brushed Nickel$357.47Brushed Nickel
