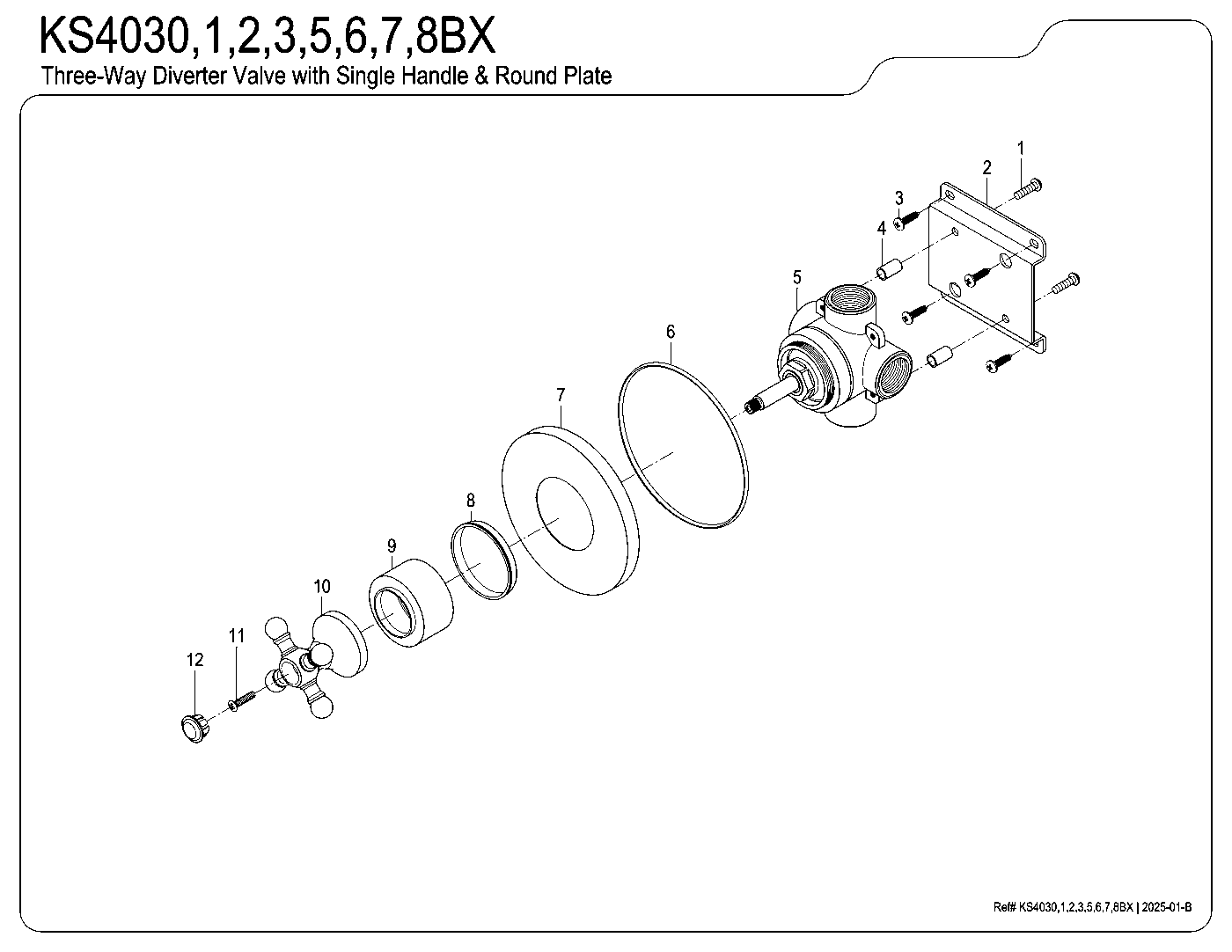

Metropolitan KS4030BX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramMetropolitan KS4030BX parts questions
Which Kingston Brass models does this Metropolitan parts diagram cover?
KS4030BX, KS4031BX, KS4032BX, KS4033BX, KS4035BX, KS4036BX, KS4037BX, KS4038BX. They are the same single-handle wall mount six-way diverter valve with trim kit in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS4030BX come in?
Matte Black (KS4030BX), Polished Chrome (KS4031BX), Polished Brass (KS4032BX), Antique Brass (KS4033BX), Oil Rubbed Bronze (KS4035BX), Polished Nickel (KS4036BX), Brushed Brass (KS4037BX), Brushed Nickel (KS4038BX).
What replacement handles fit the KS4030BX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS403xBX diagram?
Kingston numbers the parts on this diagram (11 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Metropolitan KS403xBX in every finish
Metropolitan KS4030BX Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Matte Black$393.22Matte Black
Metropolitan KS4031BX Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Chrome$302.22Polished Chrome
Metropolitan KS4032BX Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Brass$393.22Polished Brass
Metropolitan KS4033BX Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Antique Brass$393.22Antique Brass
Metropolitan KS4035BX Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Oil Rubbed Bronze$347.72Oil Rubbed Bronze
Metropolitan KS4036BX Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Nickel$393.22Polished Nickel
Metropolitan KS4037BX Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Brushed Brass$393.22Brushed Brass
Metropolitan KS4038BX Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Brushed Nickel$347.72Brushed Nickel
