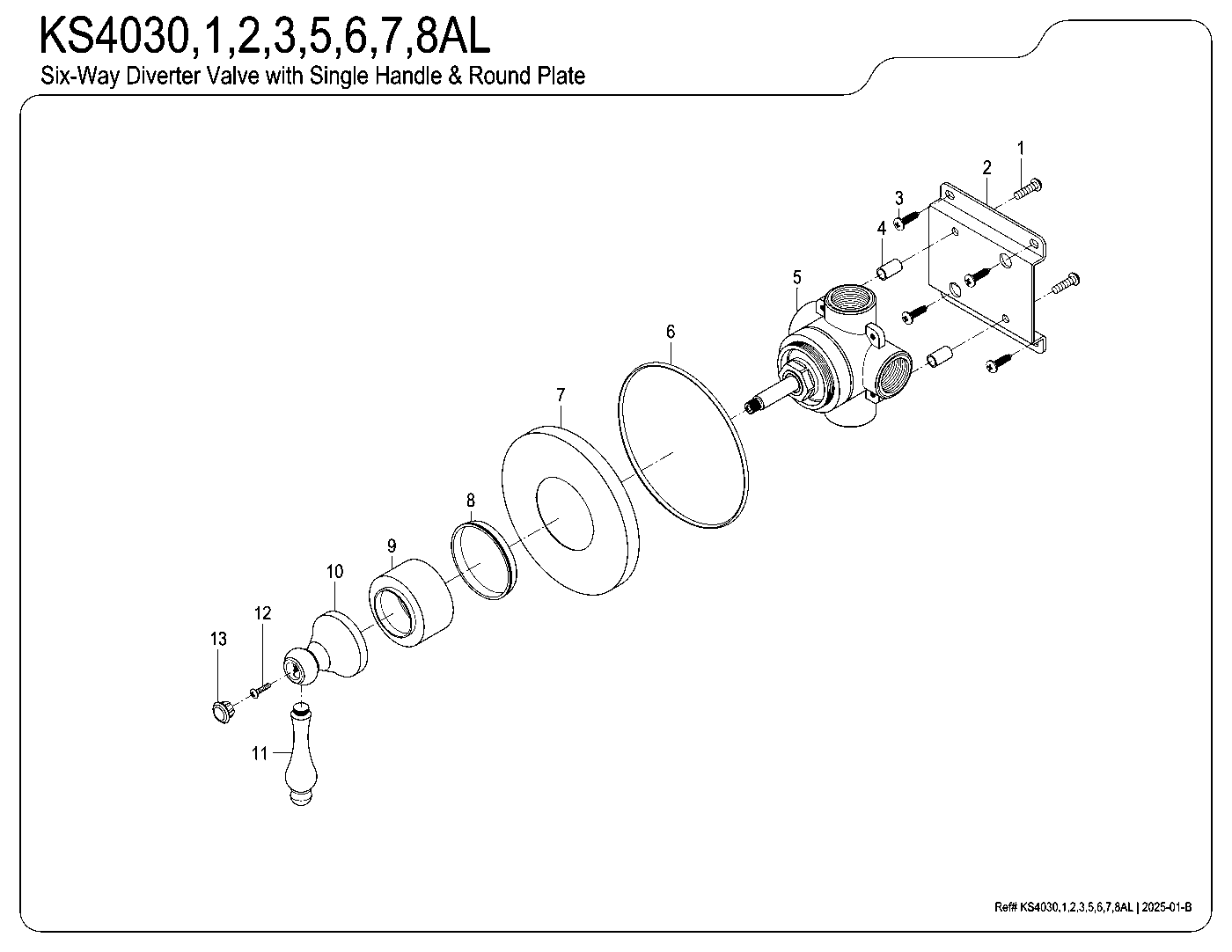

Restoration KS4030AL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramRestoration KS4030AL parts questions
Which Kingston Brass models does this Restoration parts diagram cover?
KS4030AL, KS4031AL, KS4032AL, KS4033AL, KS4035AL, KS4036AL, KS4037AL, KS4038AL. They are the same single-handle wall mount six-way diverter valve with trim kit in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS4030AL come in?
Matte Black (KS4030AL), Polished Chrome (KS4031AL), Polished Brass (KS4032AL), Antique Brass (KS4033AL), Oil Rubbed Bronze (KS4035AL), Polished Nickel (KS4036AL), Brushed Brass (KS4037AL), Brushed Nickel (KS4038AL).
What replacement handles fit the KS4030AL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS403xAL diagram?
Kingston numbers the parts on this diagram (12 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Restoration KS403xAL in every finish
Restoration KS4030AL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Matte Black$370.47Matte Black
Restoration KS4031AL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Chrome$279.47Polished Chrome
Restoration KS4032AL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Brass$370.47Polished Brass
Restoration KS4033AL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Antique Brass$370.47Antique Brass
Restoration KS4035AL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Oil Rubbed Bronze$324.97Oil Rubbed Bronze
Restoration KS4036AL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Polished Nickel$370.47Polished Nickel
Restoration KS4037AL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Brushed Brass$370.47Brushed Brass
Restoration KS4038AL Single-Handle Wall Mount Six-Way Diverter Valve with Trim Kit, Brushed Nickel$324.97Brushed Nickel
