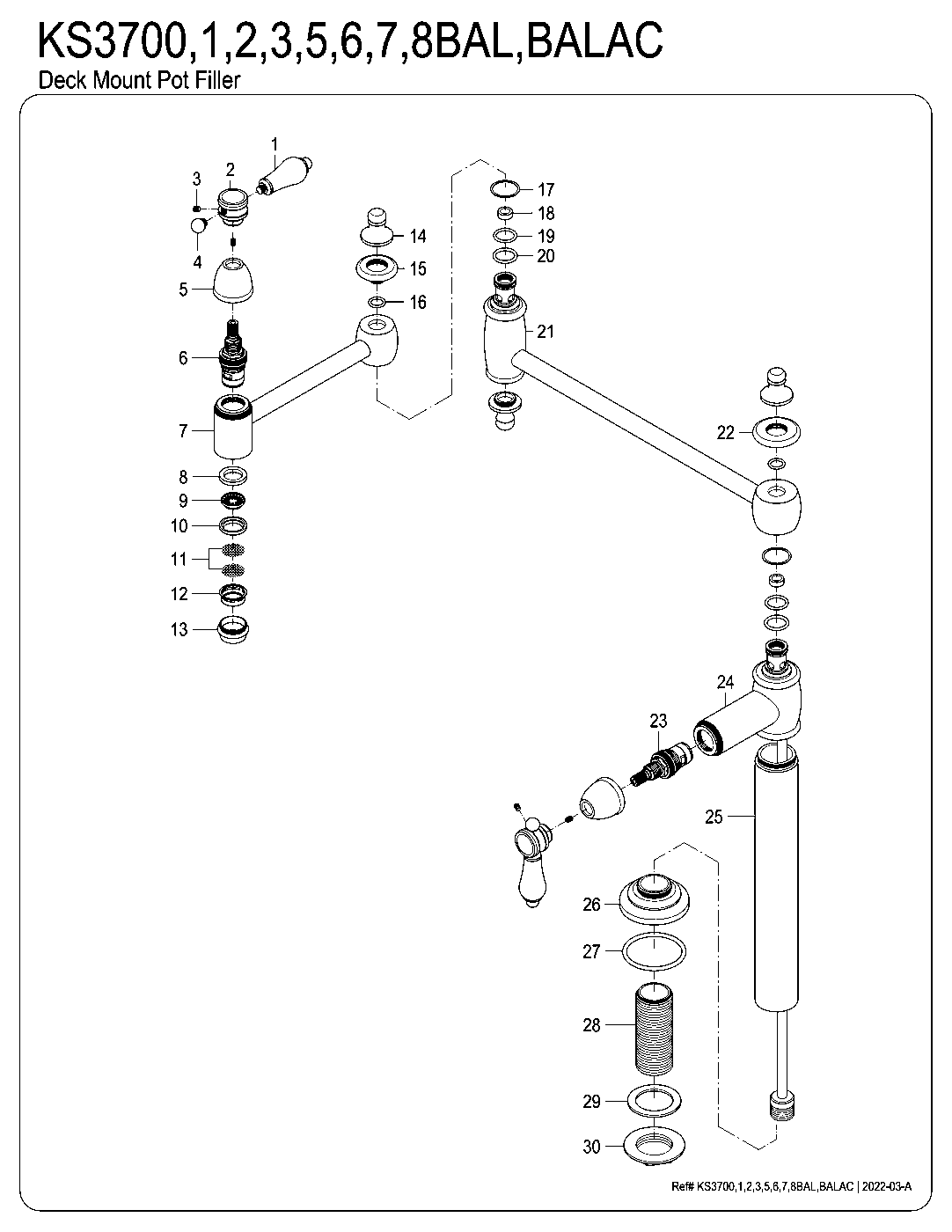

Heirloom KS3700BAL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramHeirloom KS3700BAL parts questions
Which Kingston Brass models does this Heirloom parts diagram cover?
KS3700BAL, KS3701BAL, KS3703BAL, KS3705BAL, KS3707BAL. They are the same single-hole deck mount pot filler in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS3700BAL come in?
Matte Black (KS3700BAL), Polished Chrome (KS3701BAL), Antique Brass (KS3703BAL), Oil Rubbed Bronze (KS3705BAL), Brushed Brass (KS3707BAL).
What replacement handles fit the KS3700BAL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS370xBAL diagram?
Kingston numbers the parts on this diagram (26 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Heirloom KS370xBAL in every finish
Heirloom KS3700BAL Single-Hole Deck Mount Pot Filler, Matte Black$630.47Matte Black
Heirloom KS3701BAL Single-Hole Deck Mount Pot Filler, Polished Chrome$532.97Polished Chrome
Heirloom KS3703BAL Single-Hole Deck Mount Pot Filler, Antique Brass$630.47Antique Brass
Heirloom KS3705BAL Single-Hole Deck Mount Pot Filler, Oil Rubbed Bronze$588.22Oil Rubbed Bronze
Heirloom KS3707BAL Single-Hole Deck Mount Pot Filler, Brushed Brass$630.47Brushed Brass
