Kingston Brass Kingston Brass KS3220PX parts

Vintage 6" Adjustable Center Wall Mount Kitchen Faucet. One parts diagram covers all 7 finishes of this model.

Model numbers: KS3220PX KS3221PX KS3222PX KS3225PX KS3226PX KS3227PX KS3228PX

Open the diagram Kingston’s PDF

Replacement handles for the KS322xPX

Configuration required Matched by Kingston model number. Pick the finish that matches your faucet.

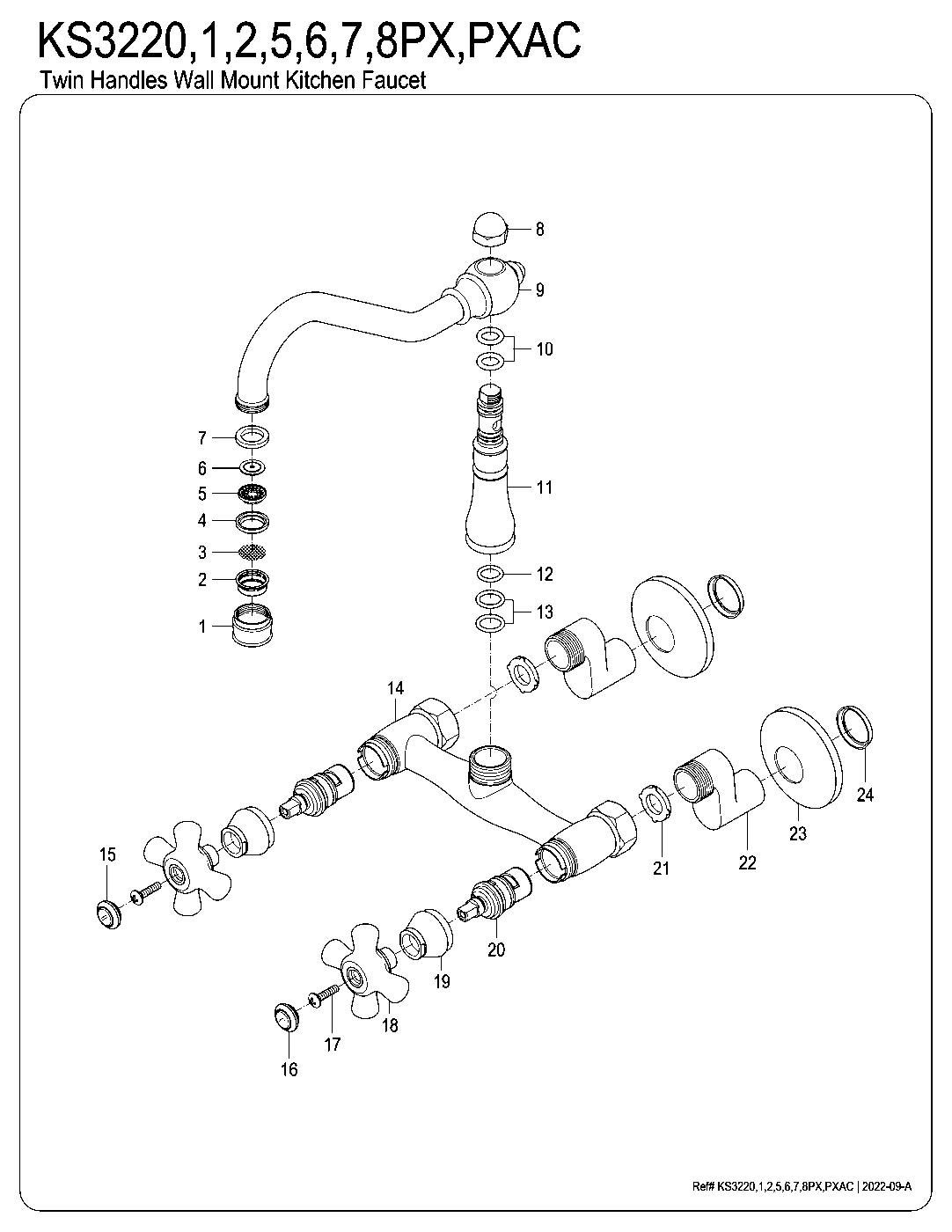

Kingston Brass KS3220PX exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Kingston Brass KS3220PX exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Need a part that isn’t listed?

Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.

Request a part from this diagram

Kingston Brass KS3220PX parts questions

Which Kingston Brass models does this Kingston Brass parts diagram cover?

KS3220PX, KS3221PX, KS3222PX, KS3225PX, KS3226PX, KS3227PX, KS3228PX. They are the same vintage 6" adjustable center wall mount kitchen faucet in different finishes, so they share one parts diagram.

What finishes does the Kingston Brass KS3220PX come in?

Matte Black (KS3220PX), Polished Chrome (KS3221PX), Polished Brass (KS3222PX), Oil Rubbed Bronze (KS3225PX), Polished Nickel (KS3226PX), Brushed Brass (KS3227PX), Brushed Nickel (KS3228PX).

What replacement handles fit the KS3220PX?

Kingston's handle numbers follow the faucet model, for example KSH3220PXH (hot) and KSH3220PXC (cold). We list 14 matching handles in every finish we carry.

How do I order a part from the KS322xPX diagram?

Kingston numbers the parts on this diagram (21 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
