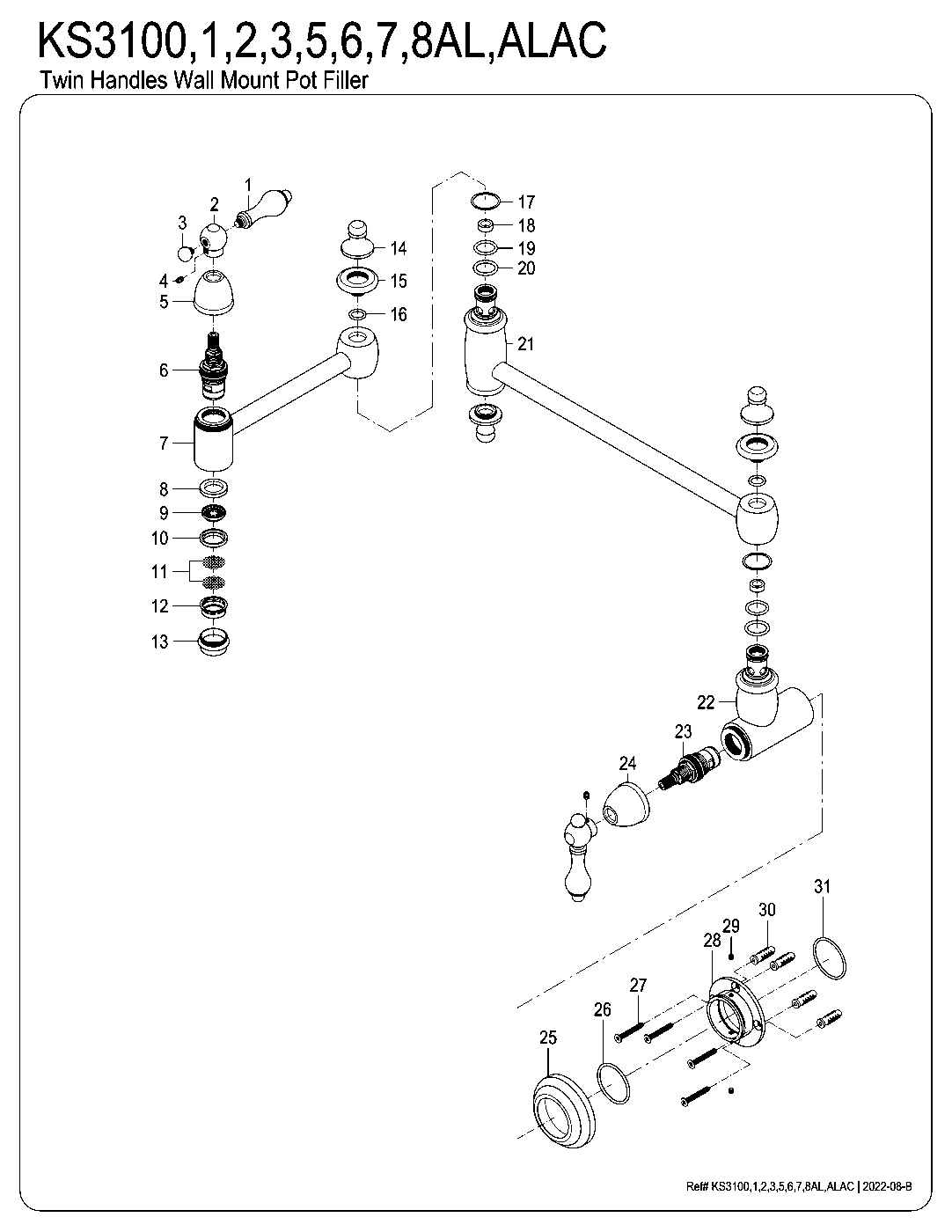

Kingston Brass KS3100AL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS3100AL parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS3100AL, KS3101AL, KS3102AL, KS3103AL, KS3105AL, KS3106AL, KS3107AL, KS3108AL. They are the same restoration wall mount pot filler kitchen faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS3100AL come in?
Matte Black (KS3100AL), Polished Chrome (KS3101AL), Polished Brass (KS3102AL), Antique Brass (KS3103AL), Oil Rubbed Bronze (KS3105AL), Polished Nickel (KS3106AL), Brushed Brass (KS3107AL), Brushed Nickel (KS3108AL).
What replacement handles fit the KS3100AL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS310xAL diagram?
Kingston numbers the parts on this diagram (24 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS310xAL in every finish
Kingston Brass KS3100AL Restoration Wall Mount Pot Filler Kitchen Faucet, Matte Black$432.22Matte Black
Kingston Brass KS3101AL Restoration Wall Mount Pot Filler Kitchen Faucet, Polished Chrome$289.22Polished Chrome
Kingston Brass KS3102AL Restoration Wall Mount Pot Filler Kitchen Faucet, Polished Brass$389.97Polished Brass
Kingston Brass KS3103AL Restoration Wall Mount Pot Filler Kitchen Faucet, Antique Brass$428.97Antique Brass
Kingston Brass KS3105AL Restoration Wall Mount Pot Filler Kitchen Faucet, Oil Rubbed Bronze$389.97Oil Rubbed Bronze
Kingston Brass KS3106AL Restoration Wall Mount Pot Filler Kitchen Faucet, Polished Nickel$389.97Polished Nickel
Kingston Brass KS3107AL Restoration Wall Mount Pot Filler Kitchen Faucet, Brushed Brass$389.97Brushed Brass
Kingston Brass KS3108AL Restoration Wall Mount Pot Filler Kitchen Faucet, Brushed Nickel$389.97Brushed Nickel
