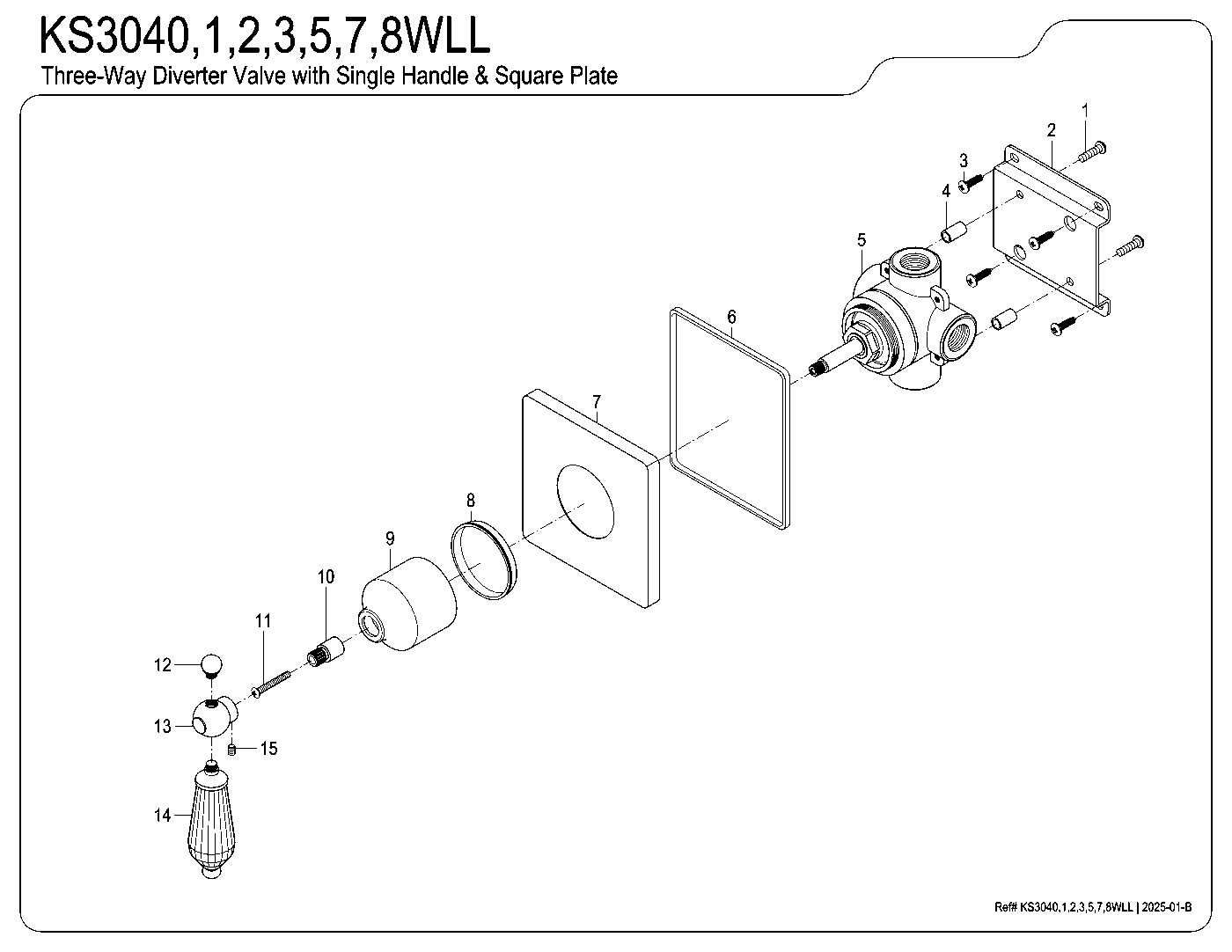

Wilshire KS3040WLL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramWilshire KS3040WLL parts questions
Which Kingston Brass models does this Wilshire parts diagram cover?
KS3040WLL, KS3041WLL, KS3042WLL, KS3043WLL, KS3045WLL, KS3047WLL, KS3048WLL. They are the same single-handle wall mount three-way diverter valve with trim kit in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS3040WLL come in?
Matte Black (KS3040WLL), Polished Chrome (KS3041WLL), Polished Brass (KS3042WLL), Antique Brass (KS3043WLL), Oil Rubbed Bronze (KS3045WLL), Brushed Brass (KS3047WLL), Brushed Nickel (KS3048WLL).
What replacement handles fit the KS3040WLL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS304xWLL diagram?
Kingston numbers the parts on this diagram (12 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Wilshire KS304xWLL in every finish
Wilshire KS3040WLL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Matte Black$360.72Matte Black
Wilshire KS3041WLL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Polished Chrome$276.22Polished Chrome
Wilshire KS3042WLL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Polished Brass$360.72Polished Brass
Wilshire KS3043WLL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Antique Brass$360.72Antique Brass
Wilshire KS3045WLL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Oil Rubbed Bronze$315.22Oil Rubbed Bronze
Wilshire KS3047WLL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Brushed Brass$360.72Brushed Brass
Wilshire KS3048WLL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Brushed Nickel$315.22Brushed Nickel
