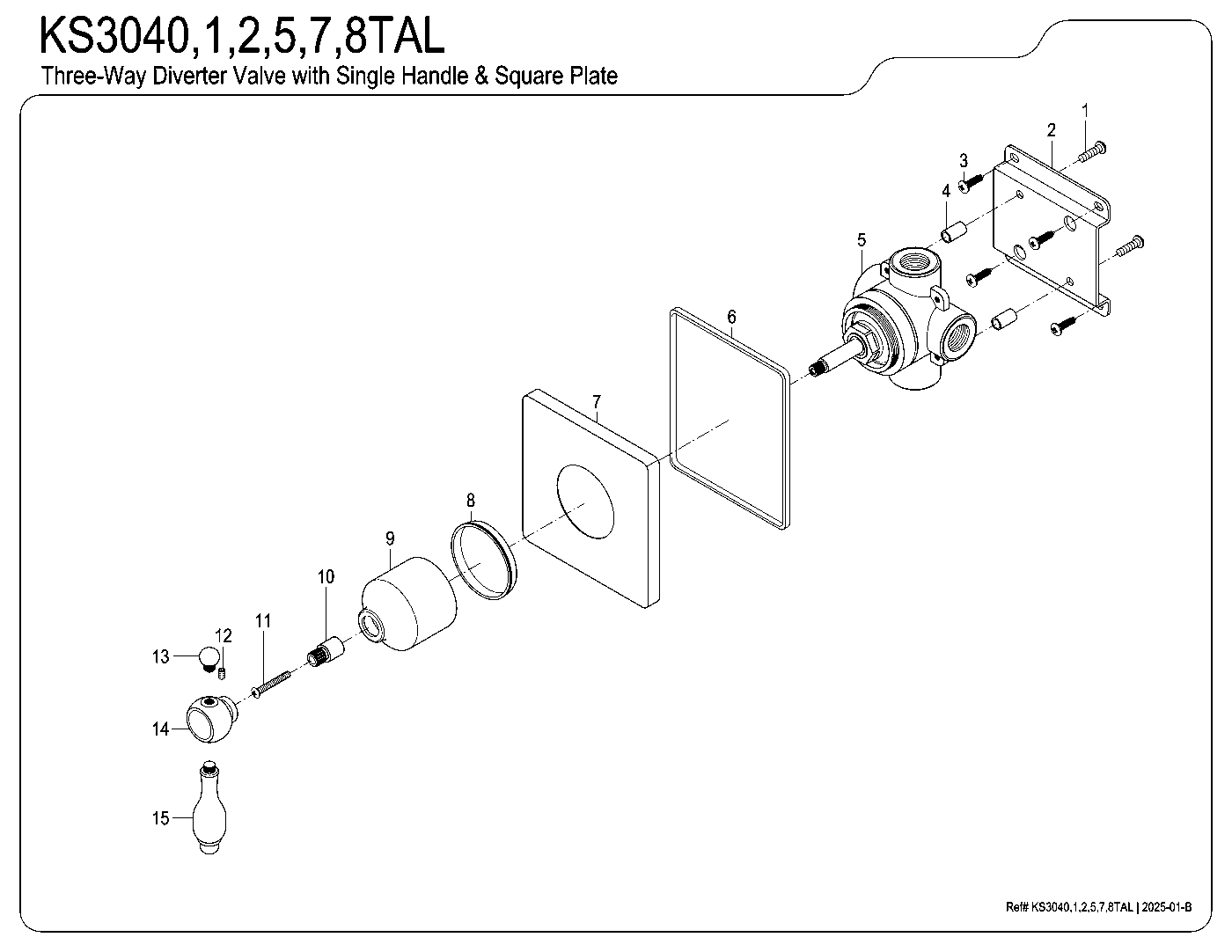

Tudor KS3040TAL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramTudor KS3040TAL parts questions
Which Kingston Brass models does this Tudor parts diagram cover?
KS3040TAL, KS3041TAL, KS3042TAL, KS3045TAL, KS3047TAL, KS3048TAL. They are the same single-handle wall mount three-way diverter valve with trim kit in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS3040TAL come in?
Matte Black (KS3040TAL), Polished Chrome (KS3041TAL), Polished Brass (KS3042TAL), Oil Rubbed Bronze (KS3045TAL), Brushed Brass (KS3047TAL), Brushed Nickel (KS3048TAL).
What replacement handles fit the KS3040TAL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS304xTAL diagram?
Kingston numbers the parts on this diagram (11 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Tudor KS304xTAL in every finish
Tudor KS3040TAL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Matte Black$363.97Matte Black
Tudor KS3041TAL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Polished Chrome$279.47Polished Chrome
Tudor KS3042TAL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Polished Brass$363.97Polished Brass
Tudor KS3045TAL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Oil Rubbed Bronze$318.47Oil Rubbed Bronze
Tudor KS3047TAL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Brushed Brass$363.97Brushed Brass
Tudor KS3048TAL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Brushed Nickel$318.47Brushed Nickel
