Kingston Brass Kingston Brass KS3030ZL parts
Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit. One parts diagram covers all 5 finishes of this model.

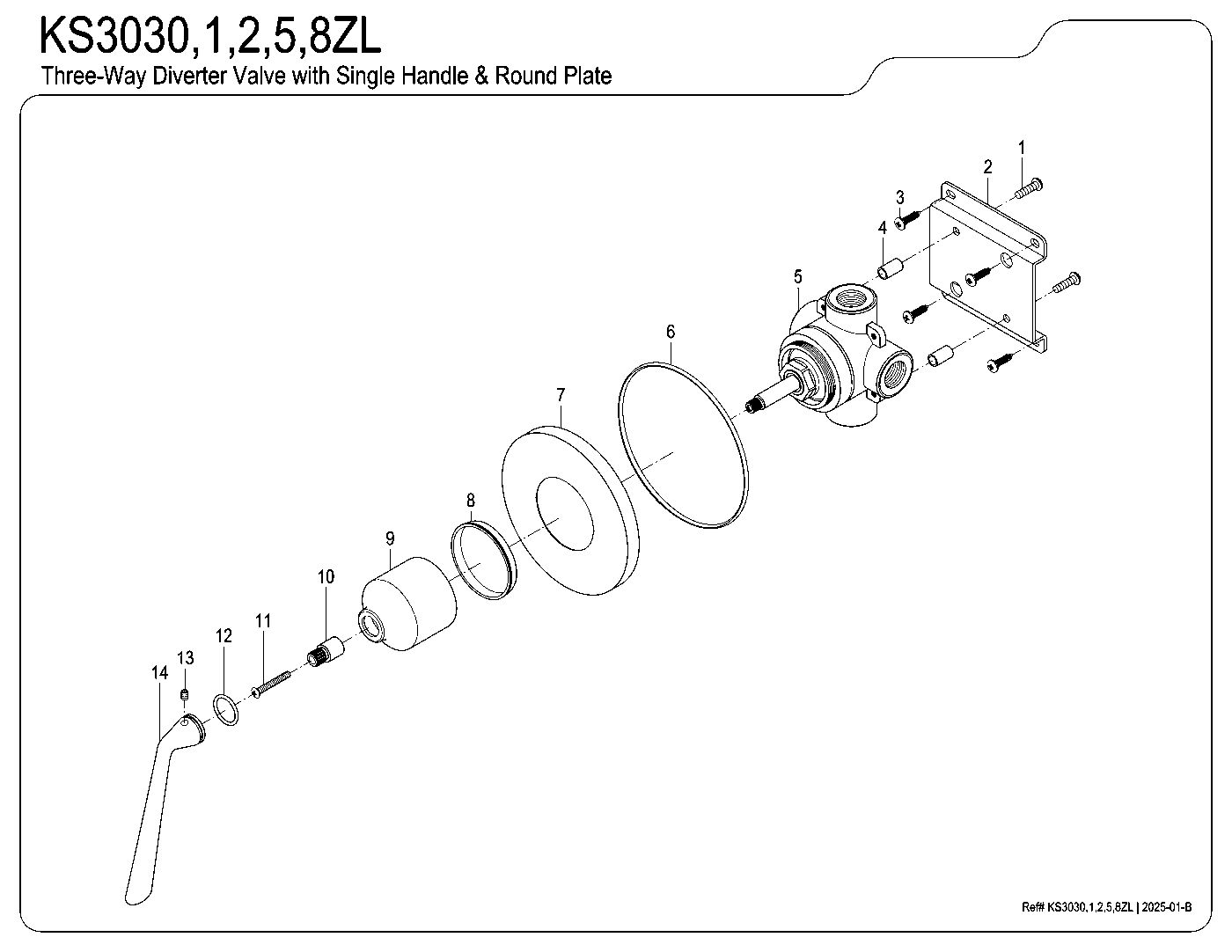

Kingston Brass KS3030ZL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS3030ZL parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS3030ZL, KS3031ZL, KS3032ZL, KS3035ZL, KS3038ZL. They are the same single-handle wall mount three-way diverter valve with trim kit in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS3030ZL come in?
Matte Black (KS3030ZL), Polished Chrome (KS3031ZL), Polished Brass (KS3032ZL), Oil Rubbed Bronze (KS3035ZL), Brushed Nickel (KS3038ZL).
What replacement handles fit the KS3030ZL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS303xZL diagram?
Kingston numbers the parts on this diagram (12 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS303xZL in every finish
KS3030ZL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Matte Black$334.72Matte Black
KS3031ZL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Polished Chrome$250.22Polished Chrome
KS3032ZL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Polished Brass$334.72Polished Brass
KS3035ZL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Oil Rubbed Bronze$295.72Oil Rubbed Bronze
KS3038ZL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Brushed Nickel$295.72Brushed Nickel
