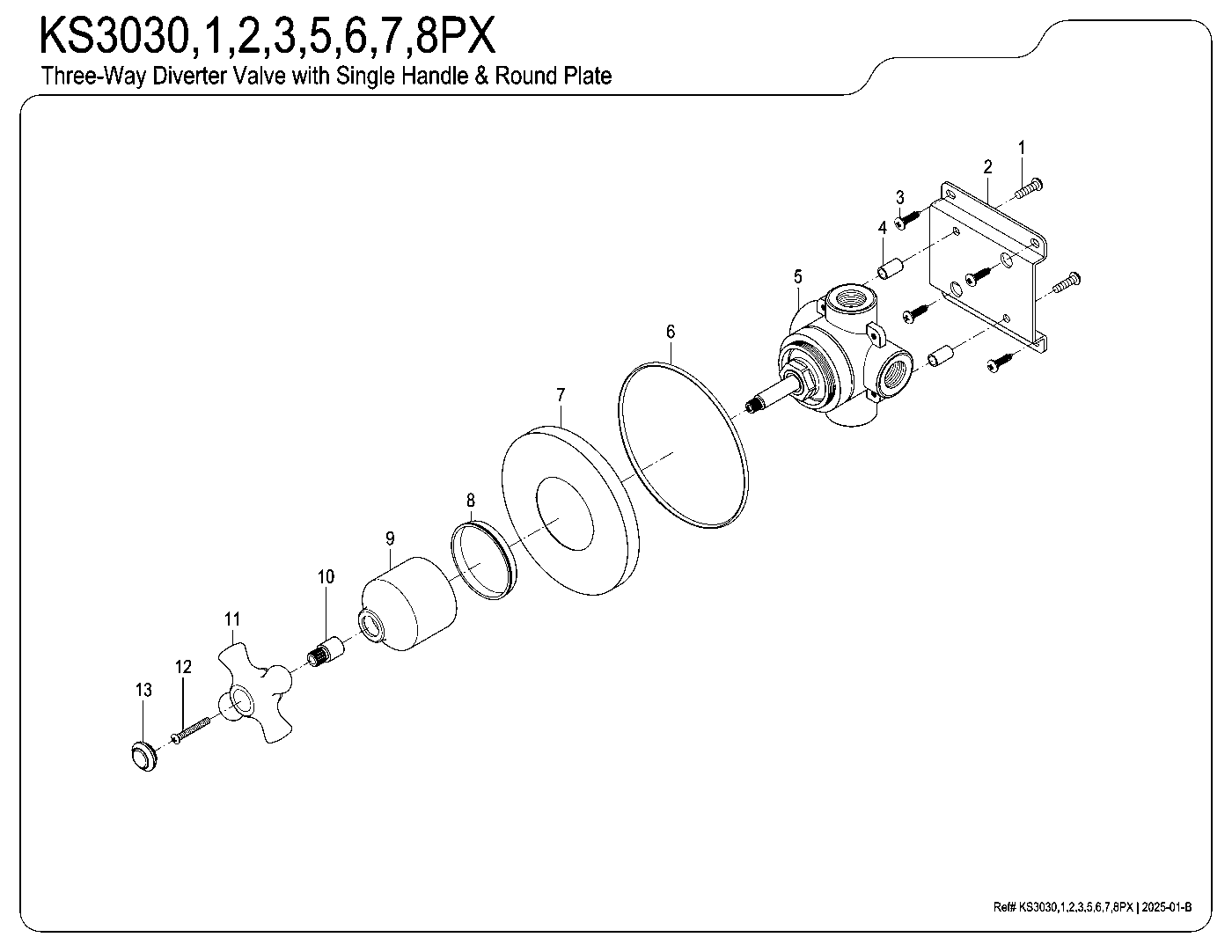

Kingston Brass KS3030PX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS3030PX parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS3030PX, KS3031PX, KS3032PX, KS3033PX, KS3035PX, KS3036PX, KS3037PX, KS3038PX. They are the same single-handle wall mount three-way diverter valve with trim kit in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS3030PX come in?
Matte Black (KS3030PX), Polished Chrome (KS3031PX), Polished Brass (KS3032PX), Antique Brass (KS3033PX), Oil Rubbed Bronze (KS3035PX), Polished Nickel (KS3036PX), Brushed Brass (KS3037PX), Brushed Nickel (KS3038PX).
What replacement handles fit the KS3030PX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS303xPX diagram?
Kingston numbers the parts on this diagram (13 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS303xPX in every finish
KS3030PX Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Matte Black$357.47Matte Black
KS3031PX Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Polished Chrome$272.97Polished Chrome
KS3032PX Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Polished Brass$357.47Polished Brass
KS3033PX Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Antique Brass$357.47Antique Brass
KS3035PX Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Oil Rubbed Bronze$311.97Oil Rubbed Bronze
KS3036PX Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Polished Nickel$357.47Polished Nickel
KS3037PX Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Brushed Brass$357.47Brushed Brass
KS3038PX Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Brushed Nickel$311.97Brushed Nickel
