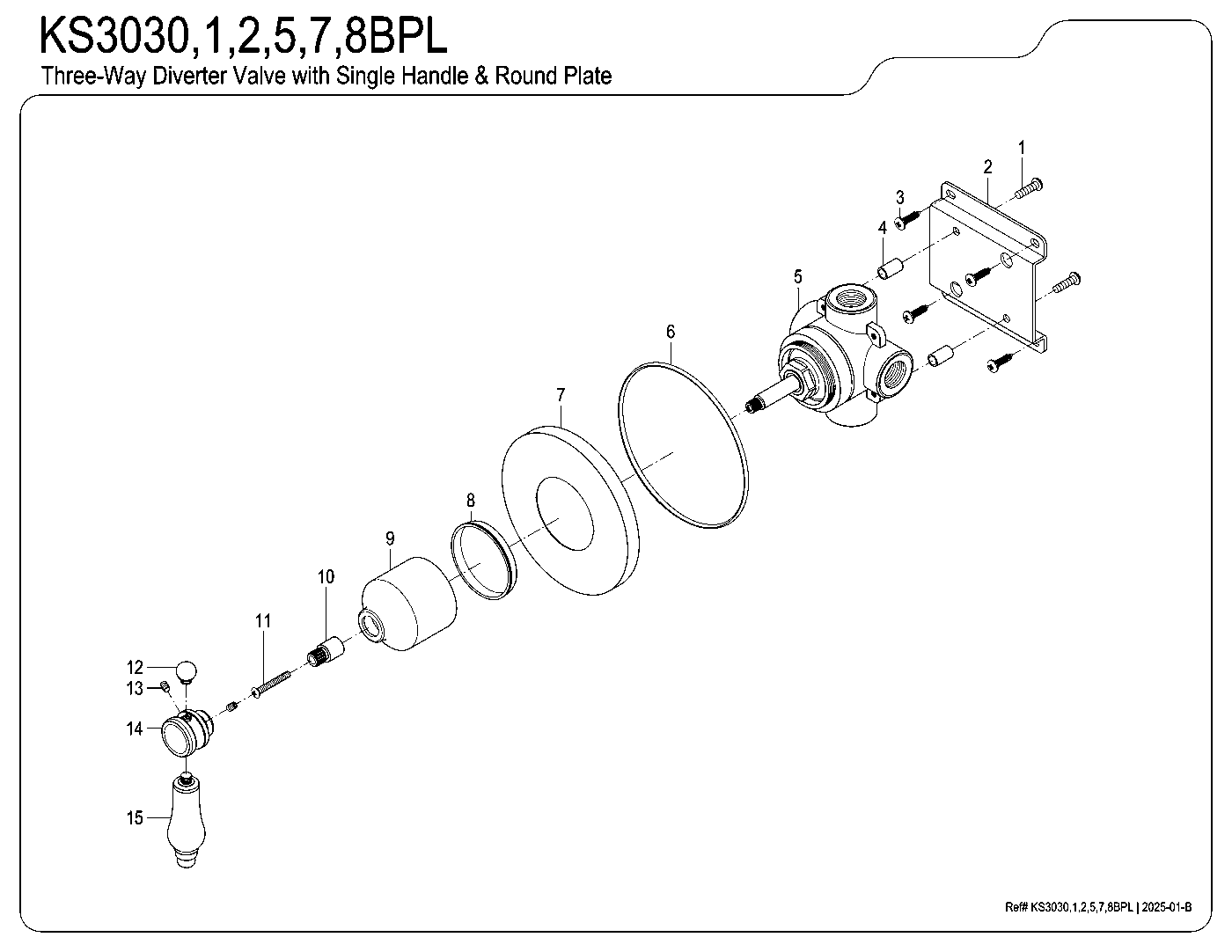

Bel-Air KS3030BPL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramBel-Air KS3030BPL parts questions
Which Kingston Brass models does this Bel-Air parts diagram cover?
KS3030BPL, KS3031BPL, KS3032BPL, KS3035BPL, KS3037BPL, KS3038BPL. They are the same single-handle wall mount three-way diverter valve with trim kit in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS3030BPL come in?
Matte Black (KS3030BPL), Polished Chrome (KS3031BPL), Polished Brass (KS3032BPL), Oil Rubbed Bronze (KS3035BPL), Brushed Brass (KS3037BPL), Brushed Nickel (KS3038BPL).
What replacement handles fit the KS3030BPL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS303xBPL diagram?
Kingston numbers the parts on this diagram (12 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Bel-Air KS303xBPL in every finish
Bel-Air KS3030BPL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Matte Black$363.97Matte Black
Bel-Air KS3031BPL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Polished Chrome$279.47Polished Chrome
Bel-Air KS3032BPL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Polished Brass$363.97Polished Brass
Bel-Air KS3035BPL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Oil Rubbed Bronze$318.47Oil Rubbed Bronze
Bel-Air KS3037BPL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Brushed Brass$363.97Brushed Brass
Bel-Air KS3038BPL Single-Handle Wall Mount Three-Way Diverter Valve with Trim Kit, Brushed Nickel$318.47Brushed Nickel
