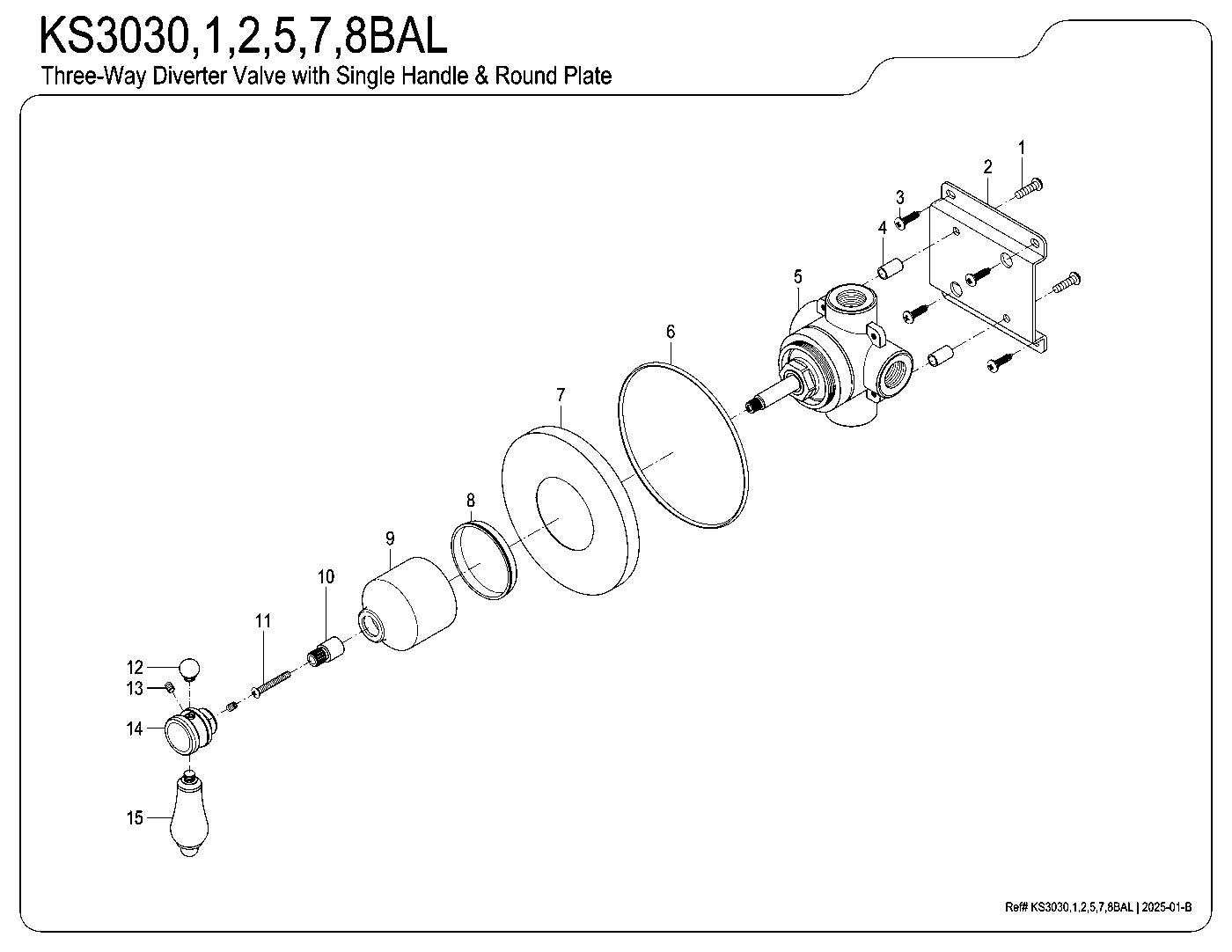

Heirloom KS3030BAL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramHeirloom KS3030BAL parts questions
Which Kingston Brass models does this Heirloom parts diagram cover?
KS3030BAL, KS3031BAL, KS3032BAL, KS3035BAL, KS3037BAL, KS3038BAL. They are the same single-handle wall mount three-way diverter valve with trim kit in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS3030BAL come in?
Matte Black (KS3030BAL), Polished Chrome (KS3031BAL), Polished Brass (KS3032BAL), Oil Rubbed Bronze (KS3035BAL), Brushed Brass (KS3037BAL), Brushed Nickel (KS3038BAL).
What replacement handles fit the KS3030BAL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS303xBAL diagram?
Kingston numbers the parts on this diagram (12 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Heirloom KS303xBAL in every finish
