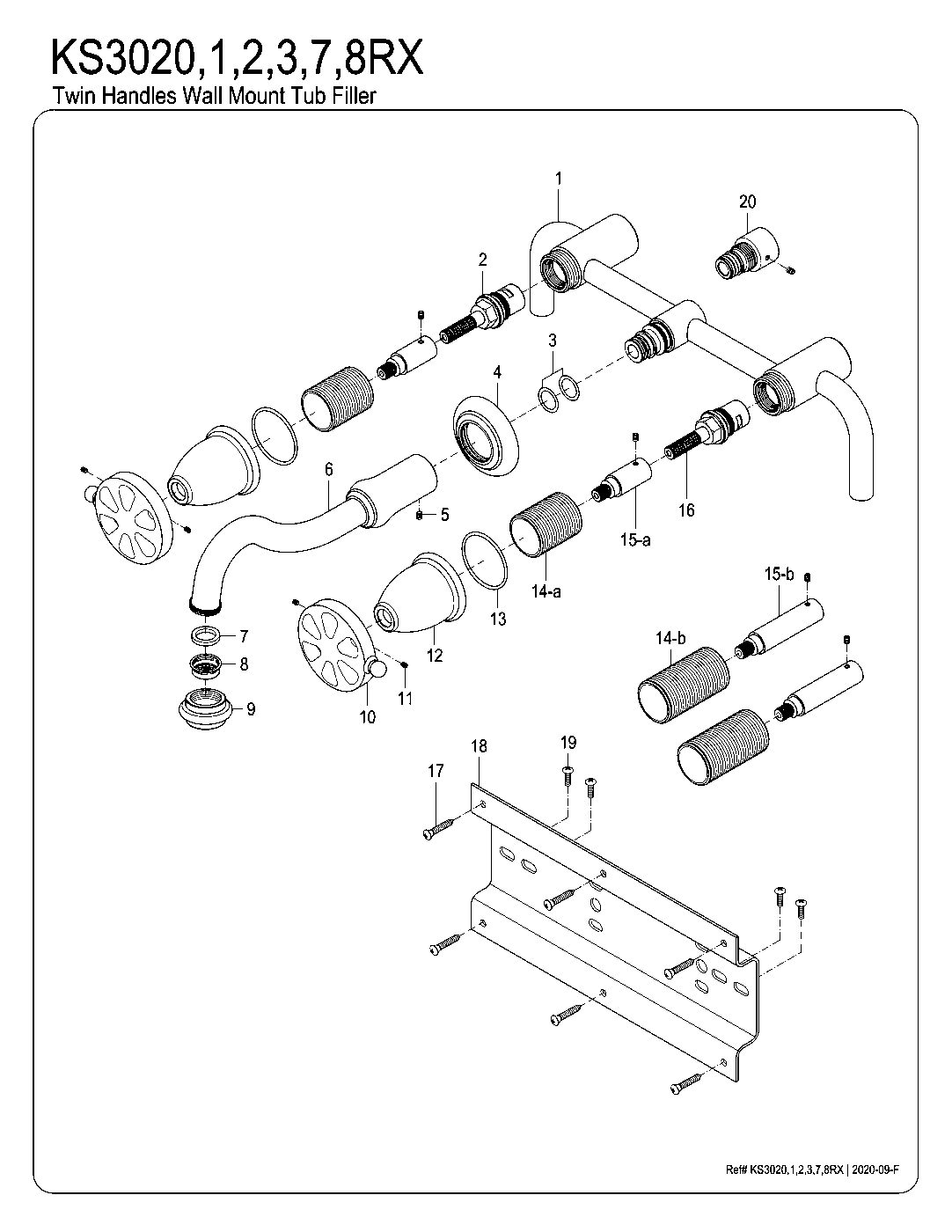

Belknap KS3020RX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramBelknap KS3020RX parts questions
Which Kingston Brass models does this Belknap parts diagram cover?
KS3020RX, KS3021RX, KS3022RX, KS3023RX, KS3027RX, KS3028RX. They are the same two-handle 3-hole wall mount roman tub faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS3020RX come in?
Matte Black (KS3020RX), Polished Chrome (KS3021RX), Polished Brass (KS3022RX), Antique Brass (KS3023RX), Brushed Brass (KS3027RX), Brushed Nickel (KS3028RX).
What replacement handles fit the KS3020RX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS302xRX diagram?
Kingston numbers the parts on this diagram (14 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Belknap KS302xRX in every finish
Belknap KS3020RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Matte Black$389.97Matte Black
Belknap KS3021RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Chrome$305.47Polished Chrome
Belknap KS3022RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Brass$389.97Polished Brass
Belknap KS3023RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Antique Brass$389.97Antique Brass
Belknap KS3027RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Brass$389.97Brushed Brass
Belknap KS3028RX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Nickel$347.72Brushed Nickel
