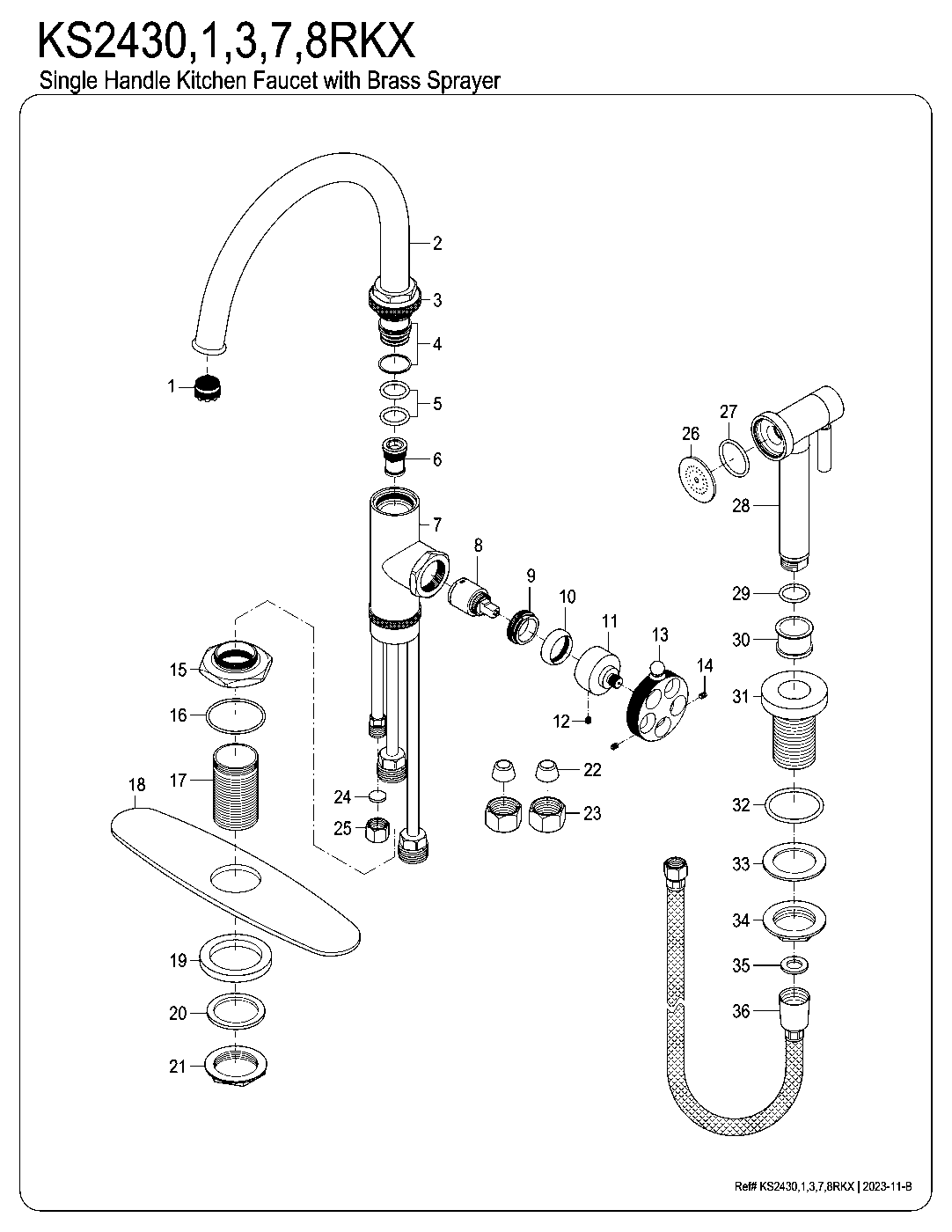

Webb KS2430RKX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramWebb KS2430RKX parts questions
Which Kingston Brass models does this Webb parts diagram cover?
KS2430RKX, KS2431RKX, KS2433RKX, KS2437RKX, KS2438RKX. They are the same single-handle 1-hole deck mount kitchen faucet with knurled handle and brass side sprayer in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS2430RKX come in?
Matte Black (KS2430RKX), Polished Chrome (KS2431RKX), Antique Brass (KS2433RKX), Brushed Brass (KS2437RKX), Brushed Nickel (KS2438RKX).
What replacement handles fit the KS2430RKX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS243xRKX diagram?
Kingston numbers the parts on this diagram (28 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Webb KS243xRKX in every finish
Webb KS2430RKX Single-Handle 1-Hole Deck Mount Kitchen Faucet with Knurled Handle and Brass Side Sprayer, Matte Black$552.47Matte Black
Webb KS2431RKX Single-Handle 1-Hole Deck Mount Kitchen Faucet with Knurled Handle and Brass Side Sprayer, Polished Chrome$406.22Polished Chrome
Webb KS2433RKX Single-Handle 1-Hole Deck Mount Kitchen Faucet with Knurled Handle and Brass Side Sprayer, Antique Brass$526.47Antique Brass
Webb KS2437RKX Single-Handle 1-Hole Deck Mount Kitchen Faucet with Knurled Handle and Brass Side Sprayer, Brushed Brass$526.47Brushed Brass
Webb KS2438RKX Single-Handle 1-Hole Deck Mount Kitchen Faucet with Knurled Handle and Brass Side Sprayer, Brushed Nickel$493.97Brushed Nickel
