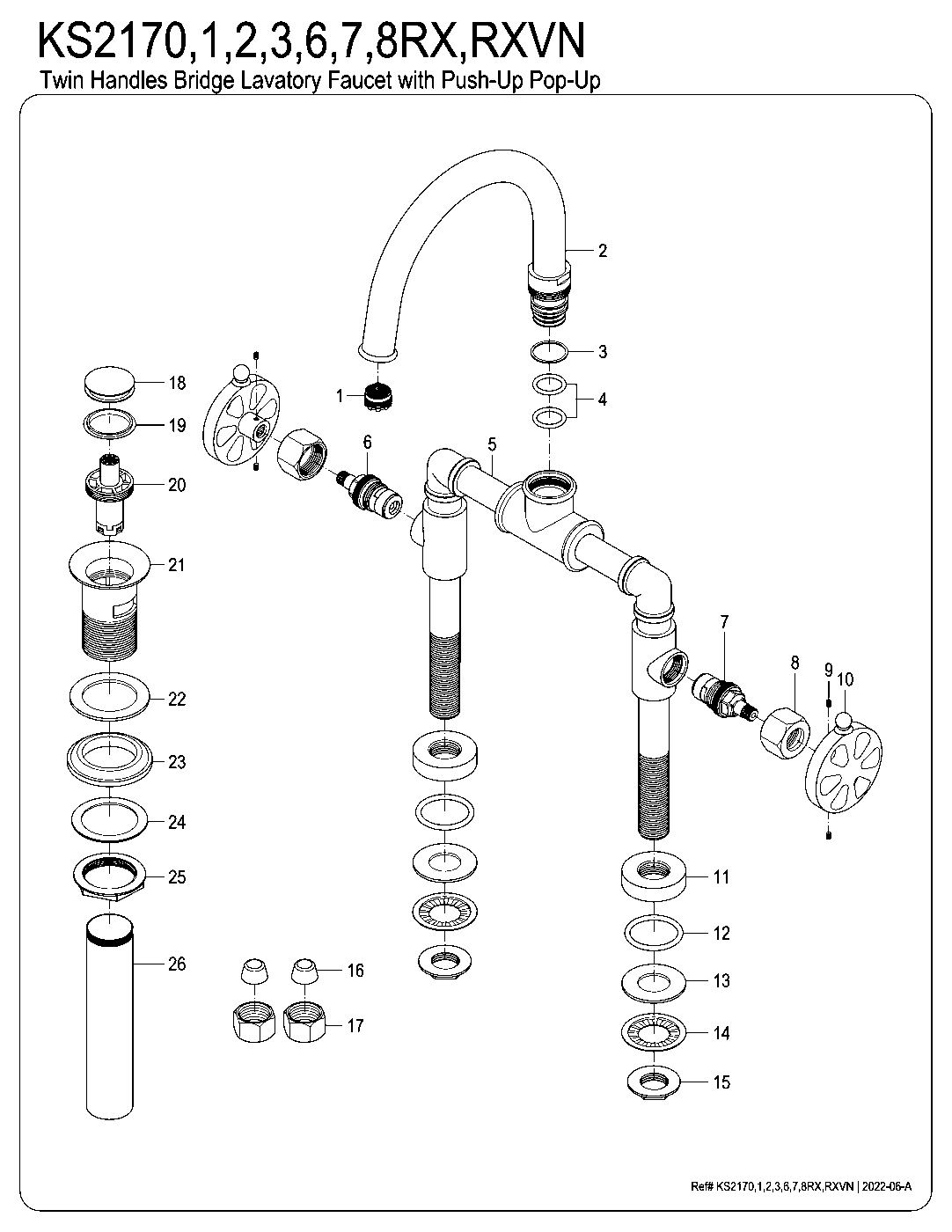

Kingston Brass KS2170RX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS2170RX parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS2170RX, KS2171RX, KS2172RX, KS2173RX, KS2176RX, KS2177RX, KS2178RX. They are the same belknap industrial style wheel handle bridge bathroom faucet with pop-up drain in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS2170RX come in?
Matte Black (KS2170RX), Polished Chrome (KS2171RX), Polished Brass (KS2172RX), Antique Brass (KS2173RX), Polished Nickel (KS2176RX), Brushed Brass (KS2177RX), Brushed Nickel (KS2178RX).
What replacement handles fit the KS2170RX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS217xRX diagram?
Kingston numbers the parts on this diagram (22 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS217xRX in every finish
Kingston Brass KS2170RX Belknap Industrial Style Wheel Handle Bridge Bathroom Faucet with Pop-Up Drain, Matte Black$649.97Matte Black
Belknap KS2171RX Two-Handle 2-Hole Deck Mount Bridge Bathroom Faucet with Pop-Up Drain, Polished Chrome$477.72Polished Chrome
Belknap KS2172RX Two-Handle 2-Hole Deck Mount Bridge Bathroom Faucet with Pop-Up Drain, Polished Brass$649.97Polished Brass
Belknap KS2173RX Two-Handle 2-Hole Deck Mount Bridge Bathroom Faucet with Pop-Up Drain, Antique Brass$649.97Antique Brass
Belknap KS2176RX Two-Handle 2-Hole Deck Mount Bridge Bathroom Faucet with Pop-Up Drain, Polished Nickel$649.97Polished Nickel
Belknap KS2177RX Two-Handle 2-Hole Deck Mount Bridge Bathroom Faucet with Pop-Up Drain, Brushed Brass$649.97Brushed Brass
Belknap KS2178RX Two-Handle 2-Hole Deck Mount Bridge Bathroom Faucet with Pop-Up Drain, Brushed Nickel$565.47Brushed Nickel
