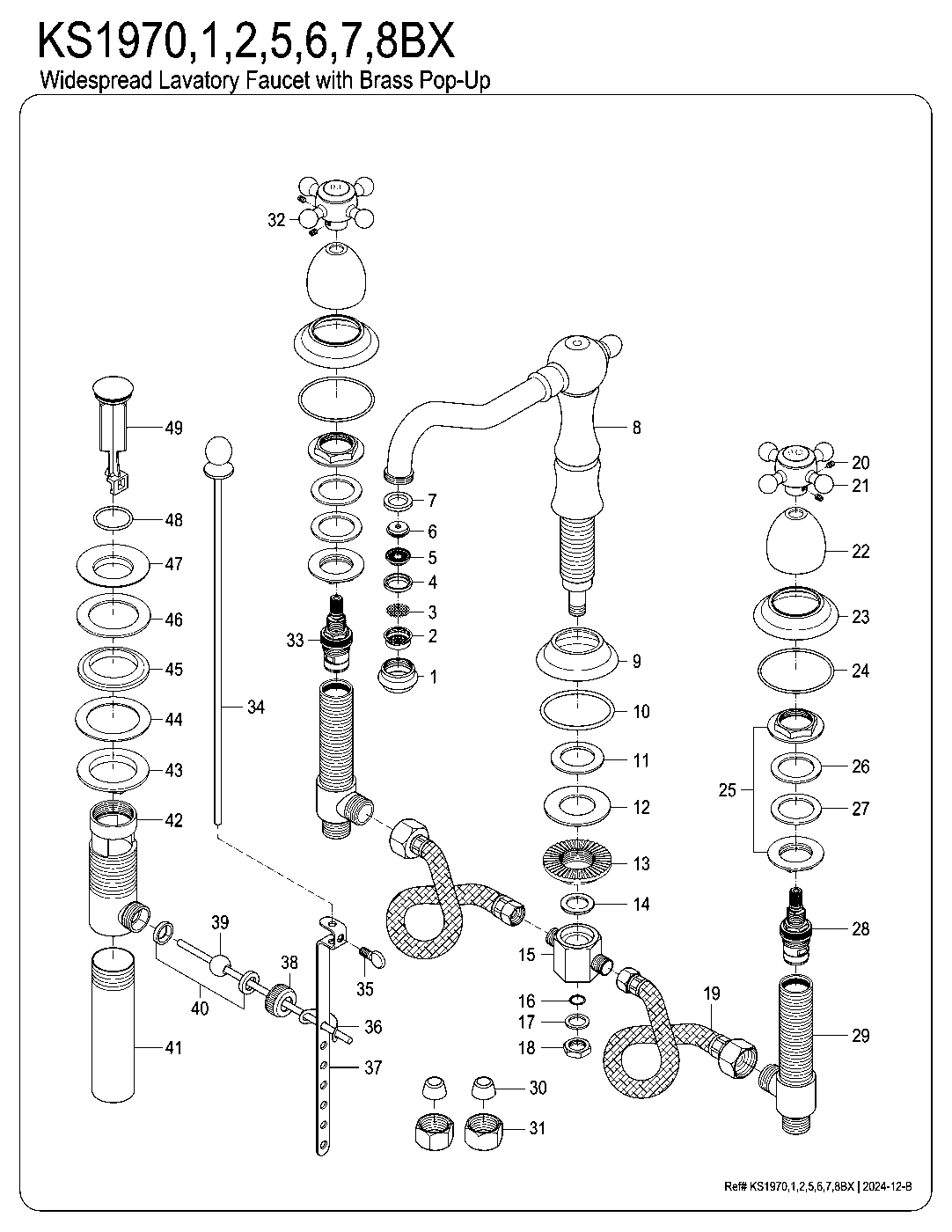

Kingston Brass KS1970BX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS1970BX parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS1970BX, KS1971BX, KS1972BX, KS1975BX, KS1976BX, KS1977BX, KS1978BX. They are the same 8 in. widespread bathroom faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS1970BX come in?
Matte Black (KS1970BX), Polished Chrome (KS1971BX), Polished Brass (KS1972BX), Oil Rubbed Bronze (KS1975BX), Polished Nickel (KS1976BX), Brushed Brass (KS1977BX), Brushed Nickel (KS1978BX).
What replacement handles fit the KS1970BX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS197xBX diagram?
Kingston numbers the parts on this diagram (47 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS197xBX in every finish
Kingston Brass KS1970BX 8 in. Widespread Bathroom Faucet, Matte Black$451.72Matte Black
Kingston Brass KS1971BX 8 in. Widespread Bathroom Faucet, Polished Chrome$318.47Polished Chrome
Heritage KS1972BX Two-Handle 3-Hole Deck Mount Widespread Bathroom Faucet with Brass Pop-Up, Polished Brass$451.72Polished Brass
Kingston Brass KS1975BX 8 in. Widespread Bathroom Faucet, Oil Rubbed Bronze$406.22Oil Rubbed Bronze
Kingston Brass KS1976BX 8 in. Widespread Bathroom Faucet, Polished Nickel$451.72Polished Nickel
Kingston Brass KS1977BX 8 in. Widespread Bathroom Faucet, Brushed Brass$451.72Brushed Brass
Kingston Brass KS1978BX 8 in. Widespread Bathroom Faucet, Brushed Nickel$406.22Brushed Nickel
