Kingston Brass Kingston Brass KS1771ALLS parts
Heritage Single Hole Kitchen Faucet. One parts diagram covers all 3 finishes of this model.
Model numbers: KS1771ALLSKS1775ALLSKS1778ALLS

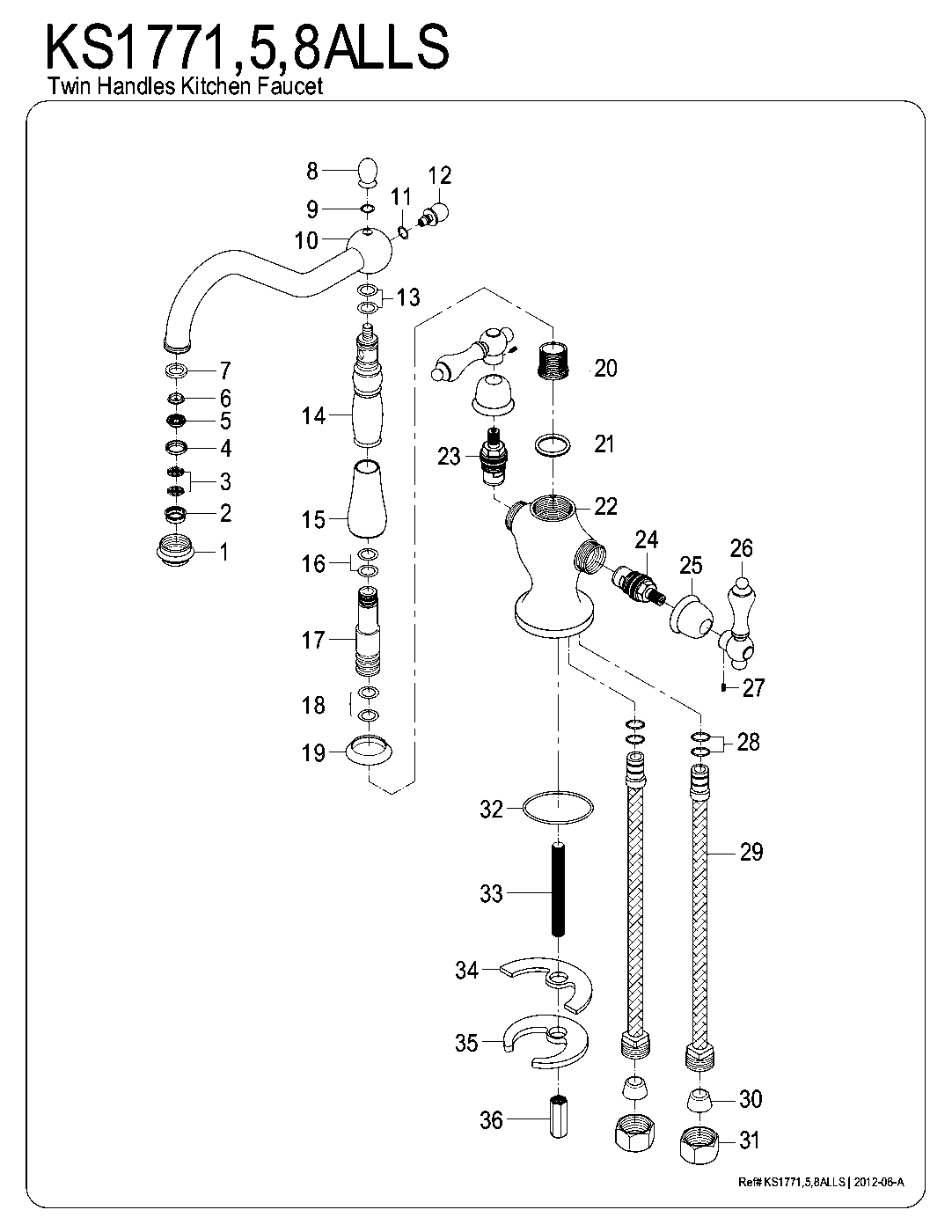

Kingston Brass KS1771ALLS exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS1771ALLS parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS1771ALLS, KS1775ALLS, KS1778ALLS. They are the same heritage single hole kitchen faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS1771ALLS come in?
Polished Chrome (KS1771ALLS), Oil Rubbed Bronze (KS1775ALLS), Brushed Nickel (KS1778ALLS).
What replacement handles fit the KS1771ALLS?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS177xALLS diagram?
Kingston numbers the parts on this diagram (33 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS177xALLS in every finish
Kingston Brass KS1771ALLS Heritage Single Hole Kitchen Faucet, Polished Chrome$276.22Polished Chrome
Kingston Brass KS1775ALLS Heritage Single Hole Kitchen Faucet, Oil Rubbed Bronze$321.72Oil Rubbed Bronze
Kingston Brass KS1778ALLS Heritage Single Hole Kitchen Faucet, Brushed Nickel$321.72Brushed Nickel
