Kingston Brass Heritage KS1601AX parts
Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Brass Pop-Up. One parts diagram covers all 4 finishes of this model.

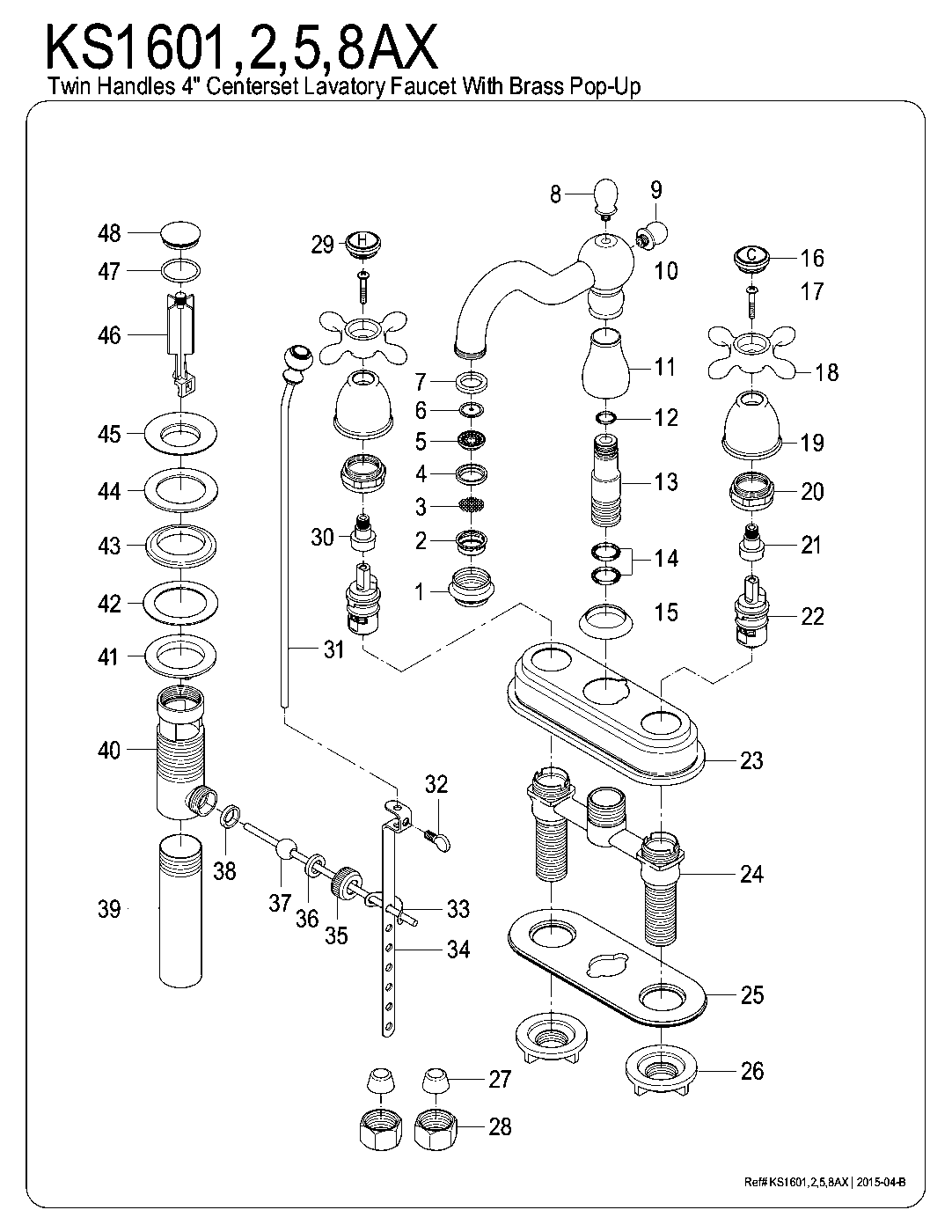

Heritage KS1601AX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramHeritage KS1601AX parts questions
Which Kingston Brass models does this Heritage parts diagram cover?
KS1601AX, KS1602AX, KS1605AX, KS1608AX. They are the same two-handle 3-hole deck mount 4" centerset bathroom faucet with brass pop-up in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS1601AX come in?
Polished Chrome (KS1601AX), Polished Brass (KS1602AX), Oil Rubbed Bronze (KS1605AX), Brushed Nickel (KS1608AX).
What replacement handles fit the KS1601AX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS160xAX diagram?
Kingston numbers the parts on this diagram (48 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Heritage KS160xAX in every finish
Heritage KS1601AX Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Brass Pop-Up, Polished Chrome$146.22Polished Chrome
Heritage KS1602AX Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Brass Pop-Up, Polished Brass$181.97Polished Brass
Heritage KS1605AX Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Brass Pop-Up, Oil Rubbed Bronze$194.97Oil Rubbed Bronze
Heritage KS1608AX Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Brass Pop-Up, Brushed Nickel$194.97Brushed Nickel
