Kingston Brass · 4" Centerset Bathroom Faucets

Kingston Brass Heritage KS1601AL parts

Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Brass Pop-Up. One parts diagram covers all 4 finishes of this model.

Model numbers: KS1601AL KS1602AL KS1605AL KS1608AL

Open the diagram Kingston’s PDF

Replacement handles for the KS160xAL

Configuration required Matched by Kingston model number. Pick the finish that matches your faucet.

Oil Rubbed Bronze

KSH1605AL
KSH1605AL Metal Lever Handle, Oil Rubbed Bronze
$32.47

Brushed Nickel

KSH1608AL
KSH1608AL Metal Lever Handle, Brushed Nickel
$32.47

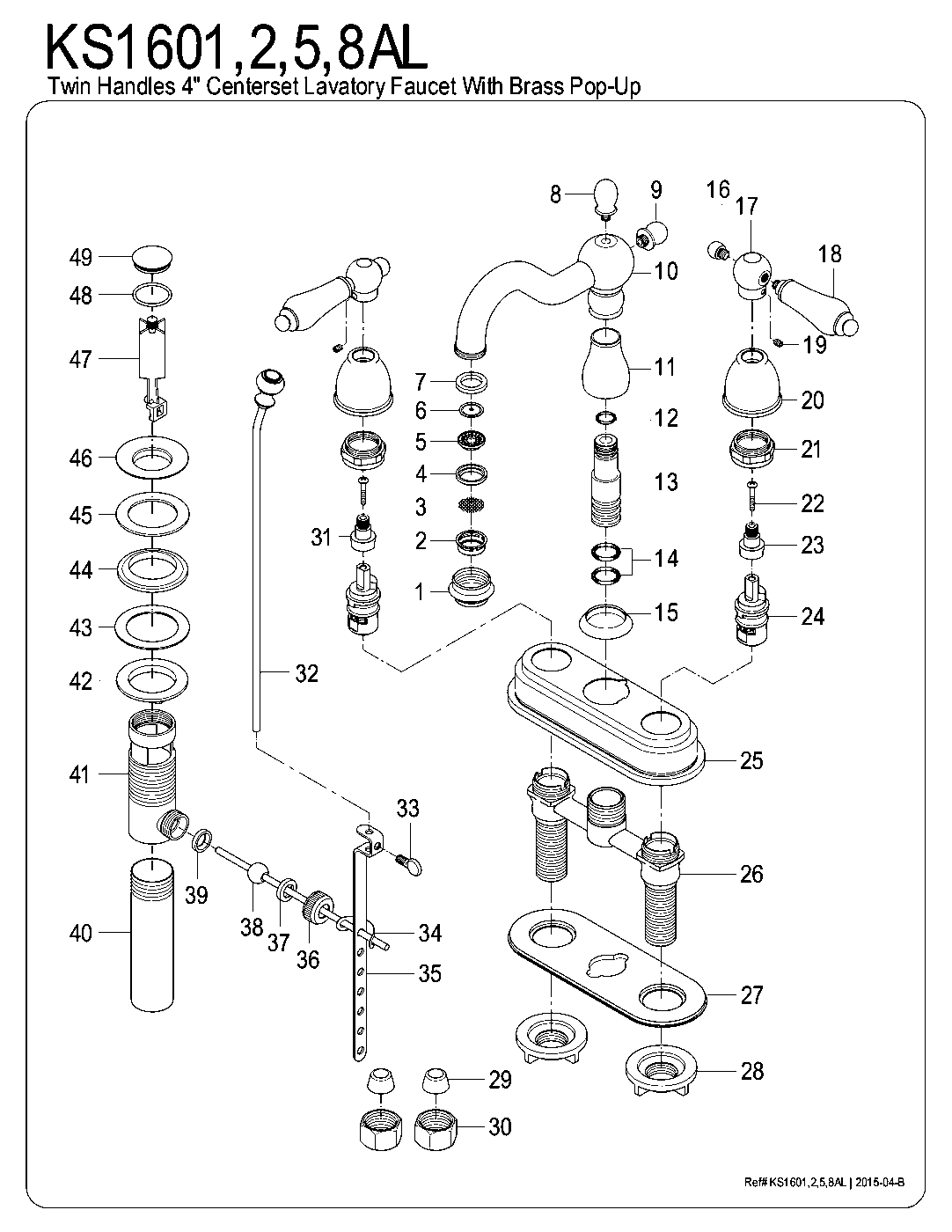

Heritage KS1601AL exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Heritage KS1601AL exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Need a part that isn’t listed?

Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.

Request a part from this diagram

Heritage KS1601AL parts questions

Which Kingston Brass models does this Heritage parts diagram cover?

KS1601AL, KS1602AL, KS1605AL, KS1608AL. They are the same two-handle 3-hole deck mount 4" centerset bathroom faucet with brass pop-up in different finishes, so they share one parts diagram.

What finishes does the Kingston Brass KS1601AL come in?

Polished Chrome (KS1601AL), Polished Brass (KS1602AL), Oil Rubbed Bronze (KS1605AL), Brushed Nickel (KS1608AL).

What replacement handles fit the KS1601AL?

Kingston's handle numbers follow the faucet model. We list 2 matching handles in every finish we carry.

How do I order a part from the KS160xAL diagram?

Kingston numbers the parts on this diagram (49 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
