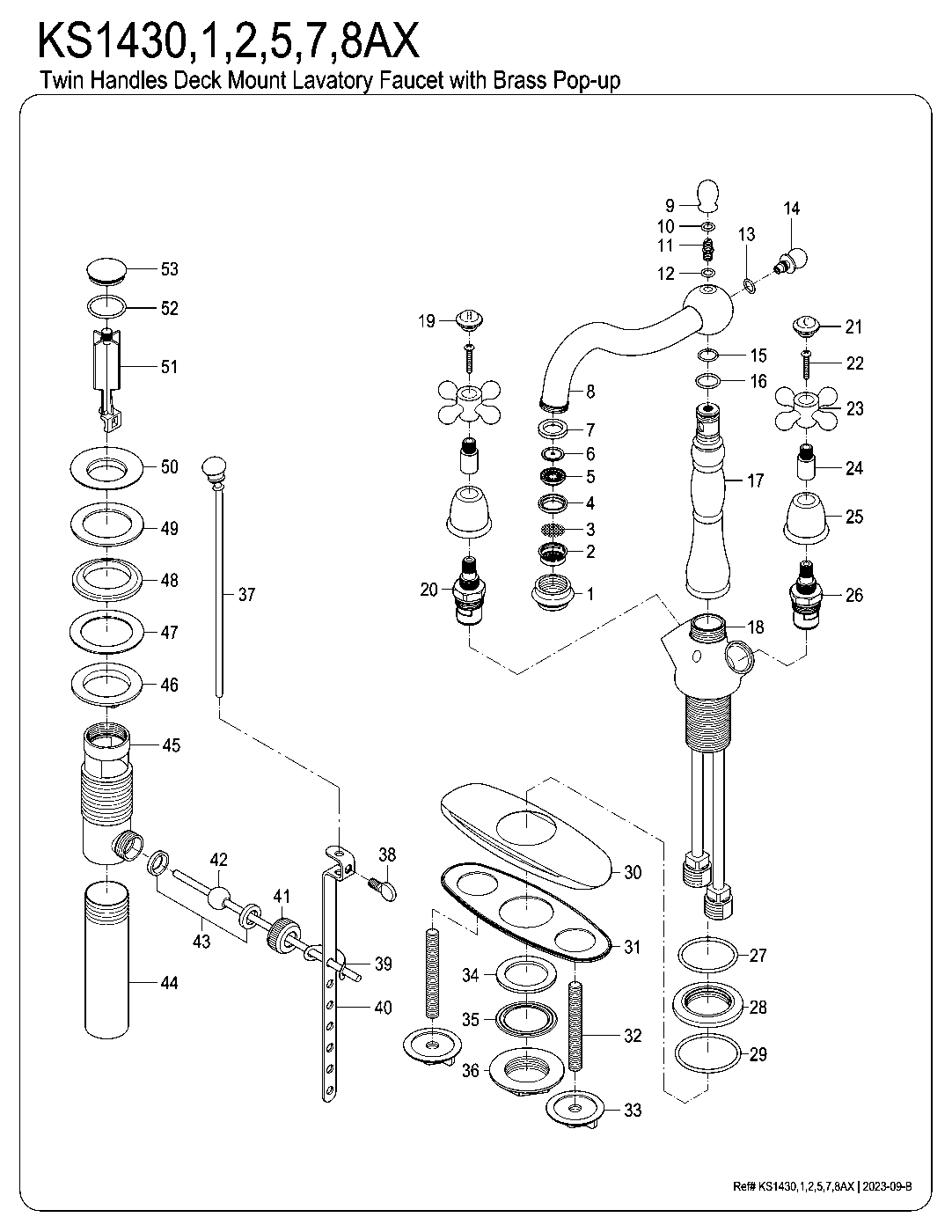

Kingston Brass KS1430AX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS1430AX parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS1430AX, KS1431AX, KS1432AX, KS1435AX, KS1437AX, KS1438AX. They are the same heritage two-handle bathroom faucet with brass pop-up and cover plate in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS1430AX come in?
Matte Black (KS1430AX), Polished Chrome (KS1431AX), Polished Brass (KS1432AX), Oil Rubbed Bronze (KS1435AX), Brushed Brass (KS1437AX), Brushed Nickel (KS1438AX).
What replacement handles fit the KS1430AX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS143xAX diagram?
Kingston numbers the parts on this diagram (52 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS143xAX in every finish
Kingston Brass KS1430AX Heritage Two-Handle Bathroom Faucet with Brass Pop-Up and Cover Plate, Matte Black$311.97Matte Black
Kingston Brass KS1431AX Heritage Two-Handle Bathroom Faucet with Brass Pop-Up and Cover Plate, Polished Chrome$237.22Polished Chrome
Kingston Brass KS1432AX Heritage Two-Handle Bathroom Faucet with Brass Pop-Up and Cover Plate, Polished Brass$292.47Polished Brass
Kingston Brass KS1435AX Heritage Two-Handle Bathroom Faucet with Brass Pop-Up and Cover Plate, Oil Rubbed Bronze$285.97Oil Rubbed Bronze
Kingston Brass KS1437AX Heritage Two-Handle Bathroom Faucet with Brass Pop-Up and Cover Plate, Brushed Brass$311.97Brushed Brass
Heritage KS1438AX Two-Handle 1-or-3 Hole Deck Mount Bathroom Faucet with Brass Pop-Up, Brushed Nickel$285.97Brushed Nickel
