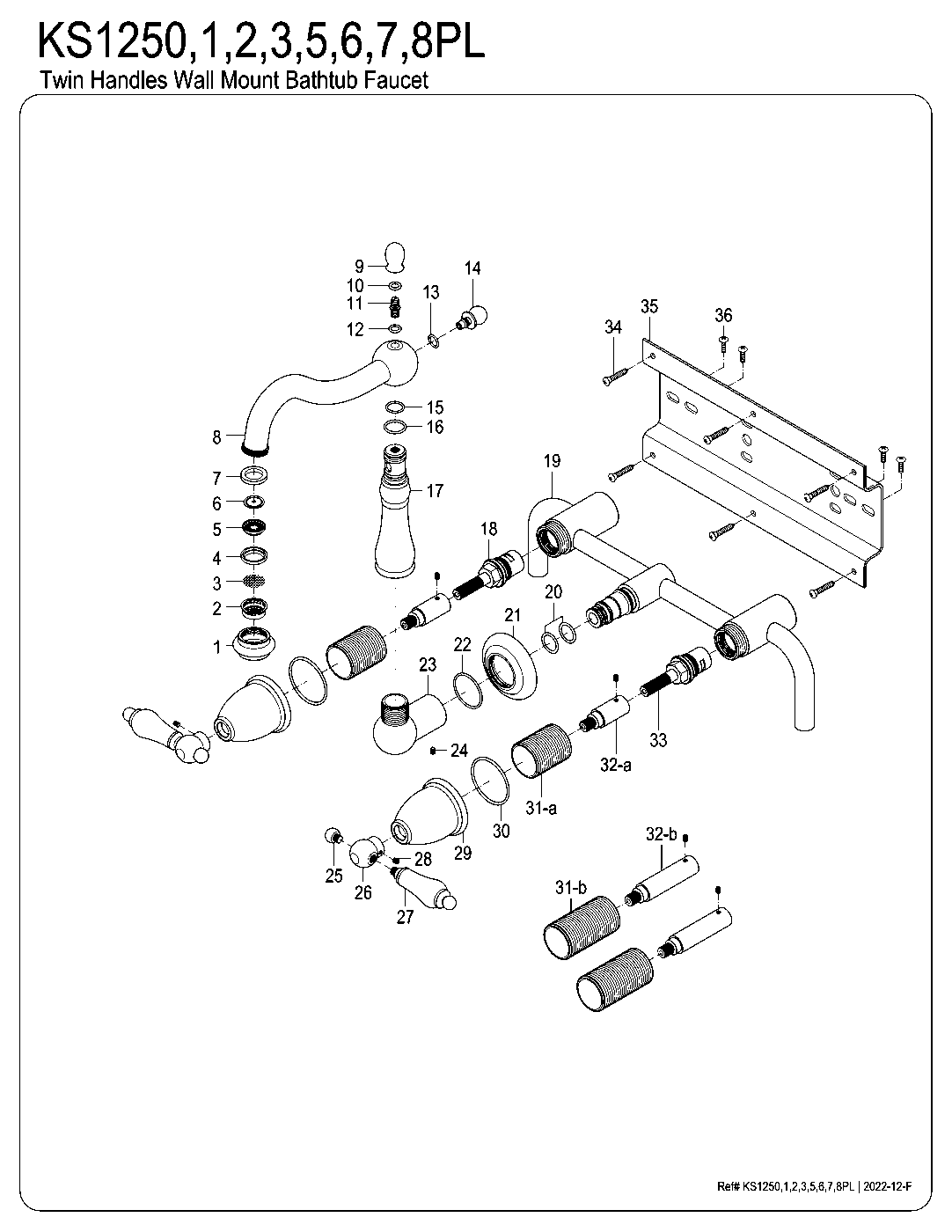

Heritage KS1250PL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramHeritage KS1250PL parts questions
Which Kingston Brass models does this Heritage parts diagram cover?
KS1250PL, KS1251PL, KS1252PL, KS1253PL, KS1255PL, KS1256PL, KS1257PL, KS1258PL. They are the same two-handle 3-hole wall mount bathroom faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS1250PL come in?
Matte Black (KS1250PL), Polished Chrome (KS1251PL), Polished Brass (KS1252PL), Antique Brass (KS1253PL), Oil Rubbed Bronze (KS1255PL), Polished Nickel (KS1256PL), Brushed Brass (KS1257PL), Brushed Nickel (KS1258PL).
What replacement handles fit the KS1250PL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS125xPL diagram?
Kingston numbers the parts on this diagram (32 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Heritage KS125xPL in every finish
Heritage KS1250PL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Matte Black$334.72Matte Black
Heritage KS1251PL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Chrome$253.47Polished Chrome
Heritage KS1252PL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Brass$324.97Polished Brass
Heritage KS1253PL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Antique Brass$354.22Antique Brass
Heritage KS1255PL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Oil Rubbed Bronze$292.47Oil Rubbed Bronze
Heritage KS1256PL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Nickel$324.97Polished Nickel
Heritage KS1257PL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Brushed Brass$360.72Brushed Brass
Heritage KS1258PL Two-Handle 3-Hole Wall Mount Bathroom Faucet, Brushed Nickel$292.47Brushed Nickel
