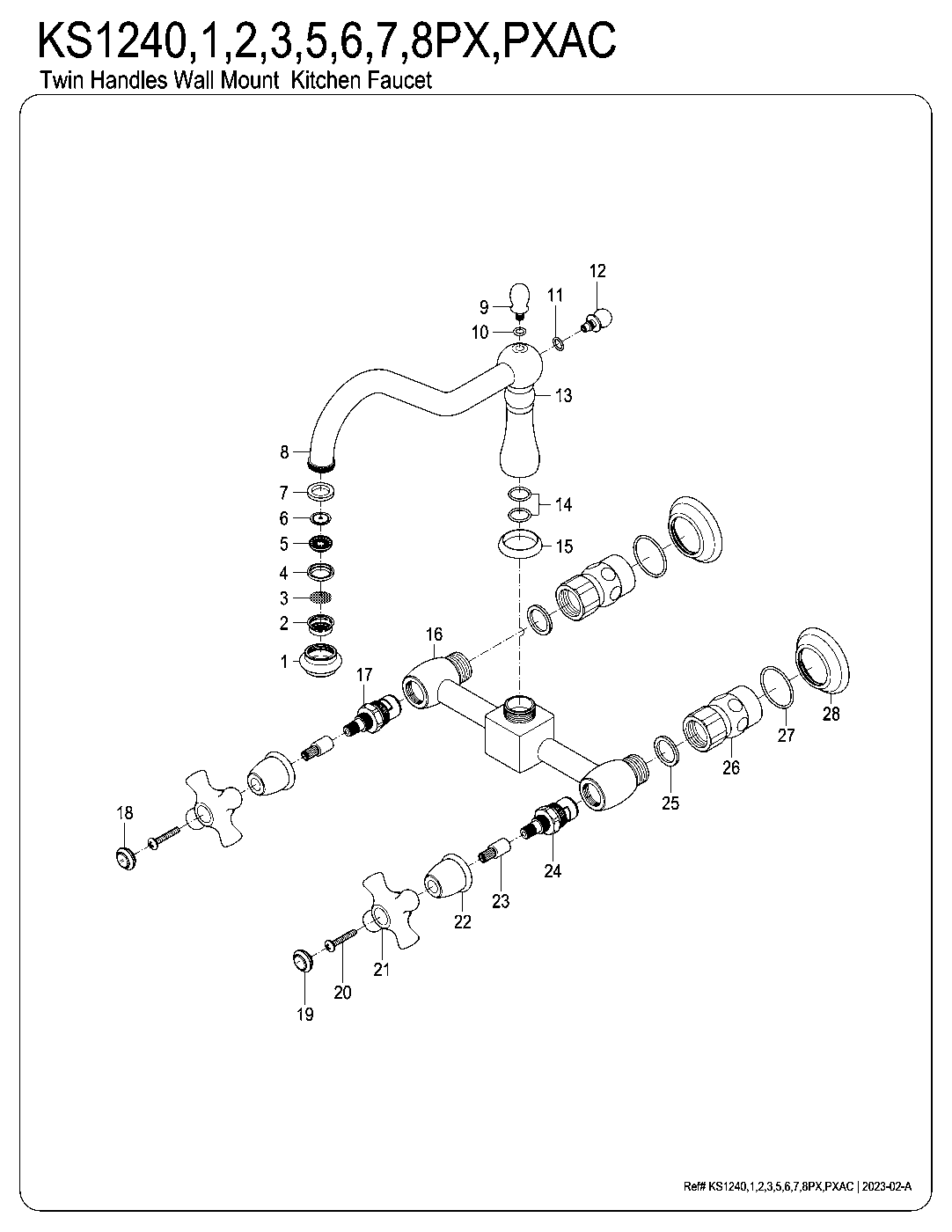

Heritage KS1240PX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramHeritage KS1240PX parts questions
Which Kingston Brass models does this Heritage parts diagram cover?
KS1240PX, KS1241PX, KS1243PX, KS1245PX, KS1246PX, KS1247PX, KS1248PX. They are the same two-handle 2-hole wall mount bridge kitchen faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS1240PX come in?
Matte Black (KS1240PX), Polished Chrome (KS1241PX), Antique Brass (KS1243PX), Oil Rubbed Bronze (KS1245PX), Polished Nickel (KS1246PX), Brushed Brass (KS1247PX), Brushed Nickel (KS1248PX).
What replacement handles fit the KS1240PX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS124xPX diagram?
Kingston numbers the parts on this diagram (24 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Heritage KS124xPX in every finish
Kingston Brass KS1240PX Heritage Wall Mount Bridge Kitchen Faucet, Matte Black$305.47Matte Black
Heritage KS1241PX Two-Handle 2-Hole Wall Mount Bridge Kitchen Faucet, Polished Chrome$227.47Polished Chrome
Heritage KS1243PX Two-Handle 2-Hole Wall Mount Bridge Kitchen Faucet, Antique Brass$263.22Antique Brass
Heritage KS1245PX Two-Handle 2-Hole Wall Mount Bridge Kitchen Faucet, Oil Rubbed Bronze$259.97Oil Rubbed Bronze
Heritage KS1246PX Two-Handle 2-Hole Wall Mount Bridge Kitchen Faucet, Polished Nickel$266.47Polished Nickel
Heritage KS1247PX Two-Handle 2-Hole Wall Mount Bridge Kitchen Faucet, Brushed Brass$305.47Brushed Brass
Heritage KS1248PX Two-Handle 2-Hole Wall Mount Bridge Kitchen Faucet, Brushed Nickel$259.97Brushed Nickel
