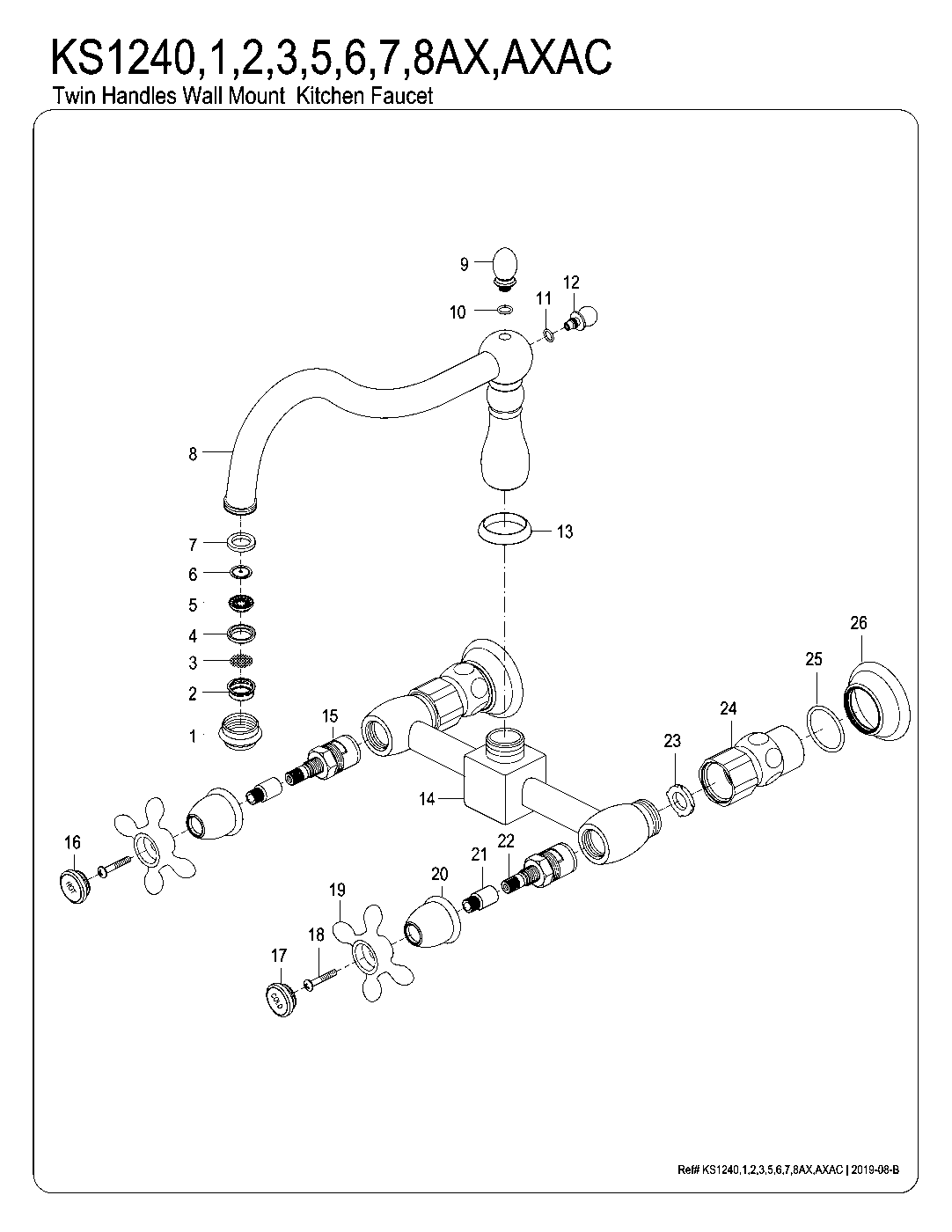

Kingston Brass KS1240AX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS1240AX parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS1240AX, KS1241AX, KS1242AX, KS1243AX, KS1245AX, KS1246AX, KS1247AX, KS1248AX. They are the same heritage wall mount bridge kitchen faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS1240AX come in?
Matte Black (KS1240AX), Polished Chrome (KS1241AX), Polished Brass (KS1242AX), Antique Brass (KS1243AX), Oil Rubbed Bronze (KS1245AX), Polished Nickel (KS1246AX), Brushed Brass (KS1247AX), Brushed Nickel (KS1248AX).
What replacement handles fit the KS1240AX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS124xAX diagram?
Kingston numbers the parts on this diagram (23 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS124xAX in every finish
Kingston Brass KS1240AX Heritage Wall Mount Bridge Kitchen Faucet, Matte Black$315.22Matte Black
Kingston Brass KS1241AX Heritage Wall Mount Bridge Kitchen Faucet, Polished Chrome$233.97Polished Chrome
Kingston Brass KS1242AX Heritage Wall Mount Bridge Kitchen Faucet, Polished Brass$263.22Polished Brass
Kingston Brass KS1243AX Heritage Wall Mount Bridge Kitchen Faucet, Antique Brass$266.47Antique Brass
Kingston Brass KS1245AX Heritage Wall Mount Bridge Kitchen Faucet, Oil Rubbed Bronze$292.47Oil Rubbed Bronze
Kingston Brass KS1246AX Heritage Wall Mount Bridge Kitchen Faucet, Polished Nickel$269.72Polished Nickel
Heritage KS1247AX Two-Handle 2-Hole Wall Mount Bridge Kitchen Faucet, Brushed Brass$305.47Brushed Brass
Kingston Brass KS1248AX Heritage Wall Mount Bridge Kitchen Faucet, Brushed Nickel$292.47Brushed Nickel
