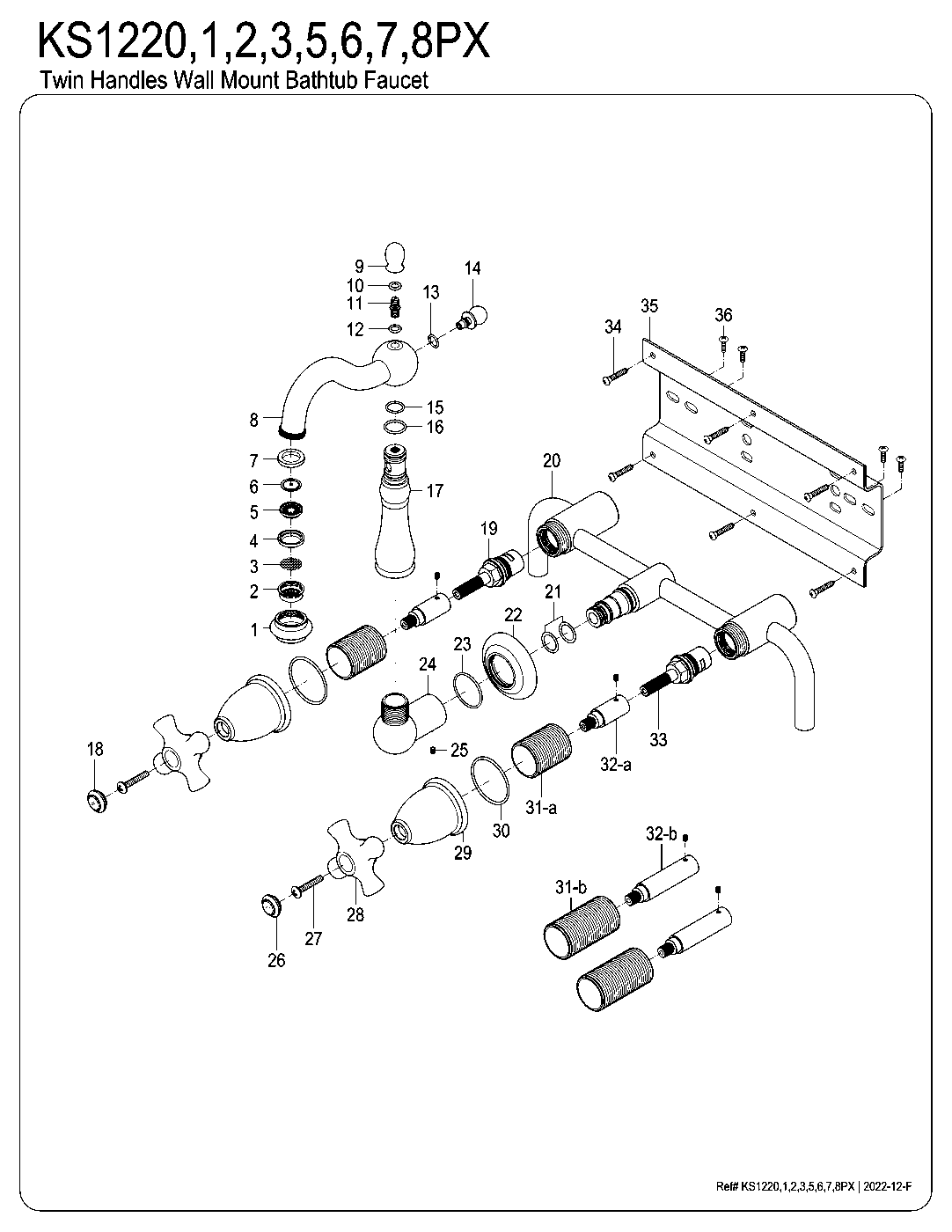

Heritage KS1220PX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramHeritage KS1220PX parts questions
Which Kingston Brass models does this Heritage parts diagram cover?
KS1220PX, KS1221PX, KS1222PX, KS1223PX, KS1225PX, KS1227PX, KS1228PX. They are the same two-handle 3-hole wall mount bathroom faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS1220PX come in?
Matte Black (KS1220PX), Polished Chrome (KS1221PX), Polished Brass (KS1222PX), Antique Brass (KS1223PX), Oil Rubbed Bronze (KS1225PX), Brushed Brass (KS1227PX), Brushed Nickel (KS1228PX).
What replacement handles fit the KS1220PX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS122xPX diagram?
Kingston numbers the parts on this diagram (31 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Heritage KS122xPX in every finish
Heritage KS1220PX Two-Handle 3-Hole Wall Mount Bathroom Faucet, Matte Black$331.47Matte Black
Heritage KS1221PX Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Chrome$253.47Polished Chrome
Heritage KS1222PX Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Brass$354.22Polished Brass
Heritage KS1223PX Two-Handle 3-Hole Wall Mount Bathroom Faucet, Antique Brass$341.22Antique Brass
Heritage KS1225PX Two-Handle 3-Hole Wall Mount Bathroom Faucet, Oil Rubbed Bronze$302.22Oil Rubbed Bronze
Heritage KS1227PX Two-Handle 3-Hole Wall Mount Bathroom Faucet, Brushed Brass$350.97Brushed Brass
Heritage KS1228PX Two-Handle 3-Hole Wall Mount Bathroom Faucet, Brushed Nickel$302.22Brushed Nickel
