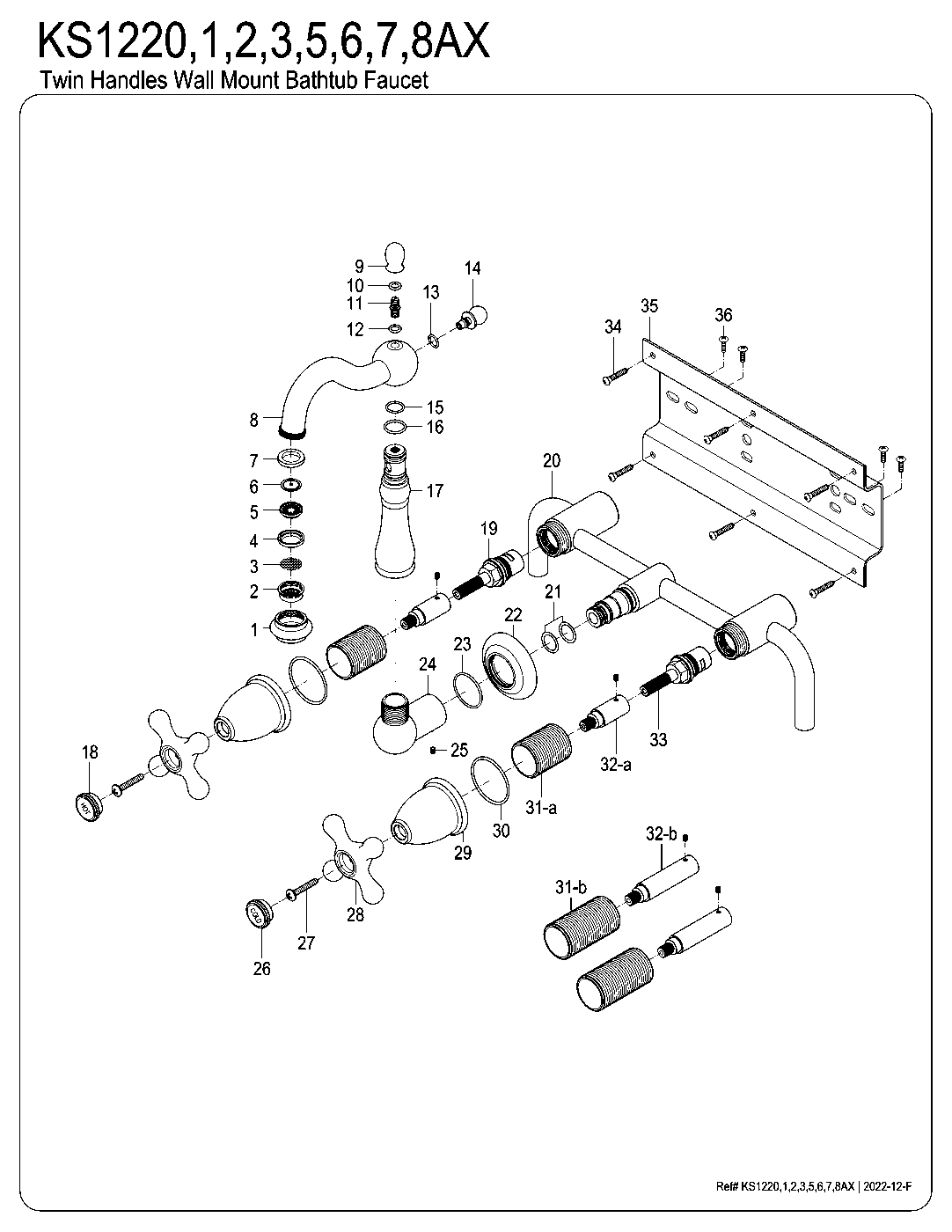

Kingston Brass KS1220AX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS1220AX parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS1220AX, KS1221AX, KS1222AX, KS1223AX, KS1225AX, KS1226AX, KS1227AX, KS1228AX. They are the same heritage wall mount bathroom faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS1220AX come in?
Matte Black (KS1220AX), Polished Chrome (KS1221AX), Polished Brass (KS1222AX), Antique Brass (KS1223AX), Oil Rubbed Bronze (KS1225AX), Polished Nickel (KS1226AX), Brushed Brass (KS1227AX), Brushed Nickel (KS1228AX).
What replacement handles fit the KS1220AX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS122xAX diagram?
Kingston numbers the parts on this diagram (31 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS122xAX in every finish
Kingston Brass KS1220AX Heritage Wall Mount Bathroom Faucet, Matte Black$341.22Matte Black
Kingston Brass KS1221AX Heritage Wall Mount Bathroom Faucet, Polished Chrome$269.72Polished Chrome
Heritage KS1222AX Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Brass$347.72Polished Brass
Kingston Brass KS1223AX Heritage Wall Mount Bathroom Faucet, Antique Brass$344.47Antique Brass
Kingston Brass KS1225AX Heritage Wall Mount Bathroom Faucet, Oil Rubbed Bronze$308.72Oil Rubbed Bronze
Heritage KS1226AX Two-Handle 3-Hole Wall Mount Bathroom Faucet, Polished Nickel$341.22Polished Nickel
Kingston Brass KS1227AX Heritage Wall Mount Bathroom Faucet, Brushed Brass$331.47Brushed Brass
Heritage KS1228AX Two-Handle 3-Hole Wall Mount Bathroom Faucet, Brushed Nickel$308.72Brushed Nickel
