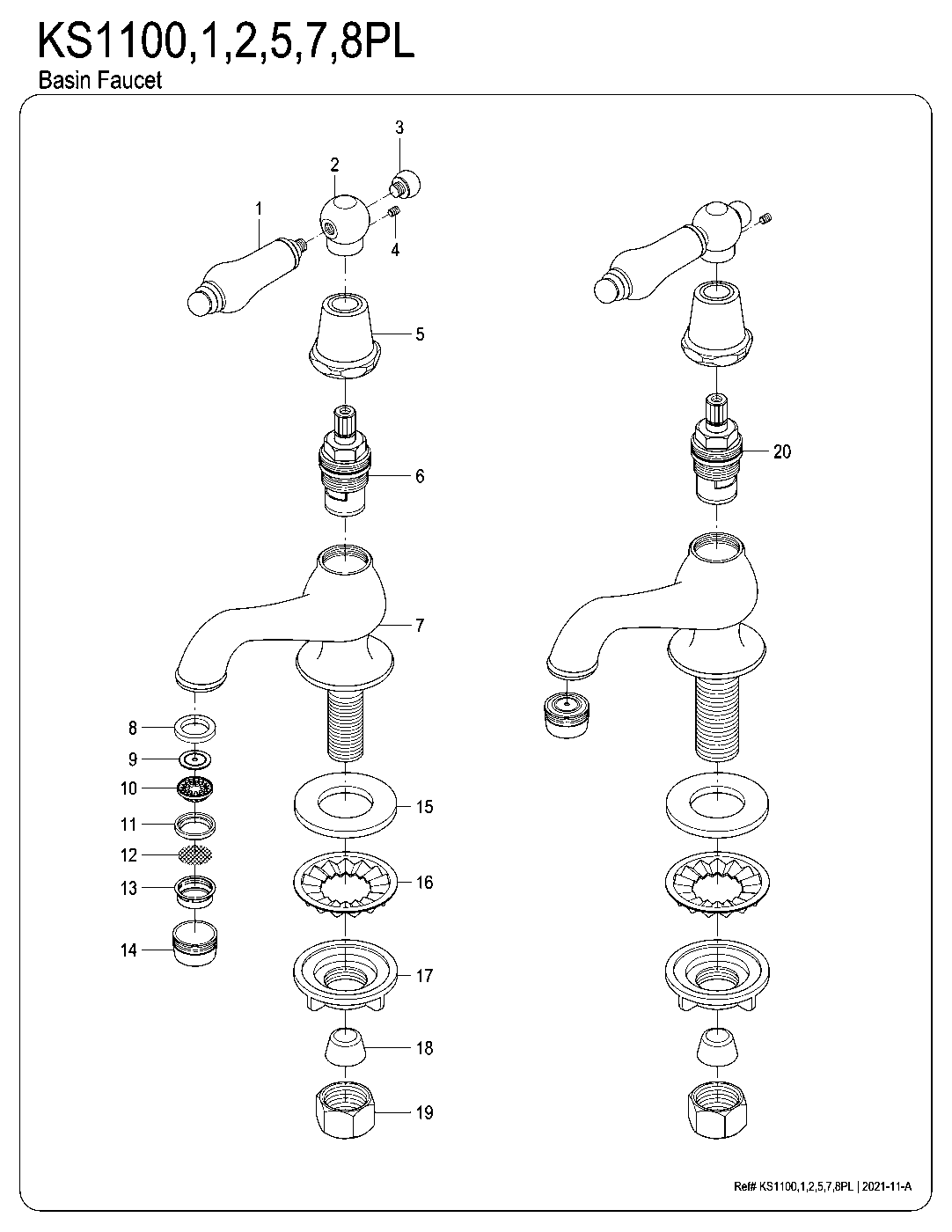

Heritage KS1100PL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramHeritage KS1100PL parts questions
Which Kingston Brass models does this Heritage parts diagram cover?
KS1100PL, KS1101PL, KS1102PL, KS1105PL, KS1107PL, KS1108PL. They are the same two-handle deck mount basin tap faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS1100PL come in?
Matte Black (KS1100PL), Polished Chrome (KS1101PL), Polished Brass (KS1102PL), Oil Rubbed Bronze (KS1105PL), Brushed Brass (KS1107PL), Brushed Nickel (KS1108PL).
What replacement handles fit the KS1100PL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS110xPL diagram?
Kingston numbers the parts on this diagram (17 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Heritage KS110xPL in every finish
Heritage KS1100PL Two-Handle Deck Mount Basin Tap Faucet, Matte Black$243.72Matte Black
Heritage KS1101PL Two-Handle Deck Mount Basin Tap Faucet, Polished Chrome$159.22Polished Chrome
Heritage KS1102PL Two-Handle Deck Mount Basin Tap Faucet, Polished Brass$181.97Polished Brass
Heritage KS1105PL Two-Handle Deck Mount Basin Tap Faucet, Oil Rubbed Bronze$188.47Oil Rubbed Bronze
Heritage KS1107PL Two-Handle Deck Mount Basin Tap Faucet, Brushed Brass$243.72Brushed Brass
Heritage KS1108PL Two-Handle Deck Mount Basin Tap Faucet, Brushed Nickel$188.47Brushed Nickel
