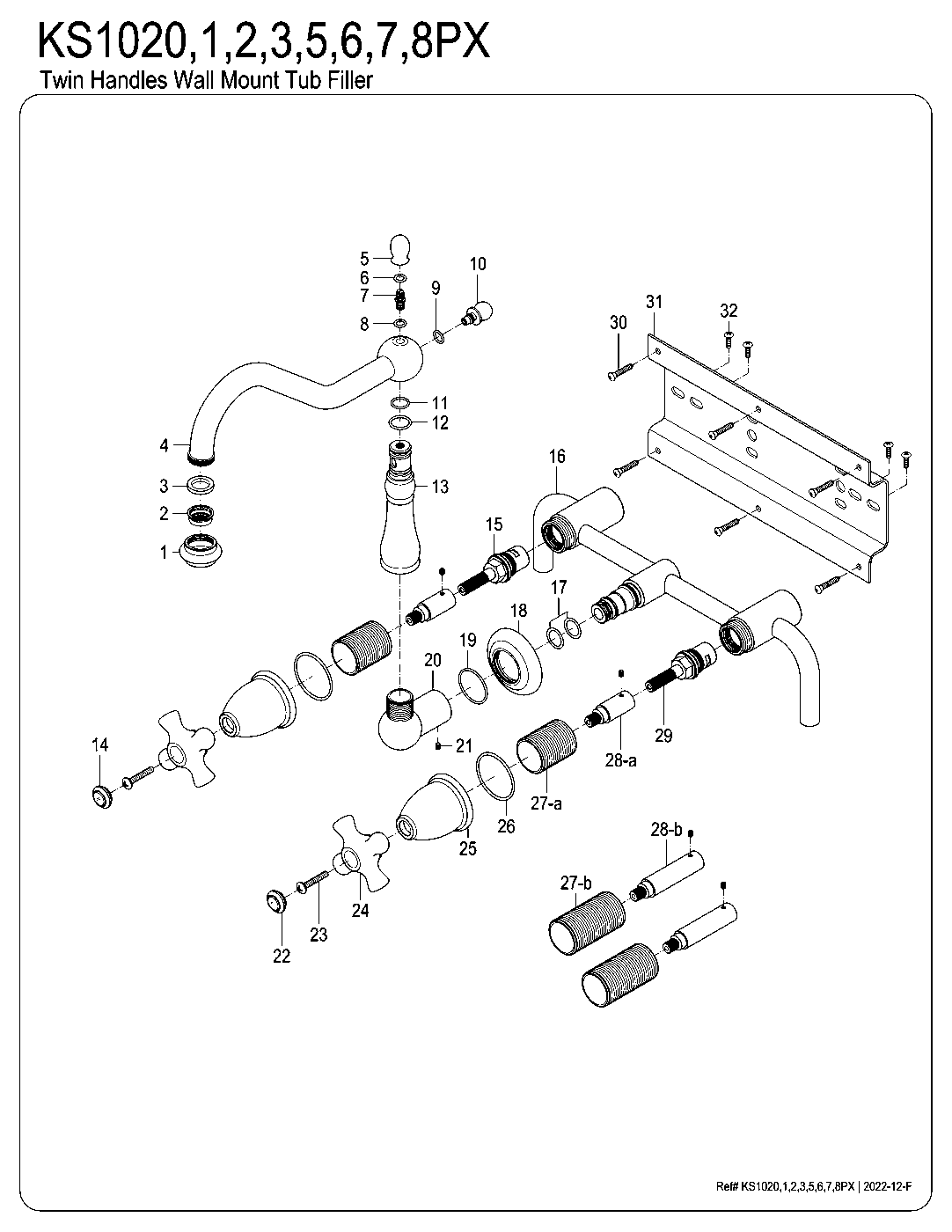

Heritage KS1020PX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramHeritage KS1020PX parts questions
Which Kingston Brass models does this Heritage parts diagram cover?
KS1020PX, KS1021PX, KS1022PX, KS1023PX, KS1025PX, KS1026PX, KS1027PX, KS1028PX. They are the same two-handle 3-hole wall mount roman tub faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS1020PX come in?
Matte Black (KS1020PX), Polished Chrome (KS1021PX), Polished Brass (KS1022PX), Antique Brass (KS1023PX), Oil Rubbed Bronze (KS1025PX), Polished Nickel (KS1026PX), Brushed Brass (KS1027PX), Brushed Nickel (KS1028PX).
What replacement handles fit the KS1020PX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS102xPX diagram?
Kingston numbers the parts on this diagram (28 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Heritage KS102xPX in every finish
Heritage KS1020PX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Matte Black$389.97Matte Black
Heritage KS1021PX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Chrome$305.47Polished Chrome
Heritage KS1022PX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Brass$389.97Polished Brass
Heritage KS1023PX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Antique Brass$389.97Antique Brass
Heritage KS1025PX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Oil Rubbed Bronze$357.47Oil Rubbed Bronze
Heritage KS1026PX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Polished Nickel$389.97Polished Nickel
Heritage KS1027PX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Brass$389.97Brushed Brass
Heritage KS1028PX Two-Handle 3-Hole Wall Mount Roman Tub Faucet, Brushed Nickel$357.47Brushed Nickel
