Kingston Brass Whitaker KL5330ORB parts
5/8-Inch OD Comp x 3/8-Inch OD Comp Quarter-Turn Angle Stop Valve. One parts diagram covers all 1 finish of this model.
Model numbers: KL5330ORB

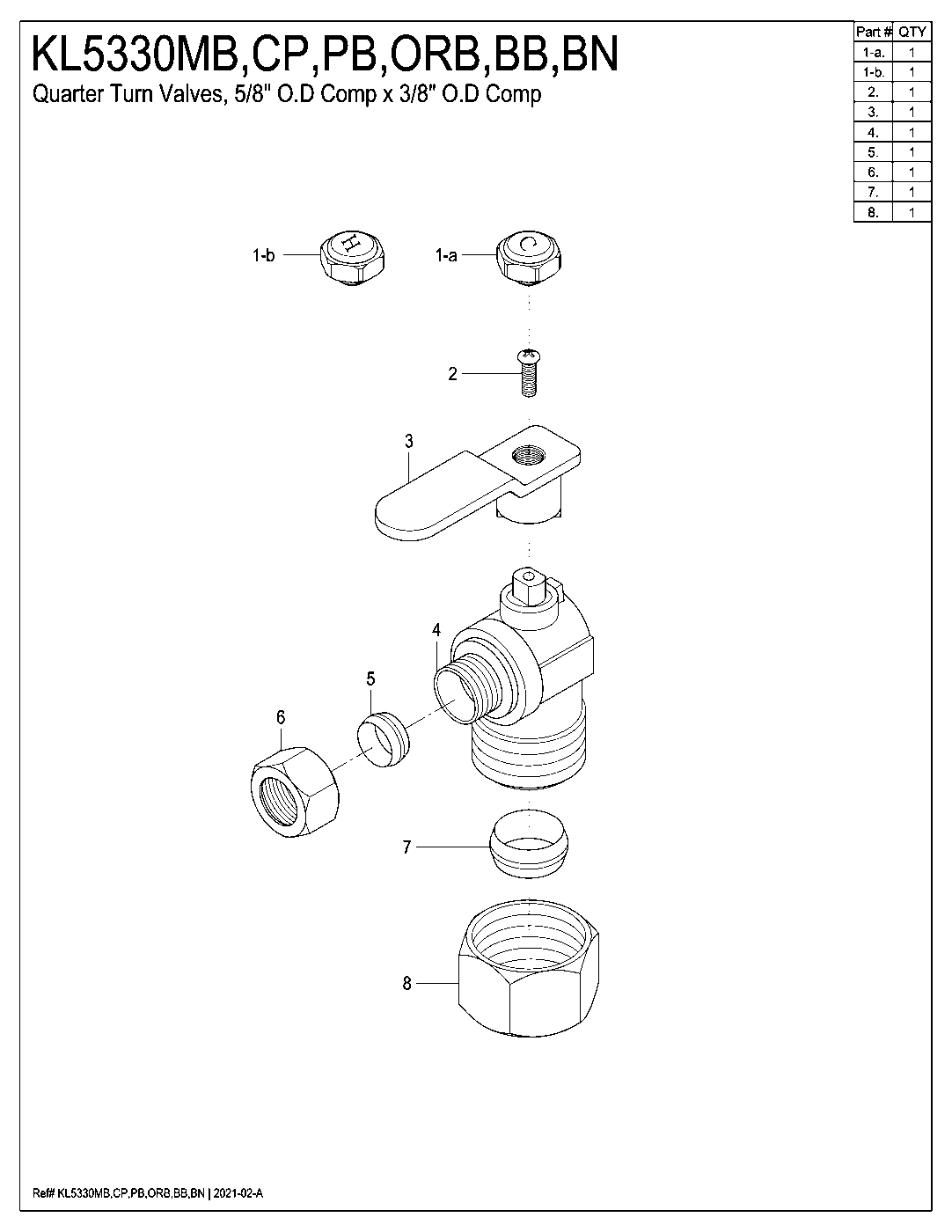

Whitaker KL5330ORB exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramWhitaker KL5330ORB parts questions
Which Kingston Brass models does this Whitaker parts diagram cover?
KL5330ORB. They are the same 5/8-inch od comp x 3/8-inch od comp quarter-turn angle stop valve in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KL5330ORB come in?
Oil Rubbed Bronze (KL5330ORB).
What replacement handles fit the KL5330ORB?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KL533xORB diagram?
Kingston numbers the parts on this diagram (7 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
