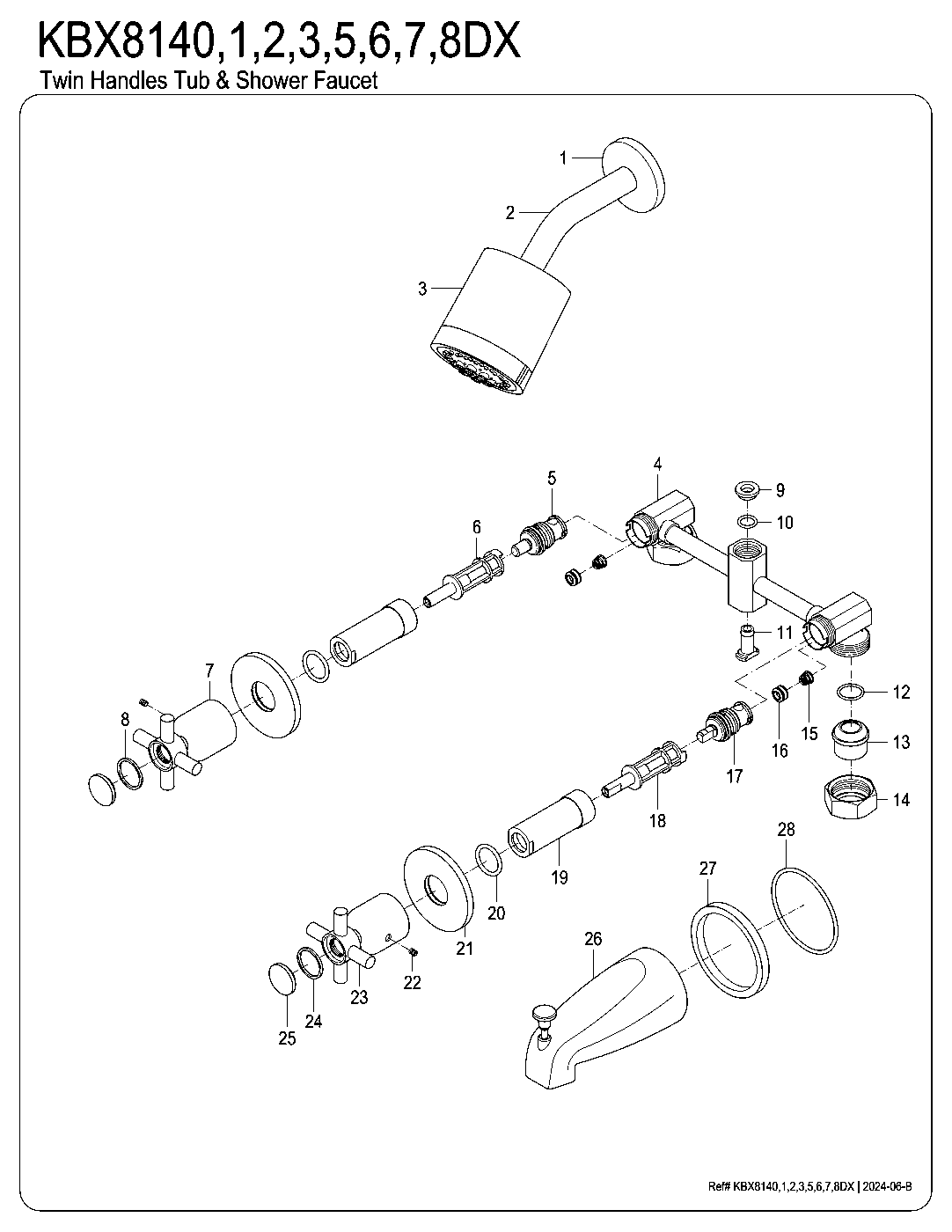

Concord KBX8140DX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramConcord KBX8140DX parts questions
Which Kingston Brass models does this Concord parts diagram cover?
KBX8140DX, KBX8141DX, KBX8142DX, KBX8143DX, KBX8145DX, KBX8146DX, KBX8147DX, KBX8148DX. They are the same two-handle 4-hole wall mount tub and shower faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KBX8140DX come in?
Matte Black (KBX8140DX), Polished Chrome (KBX8141DX), Polished Brass (KBX8142DX), Antique Brass (KBX8143DX), Oil Rubbed Bronze (KBX8145DX), Polished Nickel (KBX8146DX), Brushed Brass (KBX8147DX), Brushed Nickel (KBX8148DX).
What replacement handles fit the KBX8140DX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KBX814xDX diagram?
Kingston numbers the parts on this diagram (25 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Concord KBX814xDX in every finish
Concord KBX8140DX Two-Handle 4-Hole Wall Mount Tub and Shower Faucet, Matte Black$289.22Matte Black
Concord KBX8141DX Two-Handle 4-Hole Wall Mount Tub and Shower Faucet, Polished Chrome$204.72Polished Chrome
Concord KBX8142DX Two-Handle 4-Hole Wall Mount Tub and Shower Faucet, Polished Brass$243.72Polished Brass
Concord KBX8143DX Two-Handle 4-Hole Wall Mount Tub and Shower Faucet, Antique Brass$289.22Antique Brass
Concord KBX8145DX Two-Handle 4-Hole Wall Mount Tub and Shower Faucet, Oil Rubbed Bronze$250.22Oil Rubbed Bronze
Concord KBX8146DX Two-Handle 4-Hole Wall Mount Tub and Shower Faucet, Polished Nickel$289.22Polished Nickel
Concord KBX8147DX Two-Handle 4-Hole Wall Mount Tub and Shower Faucet, Brushed Brass$289.22Brushed Brass
Concord KBX8148DX Two-Handle 4-Hole Wall Mount Tub and Shower Faucet, Brushed Nickel$250.22Brushed Nickel
