Kingston Brass NuvoFusion KBX8130NDL parts
Three-Handle 5-Hole Wall Mount Tub and Shower Faucet. One parts diagram covers all 8 finishes of this model.
Model numbers: KBX8130NDLKBX8131NDLKBX8132NDLKBX8133NDLKBX8135NDLKBX8136NDLKBX8137NDLKBX8138NDL

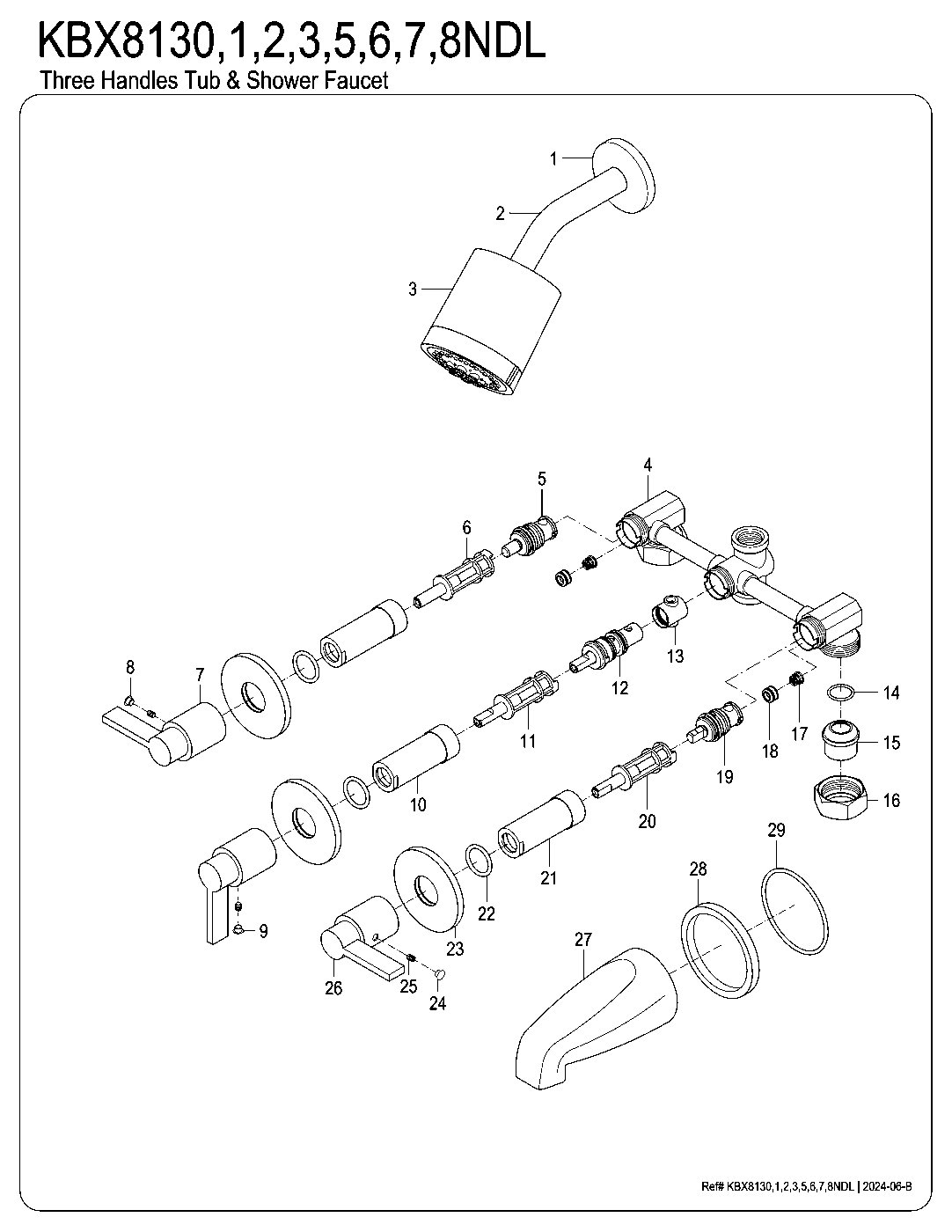

NuvoFusion KBX8130NDL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramNuvoFusion KBX8130NDL parts questions
Which Kingston Brass models does this NuvoFusion parts diagram cover?
KBX8130NDL, KBX8131NDL, KBX8132NDL, KBX8133NDL, KBX8135NDL, KBX8136NDL, KBX8137NDL, KBX8138NDL. They are the same three-handle 5-hole wall mount tub and shower faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KBX8130NDL come in?
Matte Black (KBX8130NDL), Polished Chrome (KBX8131NDL), Polished Brass (KBX8132NDL), Antique Brass (KBX8133NDL), Oil Rubbed Bronze (KBX8135NDL), Polished Nickel (KBX8136NDL), Brushed Brass (KBX8137NDL), Brushed Nickel (KBX8138NDL).
What replacement handles fit the KBX8130NDL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KBX813xNDL diagram?
Kingston numbers the parts on this diagram (25 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
NuvoFusion KBX813xNDL in every finish
NuvoFusion KBX8130NDL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Matte Black$259.97Matte Black
NuvoFusion KBX8131NDL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Polished Chrome$198.22Polished Chrome
NuvoFusion KBX8132NDL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Polished Brass$233.97Polished Brass
NuvoFusion KBX8133NDL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Antique Brass$266.47Antique Brass
NuvoFusion KBX8135NDL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Oil Rubbed Bronze$253.47Oil Rubbed Bronze
NuvoFusion KBX8136NDL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Polished Nickel$266.47Polished Nickel
NuvoFusion KBX8137NDL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Brushed Brass$272.97Brushed Brass
NuvoFusion KBX8138NDL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Brushed Nickel$253.47Brushed Nickel
