Kingston Brass Manhattan KBX8130CML parts
Three-Handle 5-Hole Wall Mount Tub and Shower Faucet. One parts diagram covers all 6 finishes of this model.
Model numbers: KBX8130CMLKBX8131CMLKBX8135CMLKBX8136CMLKBX8137CMLKBX8138CML

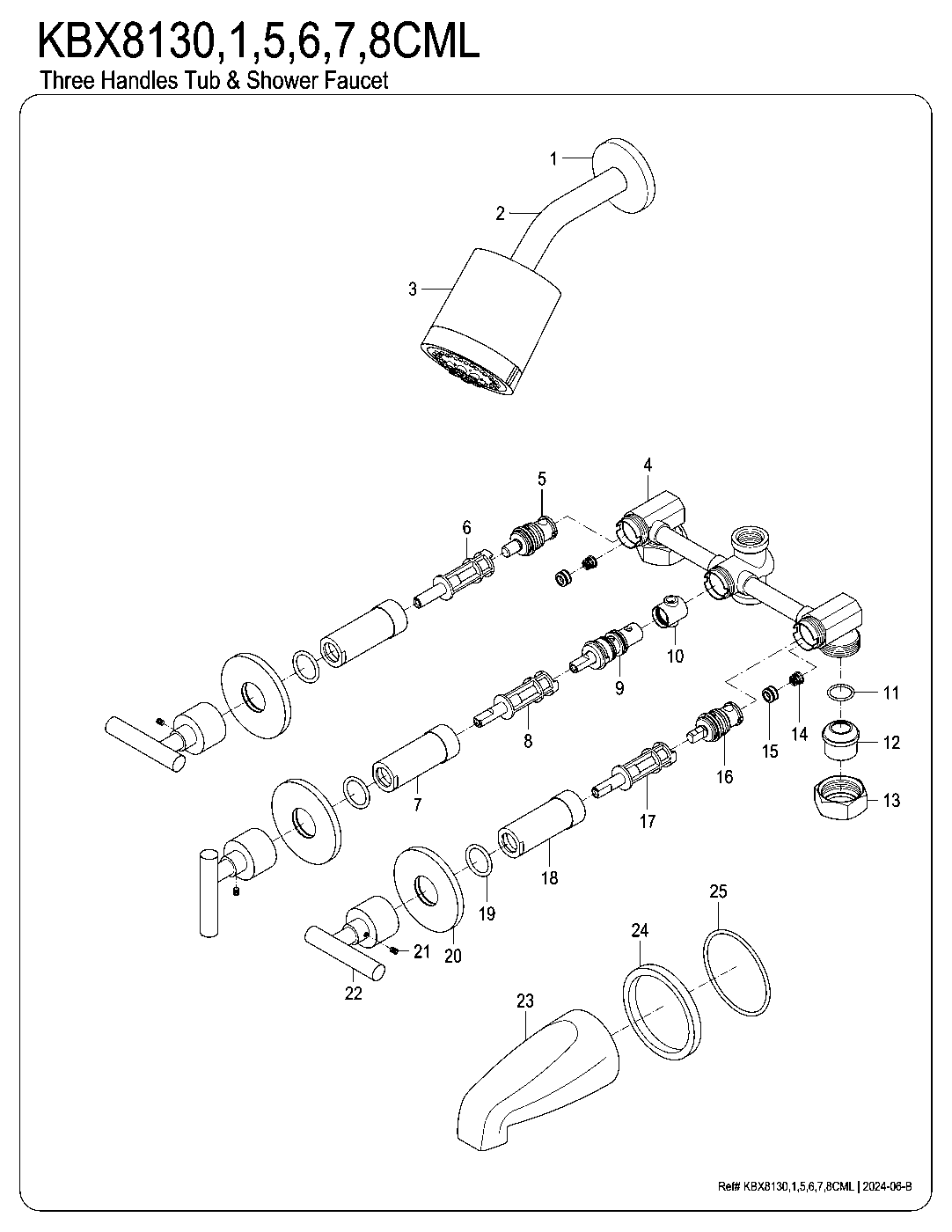

Manhattan KBX8130CML exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramManhattan KBX8130CML parts questions
Which Kingston Brass models does this Manhattan parts diagram cover?
KBX8130CML, KBX8131CML, KBX8135CML, KBX8136CML, KBX8137CML, KBX8138CML. They are the same three-handle 5-hole wall mount tub and shower faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KBX8130CML come in?
Matte Black (KBX8130CML), Polished Chrome (KBX8131CML), Oil Rubbed Bronze (KBX8135CML), Polished Nickel (KBX8136CML), Brushed Brass (KBX8137CML), Brushed Nickel (KBX8138CML).
What replacement handles fit the KBX8130CML?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KBX813xCML diagram?
Kingston numbers the parts on this diagram (22 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Manhattan KBX813xCML in every finish
Manhattan KBX8130CML Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Matte Black$389.97Matte Black
Manhattan KBX8131CML Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Polished Chrome$305.47Polished Chrome
Manhattan KBX8135CML Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Oil Rubbed Bronze$347.72Oil Rubbed Bronze
Manhattan KBX8136CML Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Polished Nickel$389.97Polished Nickel
Manhattan KBX8137CML Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Brushed Brass$389.97Brushed Brass
Manhattan KBX8138CML Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Brushed Nickel$347.72Brushed Nickel
