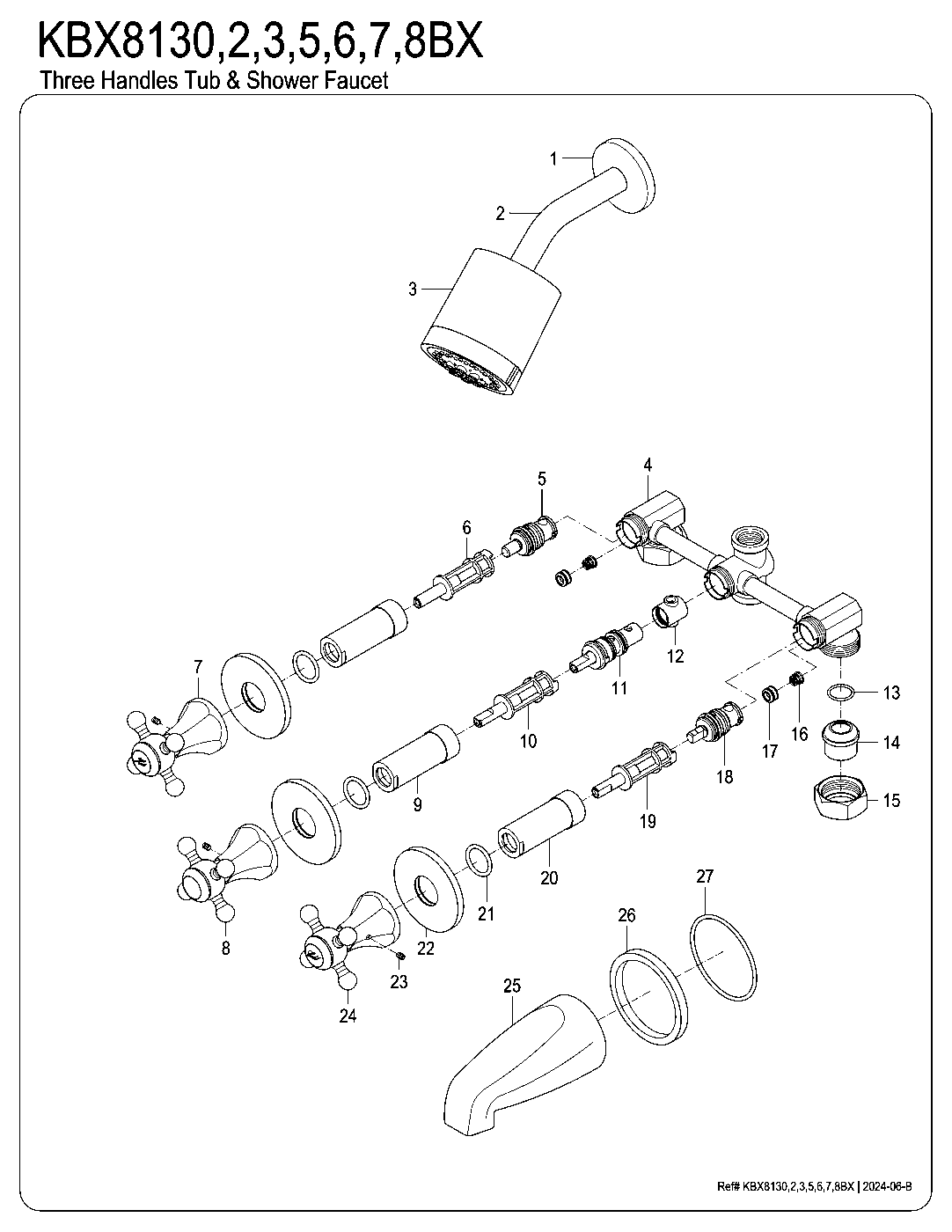

Metropolitan KBX8130BX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramMetropolitan KBX8130BX parts questions
Which Kingston Brass models does this Metropolitan parts diagram cover?
KBX8130BX, KBX8131BX, KBX8132BX, KBX8133BX, KBX8135BX, KBX8136BX, KBX8137BX, KBX8138BX. They are the same three-handle 5-hole wall mount tub and shower faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KBX8130BX come in?
Matte Black (KBX8130BX), Polished Chrome (KBX8131BX), Polished Brass (KBX8132BX), Antique Brass (KBX8133BX), Oil Rubbed Bronze (KBX8135BX), Polished Nickel (KBX8136BX), Brushed Brass (KBX8137BX), Brushed Nickel (KBX8138BX).
What replacement handles fit the KBX8130BX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KBX813xBX diagram?
Kingston numbers the parts on this diagram (24 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Metropolitan KBX813xBX in every finish
Metropolitan KBX8130BX Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Matte Black$289.22Matte Black
Metropolitan KBX8131BX Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Polished Chrome$204.72Polished Chrome
Metropolitan KBX8132BX Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Polished Brass$289.22Polished Brass
Metropolitan KBX8133BX Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Antique Brass$311.97Antique Brass
Metropolitan KBX8135BX Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Oil Rubbed Bronze$263.22Oil Rubbed Bronze
Metropolitan KBX8136BX Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Polished Nickel$289.22Polished Nickel
Metropolitan KBX8137BX Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Brushed Brass$328.22Brushed Brass
Metropolitan KBX8138BX Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Brushed Nickel$263.22Brushed Nickel
