Kingston Brass Concord KB8961DL parts
Two-Handle 3-Hole Deck Mount Widespread Bathroom Faucet with Plastic Pop-Up. One parts diagram covers all 4 finishes of this model.
Replacement handles for the KB896xDL
Configuration required Matched by Kingston model number. Pick the finish that matches your faucet.
Polished Chrome
- KBH8961DLHHot side$22.72
- KBH8961DLCCold side$22.72
Polished Brass
- KBH8962DLHHot side$32.47
- KBH8962DLCCold side$32.47
Oil Rubbed Bronze
- KBH8965DLHHot side$29.22
- KBH8965DLCCold side$29.22
Brushed Nickel
- KBH8968DLHHot side$29.22
- KBH8968DLCCold side$29.22

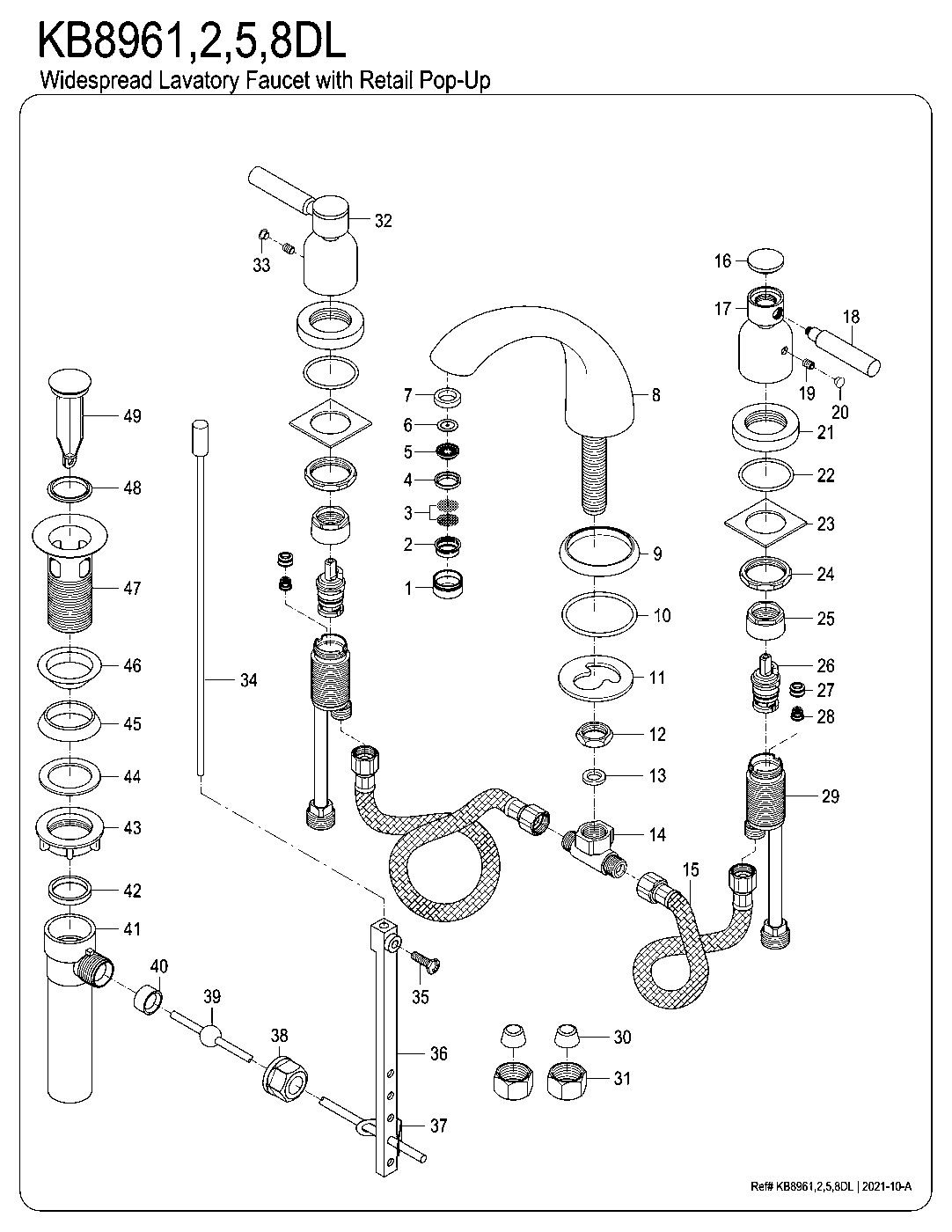

Concord KB8961DL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramConcord KB8961DL parts questions
Which Kingston Brass models does this Concord parts diagram cover?
KB8961DL, KB8962DL, KB8965DL, KB8968DL. They are the same two-handle 3-hole deck mount widespread bathroom faucet with plastic pop-up in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB8961DL come in?
Polished Chrome (KB8961DL), Polished Brass (KB8962DL), Oil Rubbed Bronze (KB8965DL), Brushed Nickel (KB8968DL).
What replacement handles fit the KB8961DL?
Kingston's handle numbers follow the faucet model, for example KBH8961DLH (hot) and KBH8961DLC (cold). We list 8 matching handles in every finish we carry.
How do I order a part from the KB896xDL diagram?
Kingston numbers the parts on this diagram (46 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Concord KB896xDL in every finish
Concord KB8961DL Two-Handle 3-Hole Deck Mount Widespread Bathroom Faucet with Plastic Pop-Up, Polished Chrome$259.97Polished Chrome
Concord KB8962DL Two-Handle 3-Hole Deck Mount Widespread Bathroom Faucet with Plastic Pop-Up, Polished Brass$305.47Polished Brass
Concord KB8965DL Two-Handle 3-Hole Deck Mount Widespread Bathroom Faucet with Plastic Pop-Up, Oil Rubbed Bronze$308.72Oil Rubbed Bronze
Concord KB8968DL Two-Handle 3-Hole Deck Mount Widespread Bathroom Faucet with Plastic Pop-Up, Brushed Nickel$308.72Brushed Nickel
