Kingston Brass Royale KB8631FLTO parts
Single-Handle 2-Hole Wall Mount Tub and Shower Faucet Tub Only. One parts diagram covers all 7 finishes of this model.
Model numbers: KB8631FLTOKB8632FLTOKB8634FLTOKB8635FLTOKB8637FLTOKB8638FLTOKB8639FLTO

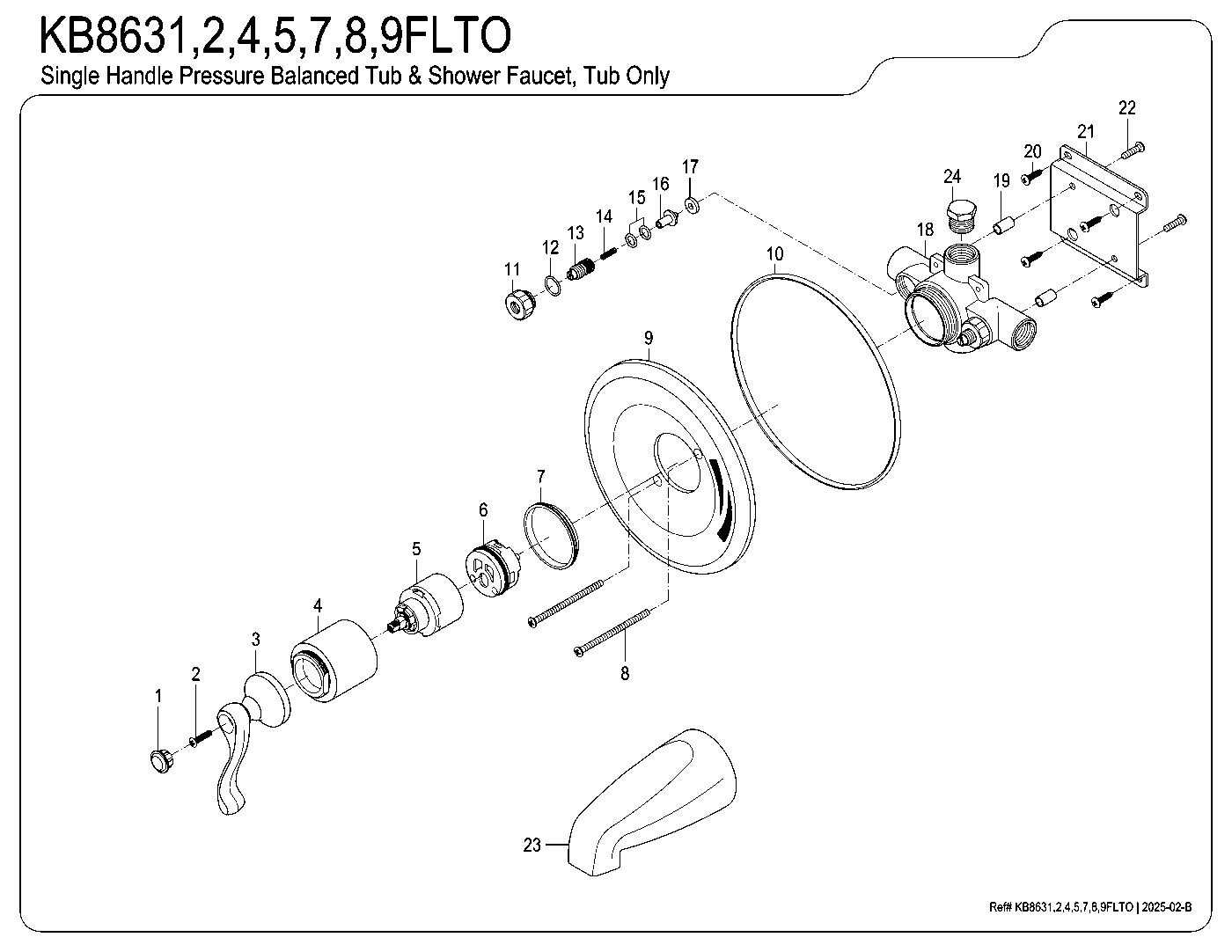

Royale KB8631FLTO exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramRoyale KB8631FLTO parts questions
Which Kingston Brass models does this Royale parts diagram cover?
KB8631FLTO, KB8632FLTO, KB8634FLTO, KB8635FLTO, KB8637FLTO, KB8638FLTO, KB8639FLTO. They are the same single-handle 2-hole wall mount tub and shower faucet tub only in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB8631FLTO come in?
Polished Chrome (KB8631FLTO), Polished Brass (KB8632FLTO), Polished Chrome/Polished Brass (KB8634FLTO), Oil Rubbed Bronze (KB8635FLTO), Brushed Nickel/Polished Chrome (KB8637FLTO), Brushed Nickel (KB8638FLTO), Brushed Nickel/Polished Brass (KB8639FLTO).
What replacement handles fit the KB8631FLTO?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KB863xFLTO diagram?
Kingston numbers the parts on this diagram (22 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Royale KB863xFLTO in every finish
Royale KB8631FLTO Single-Handle 2-Hole Wall Mount Tub and Shower Faucet Tub Only, Polished Chrome$181.97Polished Chrome
Royale KB8632FLTO Single-Handle 2-Hole Wall Mount Tub and Shower Faucet Tub Only, Polished Brass$220.97Polished Brass
Royale KB8634FLTO Single-Handle 2-Hole Wall Mount Tub and Shower Faucet Tub Only, Polished Chrome/Polished Brass$214.47Polished Chrome/Polished Brass
Royale KB8635FLTO Single-Handle 2-Hole Wall Mount Tub and Shower Faucet Tub Only, Oil Rubbed Bronze$214.47Oil Rubbed Bronze
Royale KB8637FLTO Single-Handle 2-Hole Wall Mount Tub and Shower Faucet Tub Only, Brushed Nickel/Polished Chrome$214.47Brushed Nickel/Polished Chrome
Royale KB8638FLTO Single-Handle 2-Hole Wall Mount Tub and Shower Faucet Tub Only, Brushed Nickel$214.47Brushed Nickel
Royale KB8639FLTO Single-Handle 2-Hole Wall Mount Tub and Shower Faucet Tub Only, Brushed Nickel/Polished Brass$214.47Brushed Nickel/Polished Brass
