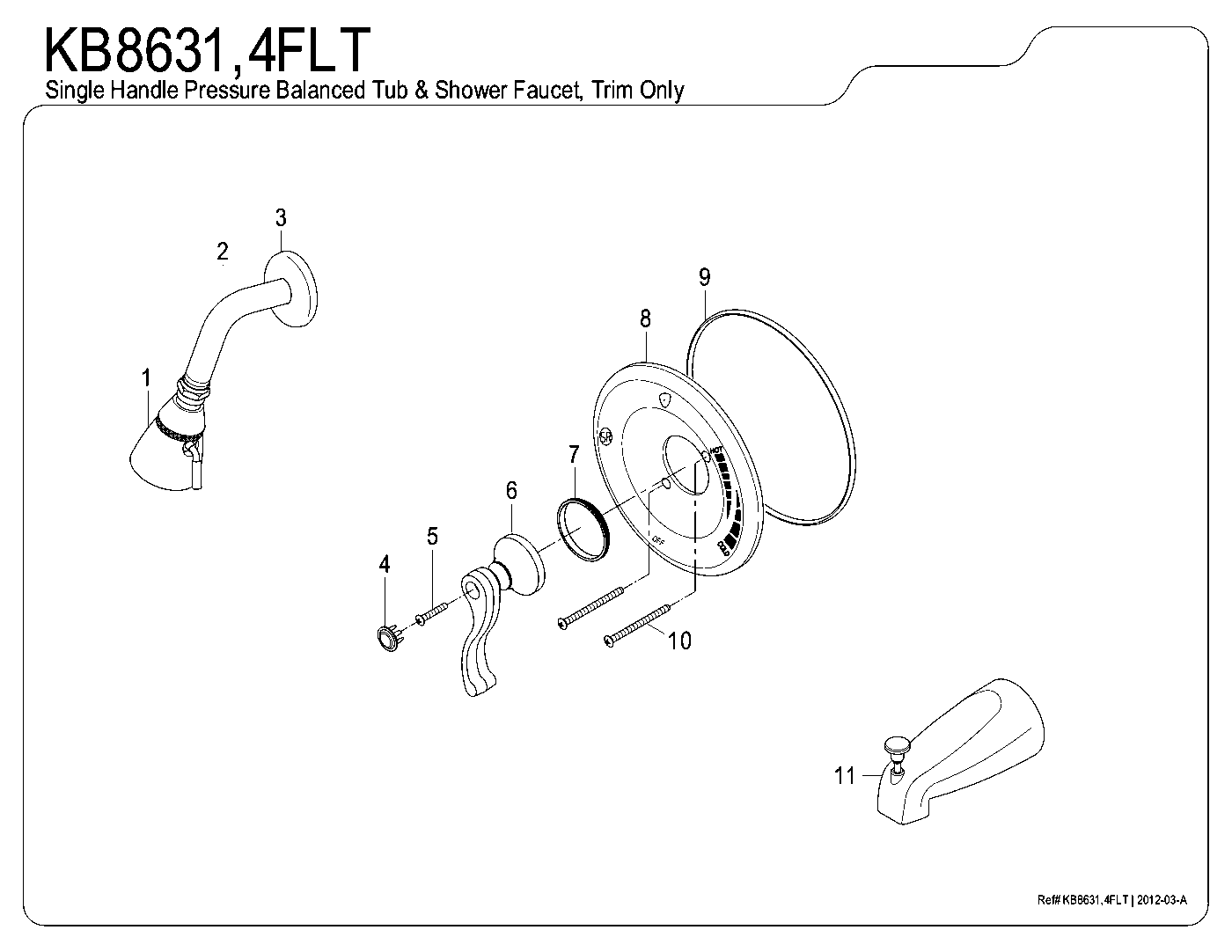

Royale KB8631FLT exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramRoyale KB8631FLT parts questions
Which Kingston Brass models does this Royale parts diagram cover?
KB8631FLT, KB8632FLT, KB8634FLT, KB8635FLT, KB8637FLT, KB8638FLT, KB8639FLT. They are the same single-handle 3-hole wall mount tub and shower faucet trim only in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB8631FLT come in?
Polished Chrome (KB8631FLT), Polished Brass (KB8632FLT), Polished Chrome/Polished Brass (KB8634FLT), Oil Rubbed Bronze (KB8635FLT), Brushed Nickel/Polished Chrome (KB8637FLT), Brushed Nickel (KB8638FLT), Brushed Nickel/Polished Brass (KB8639FLT).
What replacement handles fit the KB8631FLT?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KB863xFLT diagram?
Kingston numbers the parts on this diagram (10 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Royale KB863xFLT in every finish
Royale KB8631FLT Single-Handle 3-Hole Wall Mount Tub and Shower Faucet Trim Only, Polished Chrome$84.47Polished Chrome
Royale KB8632FLT Single-Handle 3-Hole Wall Mount Tub and Shower Faucet Trim Only, Polished Brass$126.72Polished Brass
Royale KB8634FLT Single-Handle 3-Hole Wall Mount Tub and Shower Faucet Trim Only, Polished Chrome/Polished Brass$120.22Polished Chrome/Polished Brass
Royale KB8635FLT Single-Handle 3-Hole Wall Mount Tub and Shower Faucet Trim Only, Oil Rubbed Bronze$120.22Oil Rubbed Bronze
Royale KB8637FLT Single-Handle 3-Hole Wall Mount Tub and Shower Faucet Trim Only, Brushed Nickel/Polished Chrome$120.22Brushed Nickel/Polished Chrome
Royale KB8638FLT Single-Handle 3-Hole Wall Mount Tub and Shower Faucet Trim Only, Brushed Nickel$120.22Brushed Nickel
Royale KB8639FLT Single-Handle 3-Hole Wall Mount Tub and Shower Faucet Trim Only, Brushed Nickel/Polished Brass$120.22Brushed Nickel/Polished Brass
