Kingston Brass NuWave KB8631DFL parts
Single-Handle 3-Hole Wall Mount Tub and Shower Faucet. One parts diagram covers all 4 finishes of this model.

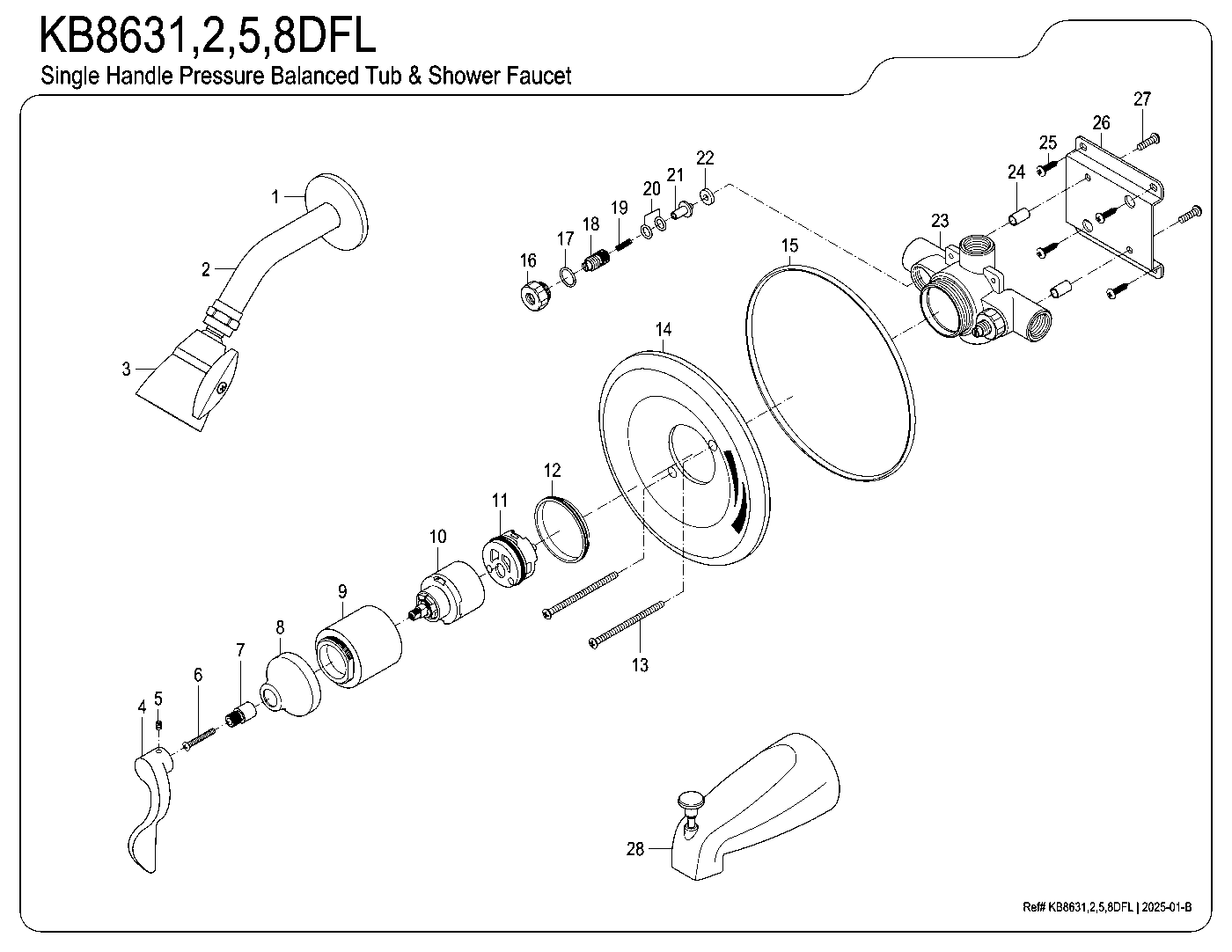

NuWave KB8631DFL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramNuWave KB8631DFL parts questions
Which Kingston Brass models does this NuWave parts diagram cover?
KB8631DFL, KB8632DFL, KB8635DFL, KB8638DFL. They are the same single-handle 3-hole wall mount tub and shower faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB8631DFL come in?
Polished Chrome (KB8631DFL), Polished Brass (KB8632DFL), Oil Rubbed Bronze (KB8635DFL), Brushed Nickel (KB8638DFL).
What replacement handles fit the KB8631DFL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KB863xDFL diagram?
Kingston numbers the parts on this diagram (25 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
NuWave KB863xDFL in every finish
NuWave KB8631DFL Single-Handle 3-Hole Wall Mount Tub and Shower Faucet, Polished Chrome$220.97Polished Chrome
NuWave KB8632DFL Single-Handle 3-Hole Wall Mount Tub and Shower Faucet, Polished Brass$305.47Polished Brass
NuWave KB8635DFL Single-Handle 3-Hole Wall Mount Tub and Shower Faucet, Oil Rubbed Bronze$259.97Oil Rubbed Bronze
NuWave KB8638DFL Single-Handle 3-Hole Wall Mount Tub and Shower Faucet, Brushed Nickel$259.97Brushed Nickel
