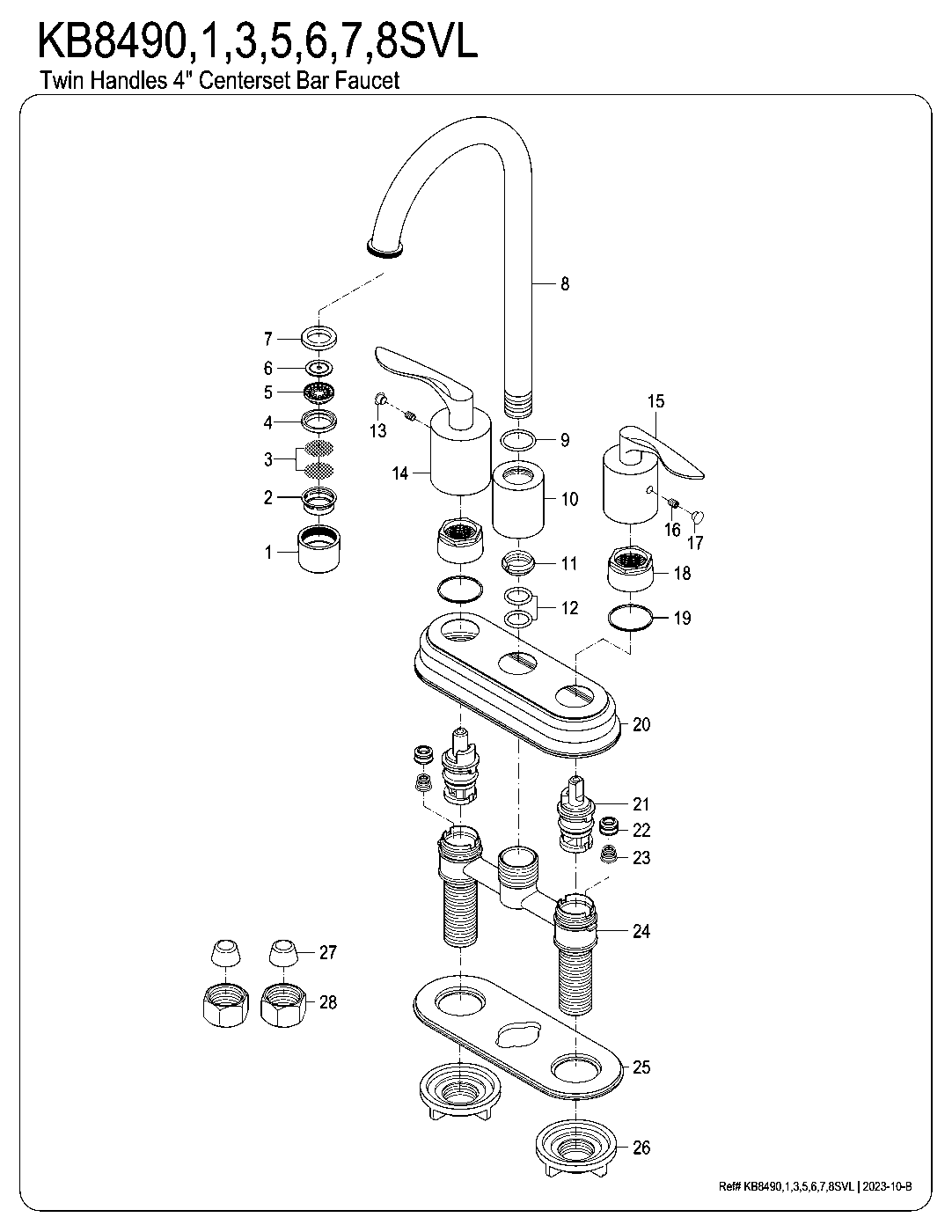

Serena KB8490SVL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramSerena KB8490SVL parts questions
Which Kingston Brass models does this Serena parts diagram cover?
KB8490SVL, KB8491SVL, KB8493SVL, KB8496SVL, KB8497SVL, KB8498SVL. They are the same two-handle 2-hole deck mount bar faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB8490SVL come in?
Matte Black (KB8490SVL), Polished Chrome (KB8491SVL), Antique Brass (KB8493SVL), Polished Nickel (KB8496SVL), Brushed Brass (KB8497SVL), Brushed Nickel (KB8498SVL).
What replacement handles fit the KB8490SVL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KB849xSVL diagram?
Kingston numbers the parts on this diagram (24 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Serena KB849xSVL in every finish
Serena KB8490SVL Two-Handle 2-Hole Deck Mount Bar Faucet, Matte Black$165.72Matte Black
Serena KB8491SVL Two-Handle 2-Hole Deck Mount Bar Faucet, Polished Chrome$129.97Polished Chrome
Serena KB8493SVL Two-Handle 2-Hole Deck Mount Bar Faucet, Antique Brass$165.72Antique Brass
Serena KB8496SVL Two-Handle 2-Hole Deck Mount Bar Faucet, Polished Nickel$178.72Polished Nickel
Serena KB8497SVL Two-Handle 2-Hole Deck Mount Bar Faucet, Brushed Brass$165.72Brushed Brass
Serena KB8498SVL Two-Handle 2-Hole Deck Mount Bar Faucet, Brushed Nickel$149.47Brushed Nickel
