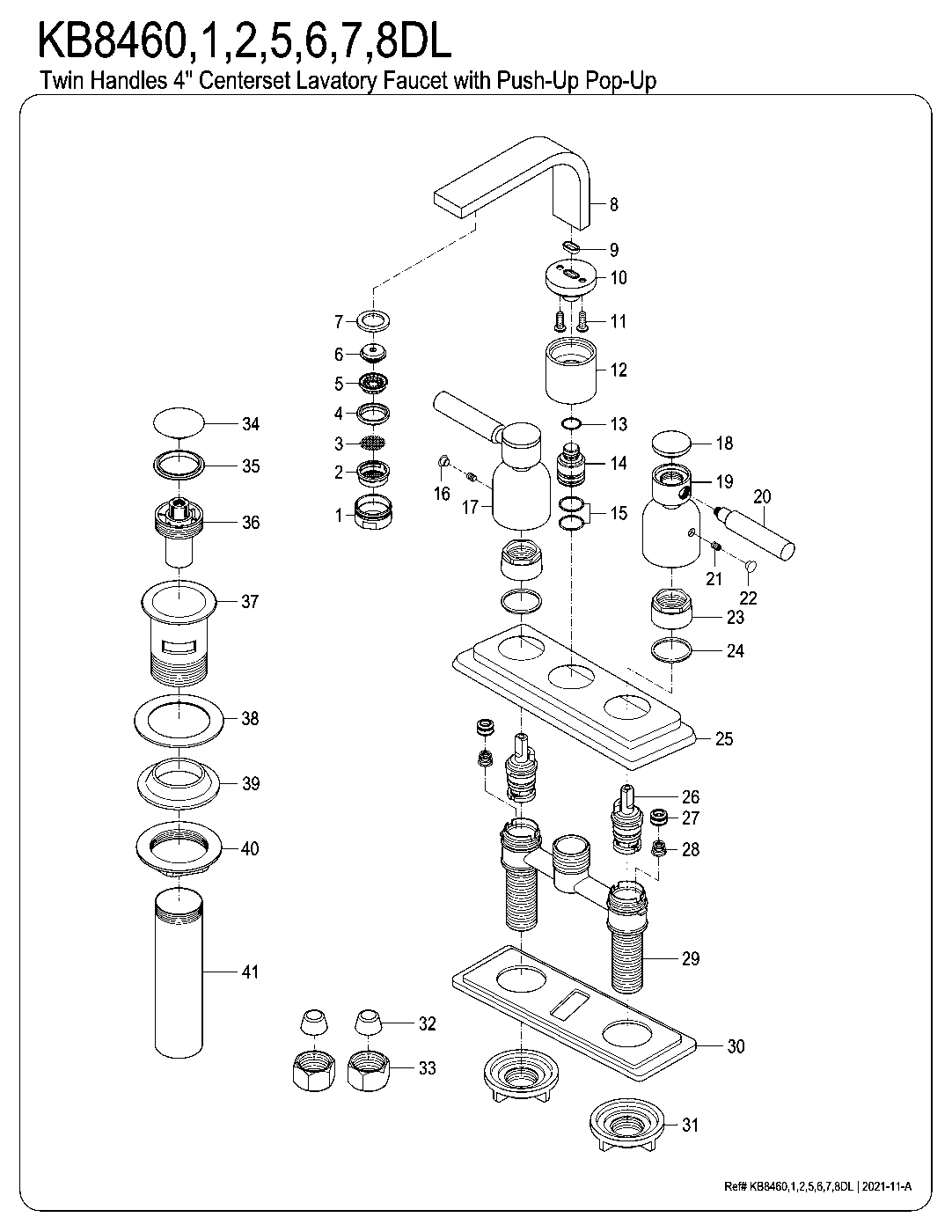

Concord KB8460DL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramConcord KB8460DL parts questions
Which Kingston Brass models does this Concord parts diagram cover?
KB8460DL, KB8462DL, KB8465DL, KB8466DL, KB8467DL, KB8468DL. They are the same two-handle 2-hole deck mount 4" centerset bathroom faucet with push pop-up in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB8460DL come in?
Matte Black (KB8460DL), Polished Brass (KB8462DL), Oil Rubbed Bronze (KB8465DL), Polished Nickel (KB8466DL), Brushed Brass (KB8467DL), Brushed Nickel (KB8468DL).
What replacement handles fit the KB8460DL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KB846xDL diagram?
Kingston numbers the parts on this diagram (39 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Concord KB846xDL in every finish
Concord KB8460DL Two-Handle 2-Hole Deck Mount 4" Centerset Bathroom Faucet with Push Pop-Up, Matte Black$337.97Matte Black
Concord KB8462DL Two-Handle 2-Hole Deck Mount 4" Centerset Bathroom Faucet with Push Pop-Up, Polished Brass$243.72Polished Brass
Concord KB8465DL Two-Handle 2-Hole Deck Mount 4" Centerset Bathroom Faucet with Push Pop-Up, Oil Rubbed Bronze$237.22Oil Rubbed Bronze
Concord KB8466DL Two-Handle 2-Hole Deck Mount 4" Centerset Bathroom Faucet with Push Pop-Up, Polished Nickel$337.97Polished Nickel
Concord KB8467DL Two-Handle 2-Hole Deck Mount 4" Centerset Bathroom Faucet with Push Pop-Up, Brushed Brass$337.97Brushed Brass
Kingston Brass KB8468DL Concord 4 in. Centerset Bathroom Faucet with Push Pop-Up, Brushed Nickel$373.72Brushed Nickel
